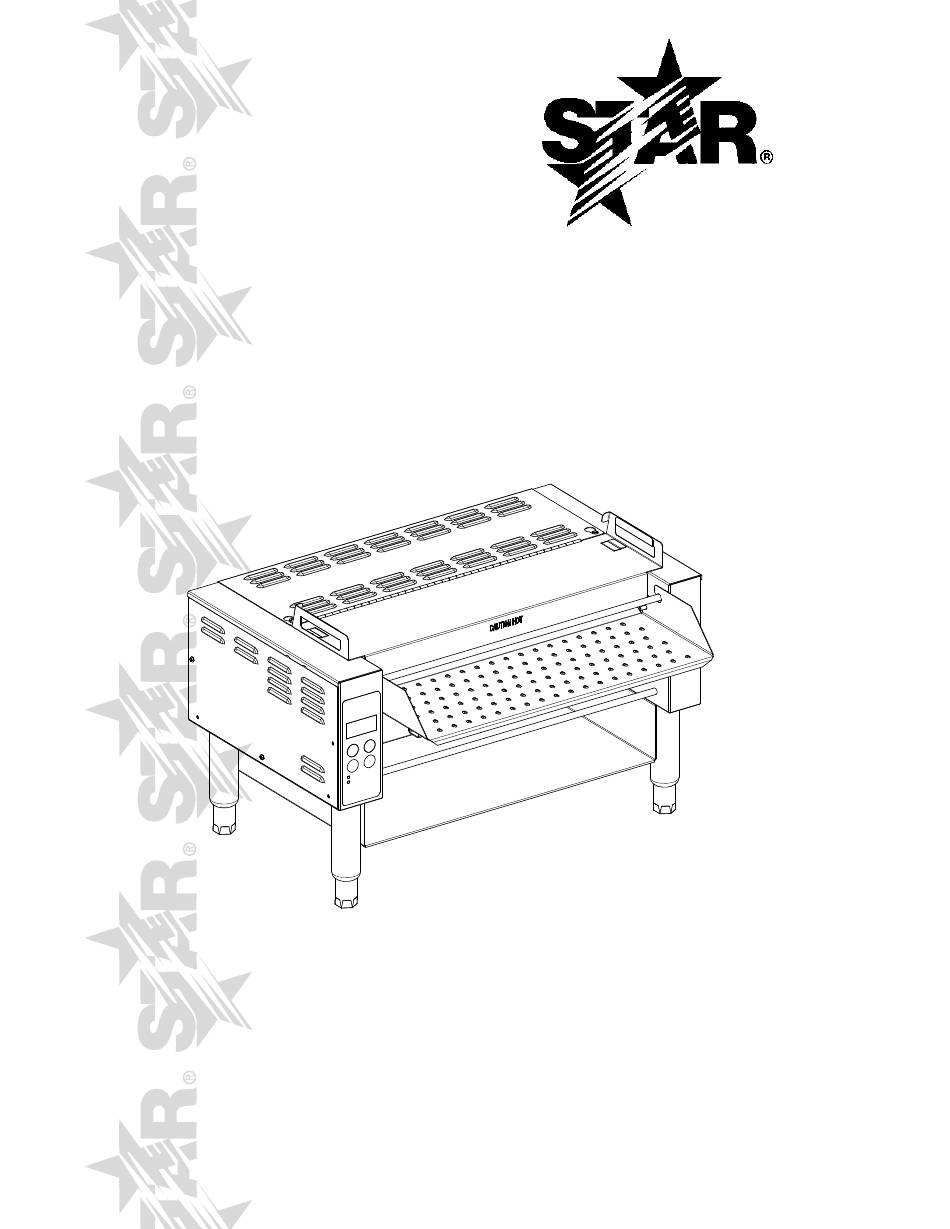

- Page 1 ROLLING TORTILLA WARMER MODEL RTW14M, RTW14E RTW20M, RTW20E Installation and Operation Instructions 2M-Z19213 Rev. A 10/29/2014 IL2880 RTW20E (shown with optional shelf)
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
Amps Watts Powercord Warming Surface Width Hieght Width Depth 120V 10.8 1300 5-15P RTW14E 240V 1426 6-15P 19.6875” 14.13” (35.9 cm) RTW14M 120V 10.4 1246 5-15P 208V 1780 6-15P 16.5” 19.5” RTW20E 240V 2247 6-15P 25.1875” 19.83” (49.8 cm) 208V... -
Page 4: Features & Benifits
FEATURES & BENIFITS Manually Controlled Electronically Controlled IL2881 TOP COVER ASSY Covers the rollers INFEED SHELF ASSY Allows easy and safe feeding of tortillas Keeps unit firmly in place SLIDE ACCESSORY: Removable chute returns product for easy access CONTROL PANEL Turns unit on/off, Temperture settins SHELF ACCESSORY: Shelf to catch tortilla once warmed... -
Page 5: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... - Page 6 ASSEMBLY AND INSTALLATION The unit was shipped fully assembled and ready to plug into a standard outlet specified for its voltage and amp draw. If improper electrical supply is determined, contact a qualified electrician prior to using the unit. Removal and replacement of the power cord and plug voids the warranty.
-
Page 7: Daily Operation
DAILY OPERATION ELECTRONIC CHANGING TEMPERATURE 1. Push and hold the "SET TEMP" button for three seconds. 2. The display will flash the current top temperature setting. ROLLING TORTILLA WARMER 3. Using the ↑ and ↓ adjust the drum heat to desired temperature (increments of 10°) 4. - Page 8 DAILY OPERATION - MANUAL WARMING PROCEDURES 1. Turn the unit "ON" by turning the Drum "ON" 2. Turn the Top Heat "ON" ROLLING TORTILLA WARMER 3. Set Heat to: 500°F 4. For best results, allow the unit to pre-heat for 30 minutes before using. 5.
-
Page 9: Cleaning
CLEANING Preventive maintenance for your unit consists of the following recommended cleaning procedures. To keep your tortilla roller in top operating condition, these steps should be performed daily or weekly as indicated. Daily Cleaning 1. Press and hold the CLEAN button to enter cleaning mode. a. -
Page 10: Maintenance
MAINTENANCE PROCEDURES A. Replacing the Fan Motor 1. DISCONNECT UNIT FROM POWER SOURCE 2. Remove the screws holding the rear panel and lower the panel. 3. Remove the (4) screws holding the fan motor and fan guard. 4. Unplug the power supply cord from the fan motor. 5. -
Page 11: Warranty
LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. -
Page 12: Wiring Diagram
WIRING DIAGRAMS INFRARED ELEMENT: POWER CONTROL DRUM ELEMENT: TEMP CONTROL CONTROL BOARD BACKSIDE COMM 120V 240V 240V YEL(+) RED(-) 120V TACH WIRING DIAGRAM RTW-E 2M-Z18733 NOTES: HOLD BACK-UP NUT WHEN TIGHTENING ELEMENT TERMINALS TO PREVENT TWISTING THE COLD PIN MAKE CERTAIN THAT BULB IS CLAMPED TO ELEMENT BRACKET IR ELEMENT: MAKE CERTAIN THAT CAPILLARY TUBE FIBERGLASS SLEEVE IS IN PLACE ON/OFF... - Page 13 ACCESSORIES RTW14 RTW20 WALL MOUNT WALL MOUNT D6-Z19176 D6-Z19175 SHELF SHELF D6-Z19189 (used with legs) shown D6-Z19105 (used with wall mount) shown D6-Z19190 (used with wall mount) D6-Z19188 (used with legs) SLIDE SLIDE D6-Z18679 D6-Z18886 IL2892...
- Page 14 55 54 15 16 Model: RTW Tortilla Warmer Manual Controls SK2811, Rev. A 10/29/14...
- Page 15 TOP COVER INNER ASSY 20 RTW20 D6-RTW003 IR ELEMENT SHIELD ASSY 2C-1513 SCREW 10-24X1/2 RHP SS 2N-Z18560 RTW ELEMENT 14 IR 120M RTW14M 2N-Z18564 RTW ELEMNT 20IR 208M/240E RTW20M-208 2N-Z18566 RTW ELEMENT 20 IR 240M RTW20M-240 D6-Z18662 IR ELEMENT SUPPORT-LOOP 2C-Z6929 10-24 KEPS NUT S.S.
- Page 16 PARTS LIST October 29, 2014, Rev. A Model: RTW Mechanically Controlled Tortilla Warmer Fig No Part Number Description Application 2N-Z18561 RTW ELEMENT 14 DRUM 120 RTW14 2N-Z18567 RTW ELEMENT 20 DRUM 240 RTW20 D6-Z18670 DRUM BEARING-MAN. D6-Z18661 DRUM ELEMENT SUPPORT 2T-Z15211 T-STAT 550F K-TYPE 2C-Z13630...
- Page 17 15 16 8 19 34 35 38 39 Model: RTW Tortilla Warmer Electronic Controls SK2812, Rev. A 10/29/14...
- Page 18 PARTS LIST October 29, 2014, Rev. A Model: RTW Electronically Controlled Tortilla Warmer Fig No Part Number Description Application 2C-Z10075 SCREW-1/4-20X3/8 SS THS D6-RTW010 TOP COVER ASSY RTW14 RTW14 D6-RTW011 TOP COVER ASSY RTW20 RTW20 D6-RTW007 TOP COVER INNER ASSY 14 RTW14 D6-RTW017 TOP COVER INNER ASSY 20...
- Page 19 PARTS LIST October 29, 2014, Rev. A Model: RTW Electronically Controlled Tortilla Warmer Fig No Part Number Description Application 2C-Z4063 SCREW 10-24X1/2 SS THP D6-Z18666 REAR TORTILLA SLIDE 14 RTW14 D6-Z18889 REAR TORTILLA SLIDE 20 RTW20 2C-Z6925 SCREW #8X1/2 HEXW B SS 2P-Z18423 THRUST WASHER HI-TEMP 2P-Z18417...
- Page 20 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
