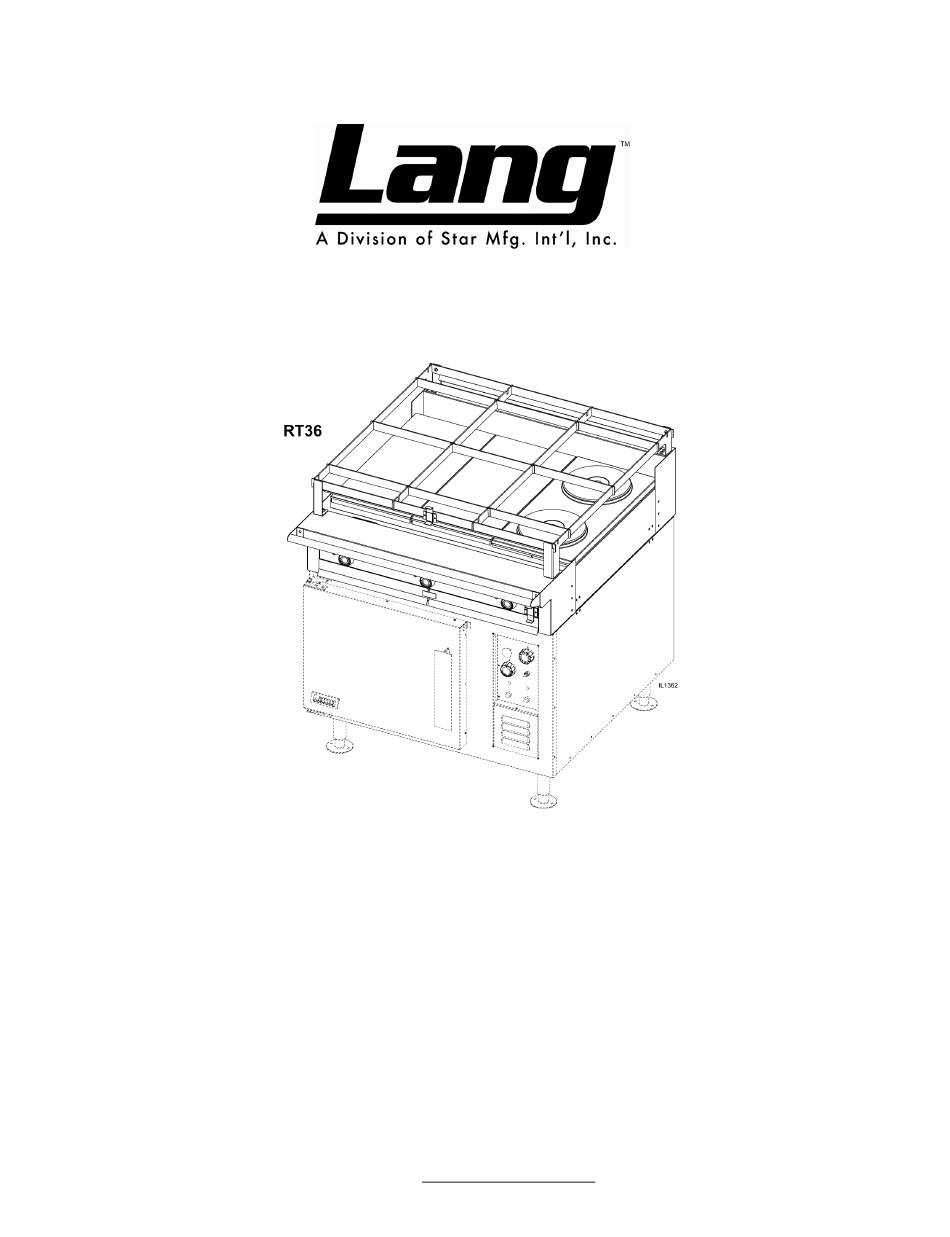

- Page 1 Installation, Operation, and Maintenance Instructions Range Top: RT36A, B, C, D, E, G Star Manufacturing International 10 Sunnen Drive St. Louis, MO.63143-3800 Part Number: 2M-W1091 Ph: 314-781-2777 Fax: 314-781-2714 WWW.STAR-MFG.COM Rev.D June 12, 2008...
-
Page 2: For Your Safety
https://appliancetechmanuals.com THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. - Page 3 https://appliancetechmanuals.com Table of Contents CHAPTER PAGE Table Of Contents ........................3 Equipment Description ........................ 6 Unpacking ........................... 7 Installation ........................... 8 Initial Start-Up ..........................10 Operation ............................ 11 Maintenance & Cleaning Procedures ..................12 Troubleshooting .......................... 13 Wiring Diagram ........................... 14 Exploded View &...
- Page 4 https://appliancetechmanuals.com Warnings THE RANGE WEIGHS 410 LBS. (186 KILOGRAMS). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION.
- Page 5 PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC POWER SUPPLY. CAUTION USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY STAR OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT. THIS WILL VOID ALL WARRANTIES.
-
Page 6: Installation
https://appliancetechmanuals.com Installation Model: RT36 Electric Range Top Exterior The range dimensions are 8” (20.3 cm) high, 38” (96.5cm) deep, and 36” (91.5cm) wide. The sides, bottom, and rear wall are constructed of stainless steel. The range surface can come in 5 different configurations. Controls The RT36 Series Range is available with various controls depending upon model number. -
Page 7: Installing The Legs
15 days of delivery. Keep all packing material for inspection. Do not return damaged merchandise to STAR Manufacturing Company. File your claim with the carrier. Location Prior to un-crating, move the range as near its intended location as practical. - Page 8 https://appliancetechmanuals.com Installation DANGER THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH. WARNING INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
-
Page 9: Electrical Specifications
https://appliancetechmanuals.com Installation Electrical Connection The following table and illustrations provide the voltage and kilowatts necessary to operate the range and oven. Electrical Specifications Three Phase Single Phase Total Range style 208 Volt 240 Volt 480 Volt 208 V 240 V k.W. - Page 10 https://appliancetechmanuals.com Installation Hot Plates To "dry out" the hot plate, set the thermostat dial at 250°F and turn on the power switch. Allow unit to cycle at least 15 minutes at this heat level. Reset the thermostat to 350°F allowing the same time. Then reset the thermostat to 450°F allowing the same time.
-
Page 11: Range Top
https://appliancetechmanuals.com Installation ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM COMBUSTIBLE MATERIALS. CAUTION KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS. RANGE TOP Consists of the various top arrangements, depending on specific model purchased: 12"... -
Page 12: Maintenance And Cleaning
https://appliancetechmanuals.com Maintenance and Cleaning Cleaning WARNING KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. CAUTION MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. -
Page 13: Troubleshooting
Call factory or consult service manual for Failed 6-heat switch proper tests USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY STAR OR THEIR AUTHORIZED CAUTION DISTRIBUTORS CAN CAUSE BODILY INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND... - Page 14 https://appliancetechmanuals.com Range Top Wiring GRIDDLE HOT TOP FRENCH PLATE 1. Griddle and Top Plate Element 2. Pilot Light 3. 450°F Griddle thermostat 4. Circuit breakers 5. French plate 6. 6-Heat switch 7. Hot Top 8. 850°F Hot Top thermostat.
- Page 15 https://appliancetechmanuals.com...
- Page 16 https://appliancetechmanuals.com Old Style Sea Rails Marine Application Model: SK2265 Rev. A 6/12/08 36" Range Top...
-
Page 17: Parts List
ALL RT36D; ALL RT36B; RT36C-208 V AND VM, 240 V AND VM IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company... - Page 18 ELMNT T/P 380V O/S 2KW RT36G-380VM IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company...
- Page 19 RF36E-208V & VM, 240V & VM IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company...
- Page 20 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
