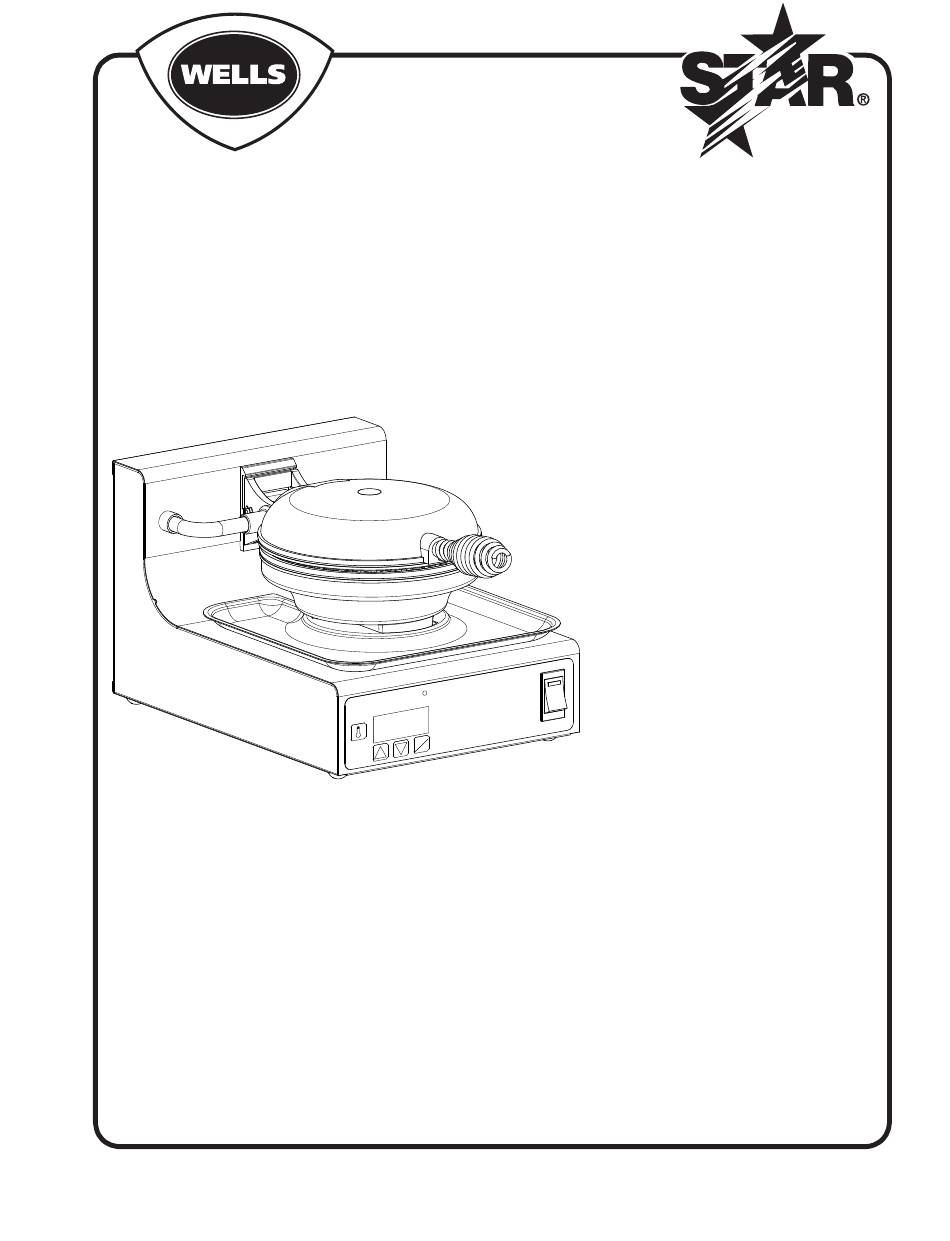

Model WB1E or SWBS
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your dealer if you have any questions
concerning installation, operation or maintenance of this equipment.
2M-Z20954
p/n
Rev. A
STAR HOLDINGS INTERNATIONAL INC.
265 Hobson St. Smithville, TN 37166
Telephone: 800-264-7827
H E A T
O N
R A T U R
E
E M P E
T IM E /T
ST AR T
-
ST OP
+
OWNERS MANUAL
WAFFLE
BAKER
MODELS
Wells
WB1E SWBS
WB2E SWBD
O N
O F F
Includes
IL3081
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
Star
06/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star SWBS
Summary of Contents for Star SWBS
- Page 1 ST AR T IL3081 ST OP INSTALLATION USE & CARE Model WB1E or SWBS EXPLODED VIEW PARTS LIST WIRING DIAGRAM IMPORTANT: DO NOT DISCARD THIS MANUAL This manual is considered to be part of the appliance and is to be given to the OWNER or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of this appliance.
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star Holdings reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS VOLTAGE POWER SUPPLY STAR WELLS STYLE WATTS AMPS 1ø CORD 120V 900W NEMA 5-15P Single SWBS WB1E Waffle 208/240V 676/900W 3.3/3.8 NEMA 6-15P Baker 220/240 900W CE VII 436U 120V 1800W NEMA 5-20P... -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS Open Coil Handle Cast Aluminum Grids Drip Tray Lighted On/Off Rocker Switch H E A T R A T U R E M P E T IM E /T O F F ST AR T ST O P Non-Skid Feet Heat On... -
Page 5: Precautions And General Information
PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with cooking grid surface will cause severe burns. Use the handle to lift the grid. Avoid contact with grid surfaces. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. -
Page 6: Installation
INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all protective materials until you have plastic film, packing materials and accessories from the appliance inspected the appliance for before connecting performing any installation procedure. -
Page 7: Operation
OPERATION SEASONING THE GRIDS CAUTION: Lightly brush on commercial waffle baker relaease agent on both upper HOT SURFACE and lower grid. Carefully close the upper grid. Turn the power switch on, then allow the Exposed surfaces can be hot waffle baker to pre-heat for at least 20 minutes. to the touch and may cause burns. -
Page 8: Making Waffles
OPERATION (ELECTRONIC UNITS) WB1E & WB2E CAUTION: MAKING WAFFLES HOT SURFACE Turn the unit on and allow to pre-heat for 15 minutes with the grids Exposed surfaces can be hot closed. Once the baker has reached proper temperature you can to the touch and may cause proceed as follows: burns. - Page 9 CLEANING INSTRUCTIONS PREPARATION CAUTION: BURN HAZARD Unplug appliance from electric power Allow appliance to cool completely. Allow waffle baker to cool FREQUENCY completely before cleaning. Daily TOOLS IMPORTANT: Plastic Scouring Pad, Soft-Bristled Fiber Brush DO NOT spill or pour water into controls.
- Page 10 CLEANING INSTRUCTIONS (continued) PREPARATION CAUTION: CHEMICAL Unplug appliance from electric power BURN HAZARD Allow appliance to cool completely. Waffle baker cleaner may FREQUENCY cause serious burns on contact. As needed Wear protective clothing and TOOLS safety glasses when using waffle baker cleaner. Commercial Carbon Cleaner Carefully read and follow 1”...
-
Page 11: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY Power cord not plugged in, or circuit Establish main power. Be sure appliance is plugged in breaker tripped Will not heat Power switch off Turn power switch on Internal component damage Contact an authorized Wells Service Agency for repairs. Excessive carbonization of grids Decarbonize grids Does not maintain... -
Page 12: Warranty
Star and limitations defined in this warranty, will at Star’s is not liable for any unit which has discretion have the parts replaced or repaired by Star or been mishandled, abused, misapplied, subjected to a Star-authorized service agency. - Page 13 NOTES...
- Page 14 EXPLODED VIEW : WB1E ELECTRONIC WAFFLE BAKER Model: SWBS & WB1E, Electronic Waffle Baker SK2935 Rev. - 11/30/15...
- Page 15 PARTS LIST: WB1E ELECTRONIC WAFFLE BAKER SWBS, SWBD & WB1E, WB2E, ELECTRONIC WAFFLE BAKER SWBS, SWBD, Fig No Part Number Description Application WB1E WB2E B8-35552 CONDUIT SOLID 2F-30329 CAST COND MACH&PLT REC 33 2C-30222 RETAINER E RING .179 ID 2F-30322...
- Page 16 WIRING DIAGRAM: SINGLE 120V UPPER HEATING ELEMENT SWITCH 10VAC TEMP. PROBE TRANSFORMER LOWER TERMINAL HEATING BLOCK **LOWER GROUND ELEMENT WIRE NOT USED ON WB1E WHITE BLACK GREEN 5-15P-PLUG WIRE DIAGRAM, 120V MODELS: WB1C, SINGLE WAFFLE BAKER- CANTILEVER DESIGN WB1E, SINGLE STD. WAFFLE BAKER- ELECTRONIC CONTROLS WELLS MANUFACTURING INC.
- Page 17 WIRING DIAGRAM: SINGLE 208/240V UPPER HEATING ELEMENT COUPLER SWITCH 10VAC TEMP. PROBE 208/240V TRANSFORMER TERMINAL LOWER HEATING BLOCK **LOWER GROUND ELEMENT WIRE NOT USED ON WB1E WHITE VOLTS NOMINAL AMPS GREEN WB-1 BLACK POWER CORD WIRE DIAGRAM, 208/240V 220/240V MODELS: WB1C, SINGLE WAFFLE BAKER- CANTILEVER DESIGN - ELECTRONIC CONTROLS - 208/240V, 220/240V WB1E, SINGLE STD.
- Page 18 WIRING DIAGRAM: DOUBLE 120V...
- Page 19 WIRING DIAGRAM: DOUBLE 208/240V...
- Page 20 Commercial Food Equipment Service Association Star Holdings International proudly supports CFESA Commercial Food Equipment Service Association STAR HOLDINGS INTERNATIONAL INC. 265 Hobson St. Smithville, TN 37166 Telephone: 800-264-7827 www.wells-mfg.com www.star-mfg.com...
