ASA104 Instructions Page 6

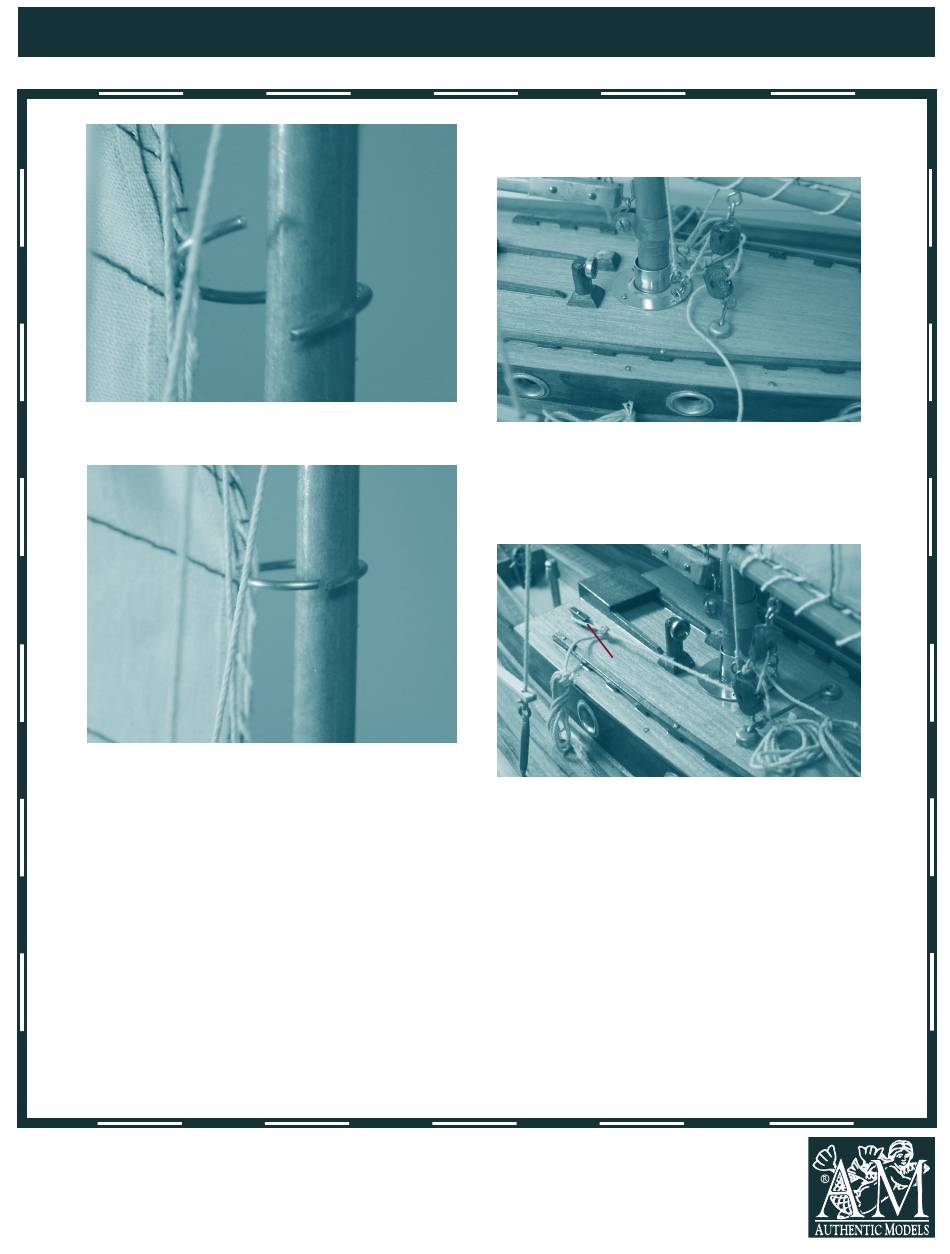

Twist open the mast rings. Place around the mast
pole.
Twist mast ring closed again.
Fore sail:
Repeat steps 1-4 the same as the Main Mast.
The stern end of the fore sail boom is connected
by a block and tackle. Hook #1 connects to the
eye on the starboard side of the main mast's
maststep. Hook #2 (on the pulley) connects to
the brass traveler bar.
Secure the line over the bollard on the aft end of
the cabin.
The Netherlands
Authentic Models BV
Ambachtsweg 37
NL-3899 AM
Zeewolde
2
1
Bollard
