Fore Mast: Place the fore mast (shorter of the
two) in the maststep in the fore deck. Connect
the shorter shrouds to the to the front fore mast
shroud eyes on the deck. The longer shrouds pass
through the guide eyelets at the end of the spreader
then down to the aft eyes in the fore mast shroud
eye set.

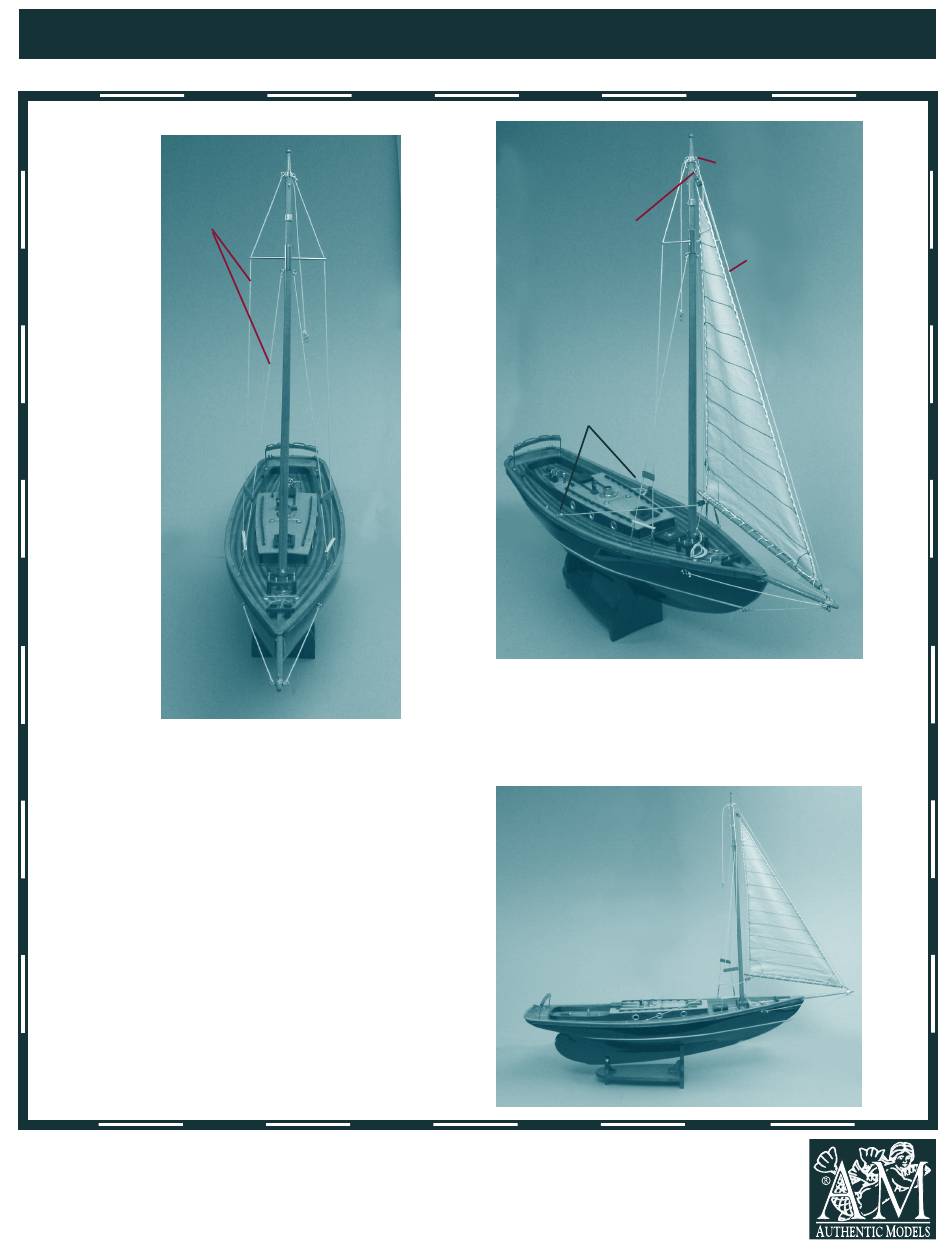

1. Hook Jib Sail
block to 2nd eye
4. Attach Jib Sail
running lines to
Main Mast
shroud eyes
Jib Sail:
1. Hook Jib Sail block to second eye on fore mast
2. Hook Jib Sail and forestay line to end of bowsprit
3. Connect forestay to top eye on fore mast
4. Connect Jib Sail running lines to main sail shroud
eyes.
The Netherlands
Authentic Models BV
Ambachtsweg 37
NL-3899 AM
Zeewolde
3. Forestay line to
top eye
Forestay
2. Hook Jib Sail and
Forestay line to end of
bowsprit
