Pentair Berkeley 5PNP15H Owner's Manual

Pentair Berkeley 5PNP15H Owner's Manual

Shallow well water system
Hide thumbs

Advertisement

Quick Links

Download this manual

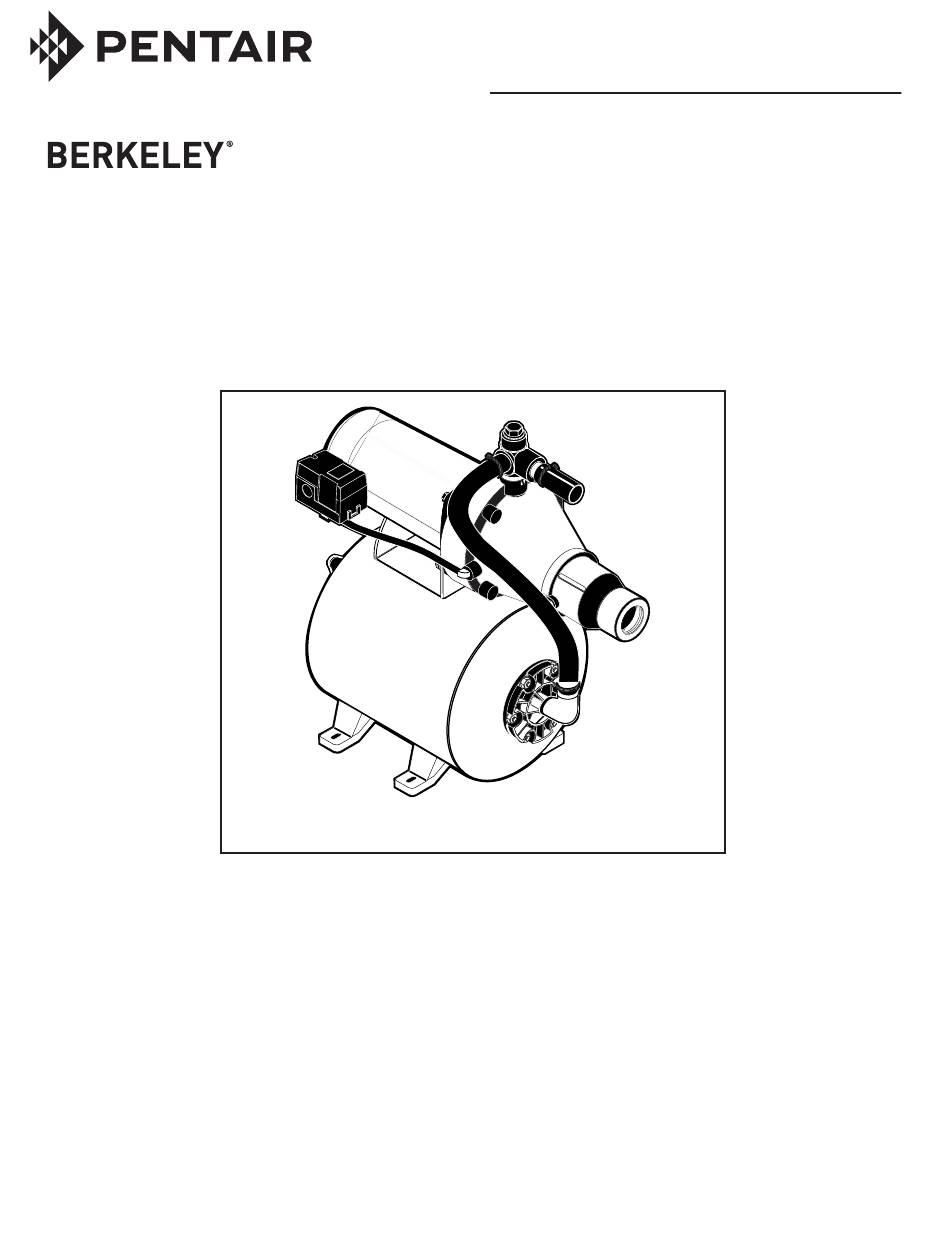

OWNER'S MANUAL
Shallow Well Water System
3869 0101
5PNP15H
Installation/Operation/Parts
For further operating, installation, or maintenance assistance:
Call 1-888-782-7483
© 2014
BE586 (02/28/14)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Berkeley 5PNP15H and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair Berkeley 5PNP15H

Summary of Contents for Pentair Berkeley 5PNP15H

  • Page 1 OWNER’S MANUAL Shallow Well Water System 3869 0101 5PNP15H Installation/Operation/Parts For further operating, installation, or maintenance assistance: Call 1-888-782-7483 © 2014 BE586 (02/28/14)
  • Page 2 Safety Safety INTRODUCTION To avoid serious injury and equipment Please read our instructions before installing and using damage, limit system pressure to 75 pounds per your Shallow Well Water System. This will help you square inch (PSI) or below at all times. Over- obtain the full benefits of the quality and convenience pressure can cause tank blowup;...
  • Page 3 Safety Table of Contents Page General Safety .....................2 Warranty......................3 Installation ......................4­6 Electrical ......................6­7 Operation ......................7 Maintenance ....................8­12 Repair Parts ....................13­14 Troubleshooting ....................15 ATTACH ORIGINAL RECEIPT HERE FOR WARRANTY CONSIDERATION. Limited Warranty BERKELEY warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below.
  • Page 4 Safety Installation MAJOR COMPONENTS When using a foot valve, a priming tee and plug as shown in Figure 1, are recommended. AND WHAT THEY DO Pump Priming Plug Impeller and Jet To Household Water System Impeller turns with motor shaft, causing water to fly out from its rim by centrifugal force.
  • Page 5 Safety Installation For a pump at sea level mounted directly over the well, Horizontal Piping from Well to Pump be sure the total lift from the pumping water level to the When the pump is offset more than 25 feet from the pump does not exceed 25 feet.
  • Page 6 Installation / Electrical To Check Tank Air Charge the turn on pressure of the pressure switch (30 PSI). 3. If the air pressure is below 30 PSI, add air to the tank. If drawdown (amount of water available per cycle) Use an air compressor or a portable air storage tank.
  • Page 7 Safety Preparing to Start the Pump – Deep Well Electrical / Operation OPERATION Hazardous voltage. Can shock, burn, or kill. Connect ground wire before connecting power sup- Priming the Pump ply wires. Use the wire size (including the ground wire) NOTICE: To prevent damage to internal parts, do not specified in the wiring chart.
  • Page 8 Safety Maintenance Lubrication 6. Wherever convenient, hold bag with pliers and cut with single­edge razor blade or sharp knife. Bag will It is not necessary to lubricate the pump or its motor. The not come out in one piece. Continue pulling and cut­ motor bearings are lubricated for life.
  • Page 9 Maintenance 6. Pull valve through hole with pliers or a valve tool Removing Motor for Service and (available at your local filling station or Automotive Replacing Shaft Seal Center). If it is necessary to separate motor and seal plate, always 7.
  • Page 10 Maintenance 4. Place seal plate face down on flat surface and tap out ceramic seat. NOTICE: Do not force out copper insert. If it has moved, leakage will occur. See section on installing copper insert on Page 11. 5. Clean seal cavity. 6.
  • Page 11 Maintenance c. Both mounting screws must engage screw 1. Remove copper insert as shown in Figure 12. do not holes in seal plate. See Figure 10. deform. d. Be sure rubber pad (Figure 10; Key No. 8, Page 13) stays in place on top of diffuser. Figure 12 2.
  • Page 12 Maintenance HELPFUL HINTS Cleaning Impeller 1. Follow steps 1A through 1D under “Disassembly How to Handle a Gaseous Well and Assembly of Pump” on Page 9. In some areas well water contains gases which must be 2. Remove diffuser and impeller from pump per allowed to escape before the water is used.
  • Page 13 Repair Parts Port Repair Parts 2305 0296 BE Description Qty. Part Number Motor ­ 115/230V A100CLL Water Slinger C69­2 Seal Plate Assembly N103­12PSS Seal Plate Insert J3­2SS O­Ring U9­390 Shaft Seal U109­6A Impeller J105­40PF Rubber Pad C35­41 Diffuser N1­28P Capscrew #10­16 Hex Head U30­738SS 11** Pump Body Assembly...
  • Page 14 Repair Parts 2433 0596 BE Repair Parts - Tank Only Description Qty. Part Number Air Valve Cover U31­380P Air Valve and Cap U212­160 Replacement Tank PS15H­S05 Inlet Flange U31­442P Nut, 5/16­18 Hex U36­202BT Elbow, 3/4” MPT x 1” Insert U78­770P Clamp U19­55SS Hose ­...
  • Page 15 Troubleshooting Troubleshooting TROUBLE POSSIBLE CAUSES REMEDIES Motor will not run 1. Disconnect switch is off 1. Be sure switch is on 2. Fuse is blown 2. Replace fuse 3. Starting switch is defective 3. Replace starting switch 4. Wires at motor are loose, 4.
