Dynascan PMR-446 Instruction Manual

Handheld transceiver
Hide thumbs Also See for PMR-446:
Table of Contents

Advertisement

Quick Links

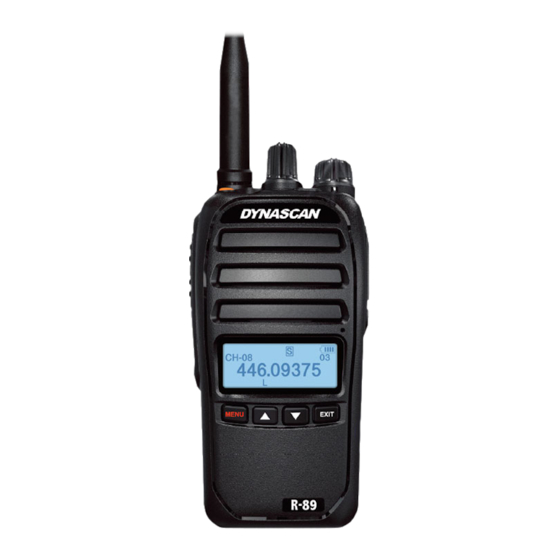

PMR-446 HANDHELD
TRANSCEIVER
INSTRUCTION
MANUAL
D
Y
N
A
S
C
A
N
D
Y
N
A
S
C
A
N
R
-
8
9
R
-
8
9
License-free PMR-446 two-way radio for
instant free communication!
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMR-446 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynascan PMR-446

Summary of Contents for Dynascan PMR-446

  • Page 1 PMR-446 HANDHELD TRANSCEIVER INSTRUCTION MANUAL License-free PMR-446 two-way radio for instant free communication! English...

  • Page 2: Table Of Contents

    INDEX Page no. LEGAL INFORMATION INTRODUCTION PRECAUTIONS UNPACKING AND CHECKING THE EQUIPMENT CHARACTERISTICS TECHNICAL SPECIFICATIONS LCD DISPLAY GETTING ACQUAINTED BASIC OPERATIONS 10.- SETTINGS MENU 11.- CTCSS TABLE 12.- DCS TABLE 13.- OPTIONAL ACCESORIES 14.- TROUBLESHOOTING 15.- DECLARATION OF CONFORMITY 16.- GUARANTEE English - 2 -...

  • Page 3: Legal Information

    1.- LEGAL INFORMATION: This transceiver is designed for free communication, so it is not necessary to purchase administrative authorization or licences in order to use it and it is intended for use in the following Member States of the European Union: This equipment complies whit Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

  • Page 4: Introduction

    2.- INTRODUCTION: Thank you for buying this DYNASCAN PMR-446 transceiver. It is a transceiver of latest design, multi-functionality, stable performance and easy operation. You will be pleased with the high quality and powerful functions. Read this manual completely before using the transceiver.

  • Page 5: 4- Unpacking And Checking The Equipment

    Carefully unpack the transceiver. We suggest that you identify the items on the following table before discarding the package material. If any item is missing or have been damaged, contact your salesperson immediately. PMR-446 handheld Li-ion battery pack Intelligent charger...

  • Page 6: Technical Specifications

    6.- TECHNICAL SPECIFICATIONS: General 446.00625 MHz – 446.09375 MHz Frequency range Channels number Up to 256 (8 x 32) Modulation 11K0F3E Working temperature -20 ºC to +55 ºC Antenna type Integral Power supply 7.4 V Li-Ion battery pack Weight 340 g. Dimensions 132 x 62 x 37 mm.

  • Page 7: Lcd Display

    7.- LCD DISPLAY: Note: - It is possible that some icons are not available according to the programming of the transceiver. 8.- GETTING ACQUAINTED: English - 7 -...

  • Page 8: Basic Operations

    9.- BASIC OPERATIONS: Turn on / off the transceiver and volume adjusts: 1. Turn the power switch / volume control knob clockwise to turn on the transceiver. Adjust the volume by rotating this same button. Turn anticlockwise to turn off the transceiver. 2.

  • Page 9: Settings Menu

    Single tone pulse: Press [PTT] + [PF1] to transmit the frequency with the preprogrammed single tone pulse. 10.- SETTINGS MENU: Press the [MENU] key to enter the settings menu, press the [UP] / [DOWN] key to select the desired parameter, press the [ENTER] key to save, and press the [MENU] key to return to the menu.
  • Page 10 Menu 5: Transmit overtime timer (TOT): Time out timer refers to set the limited time each transmitting. It may automatically stop transmitting if reach the limited time, regardless you press the [PTT], the transceiver may issue the “time out timer” at the same time. Settings: 15 to 600 seconds, step 15 seconds.
  • Page 11 Default: OFF. Menu 12: Auto lockout (AUTO LOCK): The keypad will be locked after 15 seconds. Settings: ON/OFF. Default: OFF. Notes: - Press and hold the [EXIT] key for 2 seconds to unlock the keyboard. - All keys except the [PTT] and the channel selector are locked in the lockout mode.
  • Page 12 The transceiver will return to the appointed channel after transmitting if there is no operation in 10 seconds. Menu 18: CTCSS/DCS scan (QTSEEK)): This function allows saved the detected CTCSS/DCS tones during scanning. Settings: RX QT, TX QT, RX/TX QT. Default: RX QT.
  • Page 13 Menu 22: Compander function (COMPANDER): It helps to decrease the background noise especially in large distance communications. Settings: ON/OFF. Default: OFF. Menu 23: Scrambler function (SCRAMBLER): It allows keeping the communication confidential if necessary. Settings: ON/OFF. Default: OFF. Menu 24: Channel selection in dual watch (DW-CH): It allows selecting the channels for dual watch.

  • Page 14: Ctcss Table

    Menu 30: Reset (RESET): It allows you to reset the parameters on the transceiver to the factory default. Settings: VFO/ALL. Default: VFO. VFO: All menus are restored to the factory settings. ALL: All parameters and menus are restored to the factory settings. 11.- CTCSS TABLE: 12.- DCS TABLE: English - 14 -...

  • Page 15: Optional Accesories

    13.- OPTIONAL ACCESORIES: Battery pack eliminator Car charger Speaker/Mic Programming cable Headset English - 15 -...

  • Page 16: Troubleshooting

    14.- TROUBLESHOOTING: Please check the transceiver according to the trouble shooting in the following table before recognizing the transceiver as the fault. Reset the transceiver if the following problems happen often. Problem Possible solutions >> Replace the battery pack with a fully charged one or recharge Transceiver cannot the battery.
