Summary of Contents for GreenWorks Optimow 10

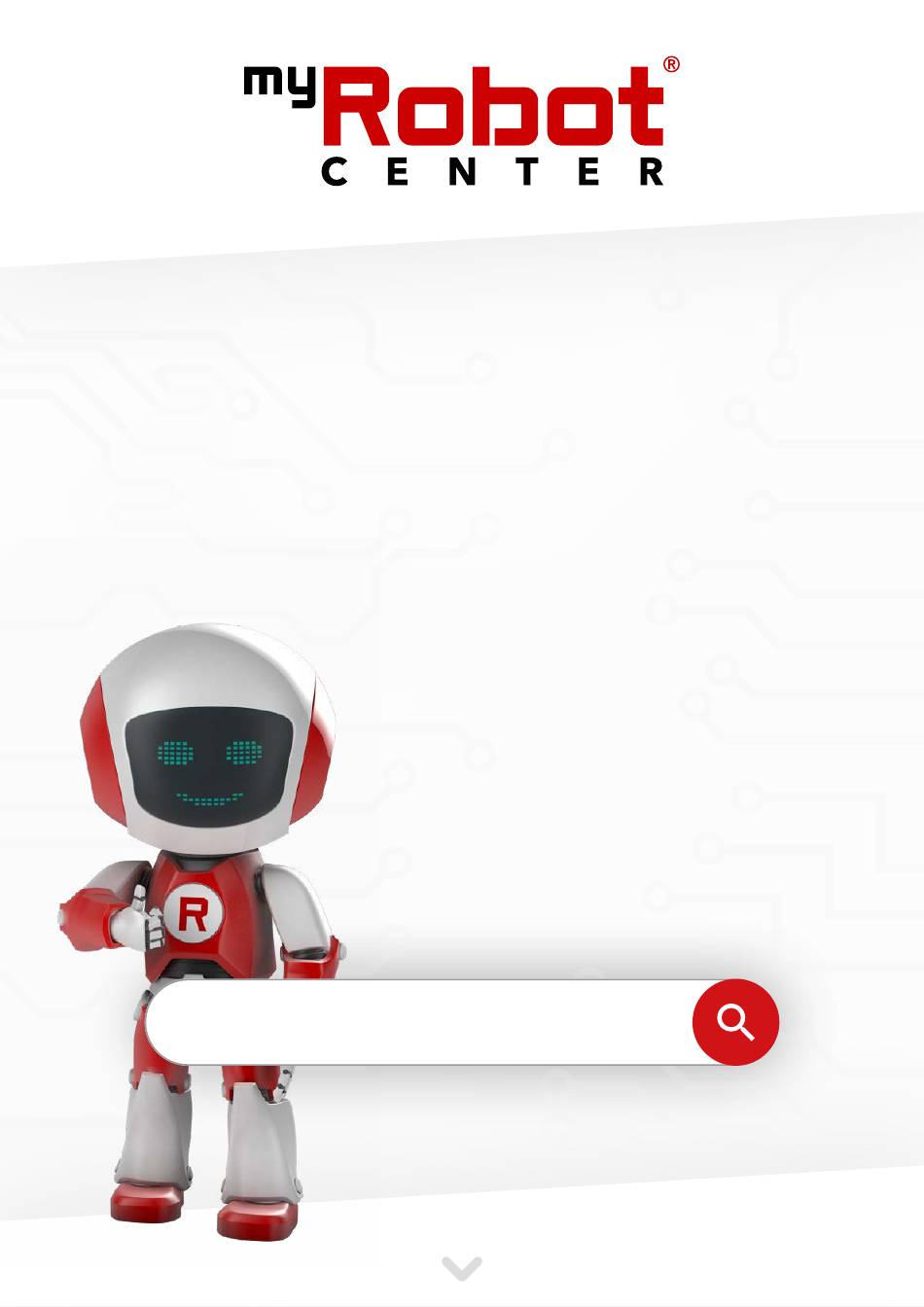

- Page 1 Der Spezialist für Roboter in deinem Zuhause. The Expert for Robots in Your Home. L’expert pour les robots dans votre ménage. myRobotcenter...
- Page 2 Optimow 10®/Optimow 15® Robotic Lawnmower OPERATOR’S MANUAL Rasenmähroboter BEDIENUNGSHANDBUCH Cortacésped robótico MANUAL DEL OPERARIO Gogo Tosaerba MANUALE DI ISTRUZIONI Tondeuse à gazon robotique MANUEL OPÉRATEUR Corta-relva robótico MANUAL DO OPERADOR Robotmaaier GEBRUIKERSHANDLEIDING Роботизированная газонокосилка РУКОВОДСТВО ОПЕРАТОРА Robottiruohonleikkuri KÄYTTÖOPAS Robotgräsklippare ANVÄNDARHANDBOK Robotklipper BRUKERHÅNDBOK...
- Page 3 The following pages contain important safety and operating instructions Carefully read and review all safety instructions, warnings and cautions contained in this manual. Failure to read and follow these instructions, warnings and cautionary statements may result in severe injury or death to persons and pets or damage to personal property.
-
Page 4: Table Of Contents
Contents Product Safety ......................4 Maintenance ......................20 Reading the operator manual ................ 4 Removing the Body from Chassis ............. 20 Operational safety .................... 6 Cleaning ......................20 Product Unboxing..................... 7 Replacing Blades .....................21 Installation ........................8 Maintaining the Battery ..................21 Planning Layout and Preparation .............. -
Page 5: Product Safety
Product Safety As a complement to this operator manual, more information is available on the website: www.greenworkstools.eu EXPLANATION OF SYMBOLS ON THE MOWER This is a dangerous power tool. Use care when operating and follow all safety instructions and warnings. Read the operator manual carefully before operating the mower. - Page 6 Product Safety IMPORTANT READ CAREFULLY BEFORE USE! KEEP FOR FUTURE REFERENCE! Training WARNING! Automatic lawnmower! Keep away from the machine! Supervise children! • Read the instructions carefully. Be familiar with the controls and the proper use of the machine. • Never allow people unfamiliar with these instructions or children to use the machine.
-
Page 7: Operational Safety
Product Safety OPERATIONAL SAFETY This operator manual contains all of the basic information concerning the safe operation and maintenance of the mower. Carefully read all the safety precautions and instructions in this operator manual before operating the mower. Save this operator manual for future reference. Follow manufacturer instructions regarding installation, operation, maintenance, and repair. -
Page 8: Product Unboxing
Product Unboxing 13 LED for operation check Removable cover 14 Operator manual and quick guide Stop button 15 Power supply* Start button 16 Screws for securing charging station (x5) LED indicators 17 Low voltage cable Cutting height adjustment 18 Loop wire for boundary and guide wire Rear wheels 19 Wire pegs Front wheels... -
Page 9: Installation
Installation Read the entire section before beginning installation. Installation affects mower capability. Plan the installation carefully. The following are the main tasks within the installation: • Planning layout and preparation • Installing and connecting the charging station • Connecting the power supply •... -
Page 10: Installing And Connecting The Charging Station
Installation INSTALLING AND CONNECTING THE CHARGING STATION Position for the charging station as follows: • In a level spot out of direct sunlight (The front end of the charging station must not be 5 cm higher or lower than the back end.) •... -
Page 11: Connecting The Power Supply
Installation CONNECTING THE POWER SUPPLY Connect the power supply in a cool, dry environment; out of direct sunlight. If the power supply is connected to an electrical socket outdoors, it must be approved for outdoor use. The low voltage cable can cross the operating area if it is stapled down or buried. CAUTION: Do not cut, splice, or alter the low voltage cable. -
Page 12: Initial Charging Of The Battery
Installation INITIAL CHARGING OF THE BATTERY Insert the safety key into the underside of mower and turn to the Enable position. Place the mower into the charging station while the boundary and guide wires are being laid. The mower cannot be used before the installation is complete. GREENWORKSTOOLS.EU... -
Page 13: Installing The Boundary Wire
Installation INSTALLING THE BOUNDARY WIRE When installing the boundary wire there are a number of situations to consider as described in the table below. Table 1. Handling Deviations and Obstacles in the Operating Area VARIATION WITHIN OPERATING AREA BOUNDARY WIRE PLANNING Fixed obstacles level with lawn that the mower can traverse (paving Lay the boundary wire under the paving stones or in the joint between stone paths or similar) - Page 14 Installation Temporarily secure the end of the loop wire to a peg or other object at the charging station. Lay out the loop wire in a counter-clockwise direction alone the planned boundary of the operating area taking into consideration the rules in Table 1 until you return to the charging station.
- Page 15 Installation Connect the boundary wire to the charging station as follows: Remove the protective cover on the charging station and thread the wire behind the tabs into the channel at the rear of the charging station. Press the connector onto the metal pins on the charging station (marked with left and right arrows).
-
Page 16: Installing A Guide Wire
Installation INSTALLING A GUIDE WIRE The mower uses the optional guide wire to find its way back to the charging station, but also find hard-to reach areas of the operating area. For example, the guide wire is laid between the charging station and a remote part of the working area or through a narrow passage. - Page 17 Installation Insert both ends of the boundary wire as well as the end of the guide wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.
-
Page 18: Calibrating And Initial Start Up
Installation CALIBRATING AND INITIAL START UP Secure the charging station to the ground using the five supplied fixing screws using a 6 mm hex key. NOTE: Do not make new holes in the charging station base plate. Only the existing holes may be used to secure the base plate to the ground. NOTE: Do not step or walk on the charging station base plate. -
Page 19: Operation
Operation STARTING AND STOPPING THE MOWER Start Stop To start the mower: Insert the safety key and rotate counter clockwise to position ”1” . Slide the START button latch backwards. Press down the START button. To stop the mower: Press the STOP button on the mower. SWITCHING OFF THE MOWER Press the STOP button on the mower and remove the safety key. -
Page 20: Lifting And Carrying The Mower
Always lift the mower using the carrying handle. PAIRING MOBILE APP TO MOWER Download Greenworks GreenGuide from App Store/Google Play and follow the on-screen instructions for how to pair the mower. Have the unique pairing code (found on the quick guide manual) and the mower at hand. -
Page 21: Maintenance
Maintenance WARNING! Wear protective gloves when handling or working near the sharp blades. WARNING! Before working on the mower itself, remove the safety key. WARNING! Before working on the charging station or power supply, remove the plug from the mains. •... -
Page 22: Replacing Blades
Maintenance REPLACING BLADES WARNING! Press the STOP button and remove the safety key before replacing blades and wear protective gloves. WARNING! Use only GLOBE’S blade: 333092355 CAUTION: Use only original replacement parts. Replace all three blades and screws as a set at the same time. Turn the mower upside down. -
Page 23: Replacing The Battery
Maintenance REPLACING THE BATTERY WARNING! Press the STOP button and remove the safety key before replacing batteries and wear protective gloves. CAUTION: Use only original replacement parts. Turn the mower upside down and remove the four Torx T20 screws and remove the battery cover. -
Page 24: Winter Storage Mower
Maintenance WINTER STORAGE MOWER Always clean the mower before winter storage. Charge the battery fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless. CAUTION: If the battery is not fully charged, it can be damaged and in certain cases be rendered useless. Inspect the condition of wear items;... -
Page 25: Troubleshooting
Troubleshooting This section also presents some symptoms that can guide you if the mower does not work as expected. INDICATOR LEDS ON MOWER STATUS MEANING ACTION 1. Operating Flashing Mower stopped with Stop button on mower Press Start on mower for operation (Green) Mower in operation mode (charging, parked in Charging station, paused, mowing or searching) -
Page 26: Symptoms
Troubleshooting SYMPTOMS If your mower does not work as expected, follow the troubleshooting guide below. SYMPTOMS CAUSE ACTION Mower has difficulty The charging station is on a slope. Place the charging station on a surface that is entirely docking with charging level. -
Page 27: Technical Data
Technical Data OPTIMOW 10 OPTIMOW 15 Dimensions: Height 26 cm 26 cm Length 62 cm 62 cm Width 50 cm 50 cm Weight 11 kg 11 kg Electrical system: Battery, Special Lithium-Ion battery 24 V / 2.0 Ah, Part No. 211022355 24 V / 2.0 Ah, Part No. -
Page 28: Environmental Protection
Environmental Protection According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/ batteries, must be collected separately and disposed of in an environmentally correct manner. The symbol on the mower or its packaging indicates that this product cannot be treated as domestic waste. -
Page 29: Warranty Terms
Warranty Terms GLOBGRO AB, Globe Group Europe guarantees this product’s functionality for a period of two years (from date of purchase). The guarantee covers serious faults relating to materials or manufacturing faults. Within the guarantee period, we will replace the product or repair it at no charge if the following terms are met: •... -
Page 30: Ce Declaration Of Conformity
Peter Söderström Propellergatan 1, 21115 Malmö, Sweden Herewith we declare that the product: Category: Robotic Lawnmower Model: Optimow 10®/Optimow 15® Serial number: See product rating label. Serial No See product rating label. • Is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC) •... - Page 31 DISTRIBUTOR INFO GREENWORKSTOOLS.EU GREENWORKSTOOLS.EU...
