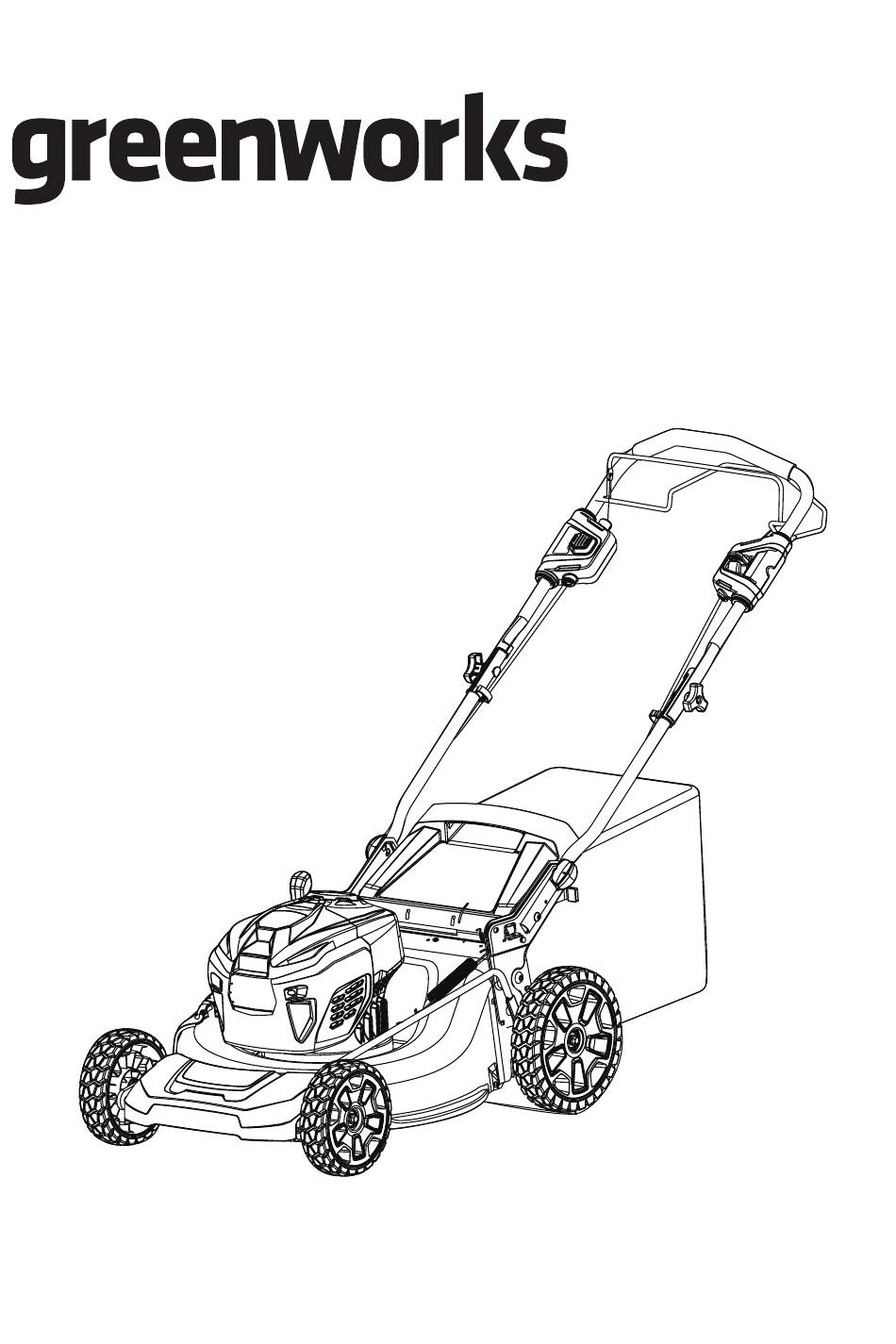

  • Page 1 MO40L02 MOWER OPERATOR MANUAL TONDEUSE MANUEL D'UTILISATION CORTACÉSPED MANUAL DEL OPERADOR LMF414 www.greenworkstools.com...

  • Page 3: Table Of Contents

    English Install the side discharge chute......9 Description......... 4 Set the cutting height........10 Purpose.............. 4 Install the battery pack........10 Overview............4 Remove the battery pack......... 10 Packing list............4 Operation......... 10 Read all instructions......4 Start the machine..........10 Children and Bystanders........4 Stop the machine..........11 General Operation..........4...

  • Page 4: Description

    English DESCRIPTION READ ALL INSTRUCTIONS DANGER PURPOSE This machine was built to be operated according to the rules This machine is used for domestic lawn mowing. The cutting for safe operation included in this manual. As with any type blade must be approximately parallel to the ground. All four of power equipment, carelessness or error on the part of the wheels must touch the ground while you mow.
  • Page 5 English handle immediately and the blade will stop rotating • Release the bail switch to disengage the motor. within three seconds. • Remove the battery. • Thoroughly inspect the area where the equipment is to be • Inspect for damage. used and remove all stones, sticks, wires, bones, and •...

  • Page 6: Slope Operation

    English • Do not dispose of the battery in a fire. The cells could • Keep all nuts, bolts, and screws tight in order to ensure catch fire or explode. Check with local codes and waste the equipment is in safe working condition. management for proper disposal instructions.

  • Page 7: Symbols On The Product

    English SYMBOLS ON THE PRODUCT Symbol Name Explanation DANGER --- All visitors should be kept Some of the following symbols may be used on this tool. Keep By- at a distance from work Please study them and learn their meaning. Proper standers Away area.

  • Page 8: Proposition 65

    English INSTALLATION WARNING Discard all toxic materials in a specified manner to prevent WARNING contamination of the environment. Before discarding damaged or worn out Li-ion battery, contact your local Do not change or make accessories that are not waste disposal agency, or the local Environmental recommended by the manufacturer.

  • Page 9: Install The Upper Handle

    English 3. Open the rear discharge door (7) and hold it. NOTE 4. Hold the the grass catcher (10) by its handle and engage Make sure that the two handle knobs are in the same the hooks on the door rod (16). position.

  • Page 10: Set The Cutting Height

    English 2. Line up the recesses of the side discharge chute (12) 2. Align the lift ribs on the battery pack (20) with the below the pivot. grooves in the battery compartment. 3. Close the side discharge door. 3. Push the battery pack into the battery compartment until the battery pack locks into place.

  • Page 11: Stop The Machine

    English 3. Remove the battery pack. NOTE 4. Open the rear discharge door and hold it. If the machine does not start, remove the battery pack and examine the mower deck to make sure that: 5. Hold the grass catcher by its handle and unhook it from the door rod.

  • Page 12: General Maintenance

    English • Store the machine in a dry area. CAUTION • Make sure that children cannot come near the machine. Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the VERTICAL STORAGE plastic, and make the plastic unserviceable.

  • Page 13: Troubleshooting

    (3) damage. years against defects in materials, parts or workmanship. 5. Repair the ma- Greenworks, at its own discretion will repair or replace any chine before and all parts found to be defective, through normal use, free you start it of charge to the customer.
  • Page 14 Greenworks. USA address: Canadian address: Greenworks Tools Greenworks Tools Canada Inc. P.O. Box 1238 1110 Stellar Drive Unit 102 Mooresville, NC 28115 Newmarket, ON, L3Y 7B7...

  • Page 15: Exploded View

    English EXPLODED VIEW Part No. Description 311011576AB Motor assembly 333021527 341191179-1 341241179 Side discharge chute 341331179U Bumper cover 32205836 Screw 341061179C Bumper main body 311201546 Side discharge cover assembly 333041179 Blade 322011179AC Bolt...
  • Page 16 English 3220951D Screw 333013431A Deck 32202390 Bolt 32204113D Screw 311021179 Front wheel axle 33307470 Axle press plate 32204113D Screw 341281179A 8” Wheel assembly 341021179 Front panel 3220343 332081531 Height adjustment link bar 32243563 332011179 Height adjustment tension spring 341033431 Rear baffle 322051505 Screw 3333041519...
  • Page 17 English 332101179A Washer 322031179 Bolt 333121179A Lower handle 341291179 Knob 341031555 Insulation sleeve 322041179 Stud 332151531B Upper handle 311032330A Switch box assembly 333013455 Bail lever 342021179 Sponge 312011179K Grass catcher bag assembly 341043431 Mulching plug 332021512C Lower lever 311032338 Self-propel speed controls 32204113 Screw 3220404...
