GreenWorks 25262 Owner's Manual

GreenWorks 25262 Owner's Manual

19" cordless hand push lawn mower

Advertisement

19" Cordless Hand Push Lawn Mower
25262
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25262 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWorks 25262

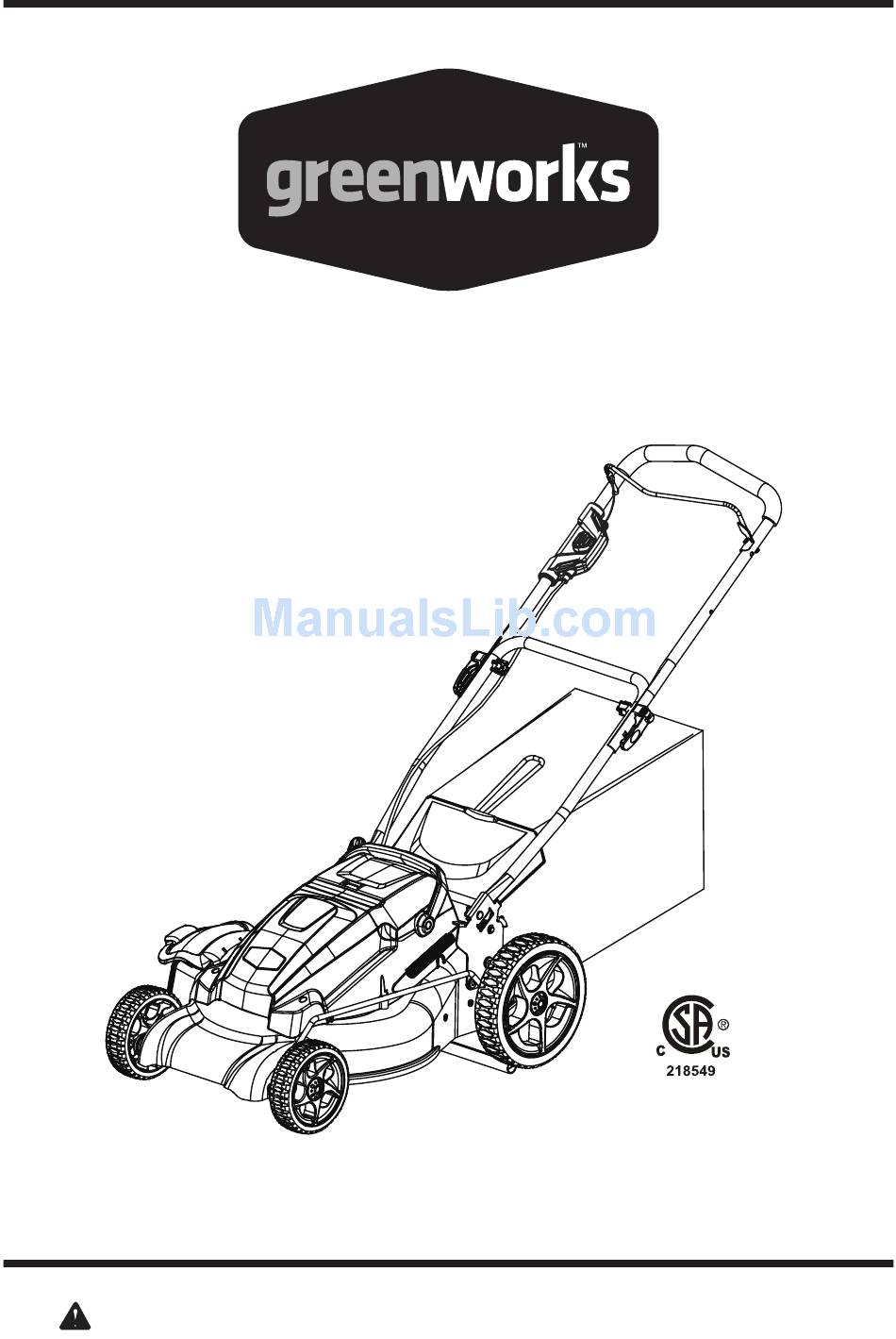

  • Page 1 19" Cordless Hand Push Lawn Mower 25262 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product specifications ......................2 Safety information ......................3-7 Symbols ..........................8-9 Battery & Charger ......................10-12 Know your lawn mower ...................... 13 Assembly ........................14-18 Operation ........................19-24 Maintenance ......................... 25-26 Storage ..........................27 Environmentally safe battery disposal ................28 Service ..........................
  • Page 3: Safety Information

    SAFETY INFORMATION GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower.
  • Page 4 SAFETY INFORMATION • Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the mower. Keep this manual in a safe place for future reference, and consult it regularly. • Become familiar with all controls and their proper operation. Know how to stop the mower and how to disengage the power in an emergency.
  • Page 5 BATTERY & CHARGER C A U T I O N USE ONLY GREENWORKS APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. Use with GREENWORKS 36V 10Ah battery.
  • Page 6 SAFETY INFORMATION BATTERY RULES FOR SAFETY • Battery operated units do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when unit is not operating. • Remove the battery pack before making any adjustments, cleaning, or removing material from the unit.
  • Page 7 SAFETY INFORMATION • Do not disassemble charger, take it to an authorised service station if repair is required. Incorrect reassemble may result in a risk of electric shock or fire. • Unplug charger from outlet before attempting any cleaning to reduce the risk of electric shock. •...
  • Page 8: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 9: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
  • Page 10: Battery & Charger

    BATTERY & CHARGER W A R N I N G Always remove the isolator key and store it in a separate location out of the reach of children when the mower is charging or not in use. Failure to remove the isolator key may result in accidental starting or unauthorized use and cause serious personal injury.
  • Page 11 BATTERY & CHARGER CHARGING THE BATTERY PACK Note: The battery can be charged in or out of the mower. • Make sure the power supply is normal household voltage, 120 V, 60 Hz, AC only. • Remove the isolator key and store in separate location out of reach of children. •...
  • Page 12 BATTERY & CHARGER BATTERY METER Since the mower battery is shipped in a low charge condition, the battery must be charged before use. The battery has four LED lights to indicate battery capacity. These lights will illuminate when the button is pressed. If four LED lights illuminate, the battery is 100% charged and ready for use.
  • Page 13: Know Your Lawn Mower

    KNOW YOUR LAWN MOWER Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 3 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Fig.
  • Page 14: Assembly

    ASSEMBLY INSTRUCTIONS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
  • Page 15: Assembly Instructions

    ASSEMBLY INSTRUCTIONS UNFOLDING AND ADJUSTING HANDLE (See Figure 4) • Pull up and back on the upper handle to raise the handle into operating position. Make certain the handles snap into place securely. • Tighten the upper handle with the cam locks on both sides. Handle knob Cam locks Fig.
  • Page 16 ASSEMBLY INSTRUCTIONS INSTALLING THE GRASS CATCHER BAG (See Figure 5) • Lift the chute cover (1). • Lift the grass catcher by its handle (2) and place under the chute cover so that the hooks (3) on the grass catcher frame are seated into the slots in the handle bracket. •...
  • Page 17 ASSEMBLY INSTRUCTIONS INSTALLING SIDE DISCHARGE CHUTE (See Figure 6) • Lift the side discharge cover (1). • Align the grooves on the discharge chute (2) with the pins on the underside of the discharge cover (1). • Lower the discharge chute (2) until the hooks on the mower deck are secured in the openings in the discharge chute (2).
  • Page 18: Assembly

    ASSEMBLY INSTRUCTIONS INSTALLING THE MULCHING PLUG (See Figure 7) • To remove the mulching plug, lift the chute cover (1). • Grasp the handle (2) of the mulching plug and pull the mulching plug out using the handle. • The mulching plug (3) is inserted on an angle, so it requires some force to remove it. •...
  • Page 19 OPERATING YOUR LAWN MOWER STARTING/STOPPING THE MOWER (See Figure 8) • Insert the isolator key into the slot on the motor/shroud assembly. • Press and hold the start button. Pull the power lever toward the handle and release the button to start the mower.
  • Page 20: Operating Your Lawn Mower

    OPERATING YOUR LAWN MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 9) When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1 1/2"...
  • Page 21 OPERATING YOUR LAWN MOWER ADJUST THE UPPER HANDLE HEIGHT (See Figure 10) • Loosen the upper handle knob. • Adjust the upper handle to the most comfortable of the 2 positions. • Snug the upper handle knob and lock the cam lock handle to secure. Cam lock handle Upper handle knob Lock...
  • Page 22 OPERATING YOUR LAWN MOWER EMPTYING THE GRASS CATCHER BAG (See Figure 11) • Stop mower, allow blades to completely stop, and remove key. • Lift the rear chute cover. • Lift the grass catcher bag by its handle to remove from mower. •...
  • Page 23: Operation

    OPERATING YOUR LAWN MOWER SLOPE OPERATION W A R N I N G Do not mow a slope that has an angle of greater than 15° (a rise of approximately 2-1/2 ft. [75 cm] every 10 ft. [3 m]). Mow across the face of a slope, and never up and down. •...
  • Page 24 OPERATING YOUR LAWN MOWER MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. •...
  • Page 25: Maintenance

    ALWAYS remove the isolator key when servicing or transporting the mower. Use only a GREENWORKS replacement blade. • REMOVE BATTERY. • While wearing leather padded gloves, wedge a block of wood between the blade and the mower deck in order to prevent the blade from turning when the nut is being removed.
  • Page 26 MAINTENANCE REPLACING THE BATTERY The mower battery is designed for maximum life; however, like all batteries, it will eventually need to be replaced. Charge the new battery pack before use. See Battery & Charger of this manual. TO INSTALL A NEW BATTERY: •...
  • Page 27: Storage

    STORAGE CLEAN THE MOWER W A R N I N G To reduce the risk of electric shock, do not expose the mower to water. The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris will accumulate causing rust and corrosion.
  • Page 28: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.
  • Page 29: Service

    SERVICE • When ser vicing the mower, use only replacement par ts that are available from the manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-888-909- 6757. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety.
  • Page 30: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. The switch is defective. Replace the switch (call the tollfree helpline, at 1-888-909-6757 Grass jammed at blade. Remove battery; check under deck for The mower does jams. not start.
  • Page 31: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...
  • Page 32: Exploded View

    EXPLODED VIEW...
  • Page 33: Parts List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 31104488 Upper handle assy. 33310470-2 Upper handle 34135486 Foam grip 33305469-3 Power lever 31107486 Cable box assy. 34136486 Start button 33401229 Spring 34122486 Cable box cover (upper) 34123469 Compressor 3220735 Screw ST3X8-C 31901250 Start cable (short) 33318250 Compressed spring...
  • Page 34 PARTS LIST ITEM NO. PART NO. DESCRIPTION 3220537 Lock nut M6 36101487 Motor 32208261 Nut M8 34105467-1 Motor bracket 32207115 Washer φ18*φ6.5*1.8 3220135 Bolt M6×25 3220406 Bolt 33332250 Compressed spring 31106250-3 Switch box assy. 29.1 34134250-1 Upper cover, switch box 29.2 34114250 Switch box slide block...
  • Page 35 PARTS LIST ITEM NO. PART NO. DESCRIPTION 3221237 Lock nut M4 3330490-1 Wire clip 3220518 Screw M4×12 33903487 Rear wheel rod 34102486 10” Wheel 34113227-5 Height adjustment knob (upper) 34114227-5 Height adjustment knob (lower) 31103222 Height adjustment lever 33401222 Torsion spring 3290506 Retaining ring 8 32207234...
  • Page 36 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (04-16-12) Printed in China on 100% Recycled Paper...
