IRFTS EASY ROOF EVOLUTION L1 Installation Instructions Manual page 8

Assembly guide for EASY ROOF EVOLUTION L-1
2) EASY ROOF EVOLUTION with GLAZING STOPS AND DEFLECTORS

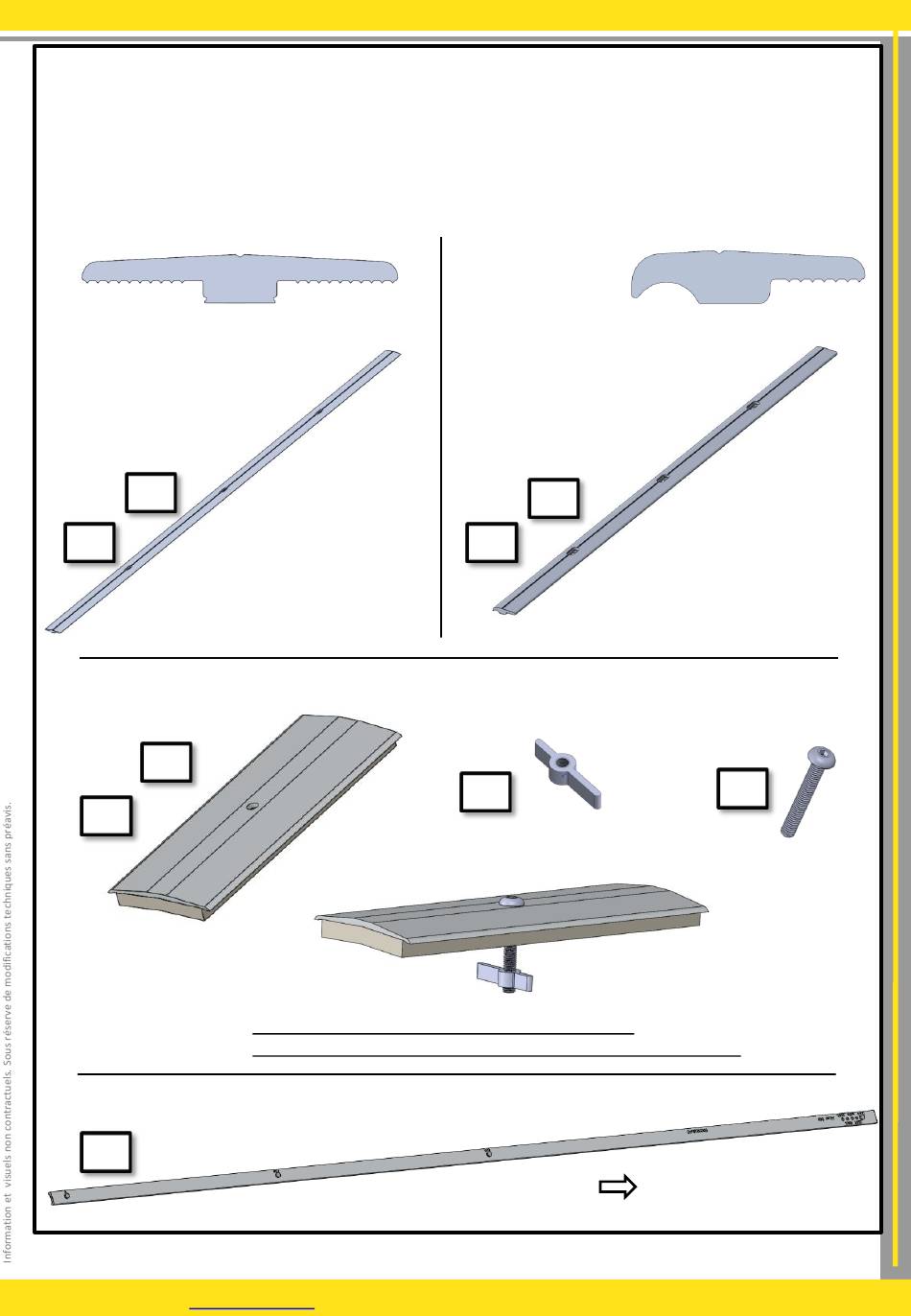

2.2) Representation of parts
• Middle glazing stop: part that is
assembled in the same direction as the
roof slope where two modules join
(Cross section)
23
24
• Glazing stop blanking cover: part that is assembled in the same direction as the roof slope where two
glazing stops meet
27
28
• Glazing stop mounting tool L-1: Tool to ensure that the brackets are installed vertically
31
This document is the property of IRFTS. It shall not be reproduced or shared with third parties without IRFTS agreement
www.irfts.com
These three components are delivered separately
Pre-assemble the blanking cover before starting work as shown
• Side glazing strop: part that is assembled in
the same direction as the roof slope on each
side of the PV field
25
26
30
IRFTS
Model "L-1" 60 Cells 6" Portrait
(Cross section)
29
See Assembly
Annexe 6 - page 75
8
