Assembly guide for EASY ROOF EVOLUTION L-1
Annex n° 5
Connection of the PV cables and grounding

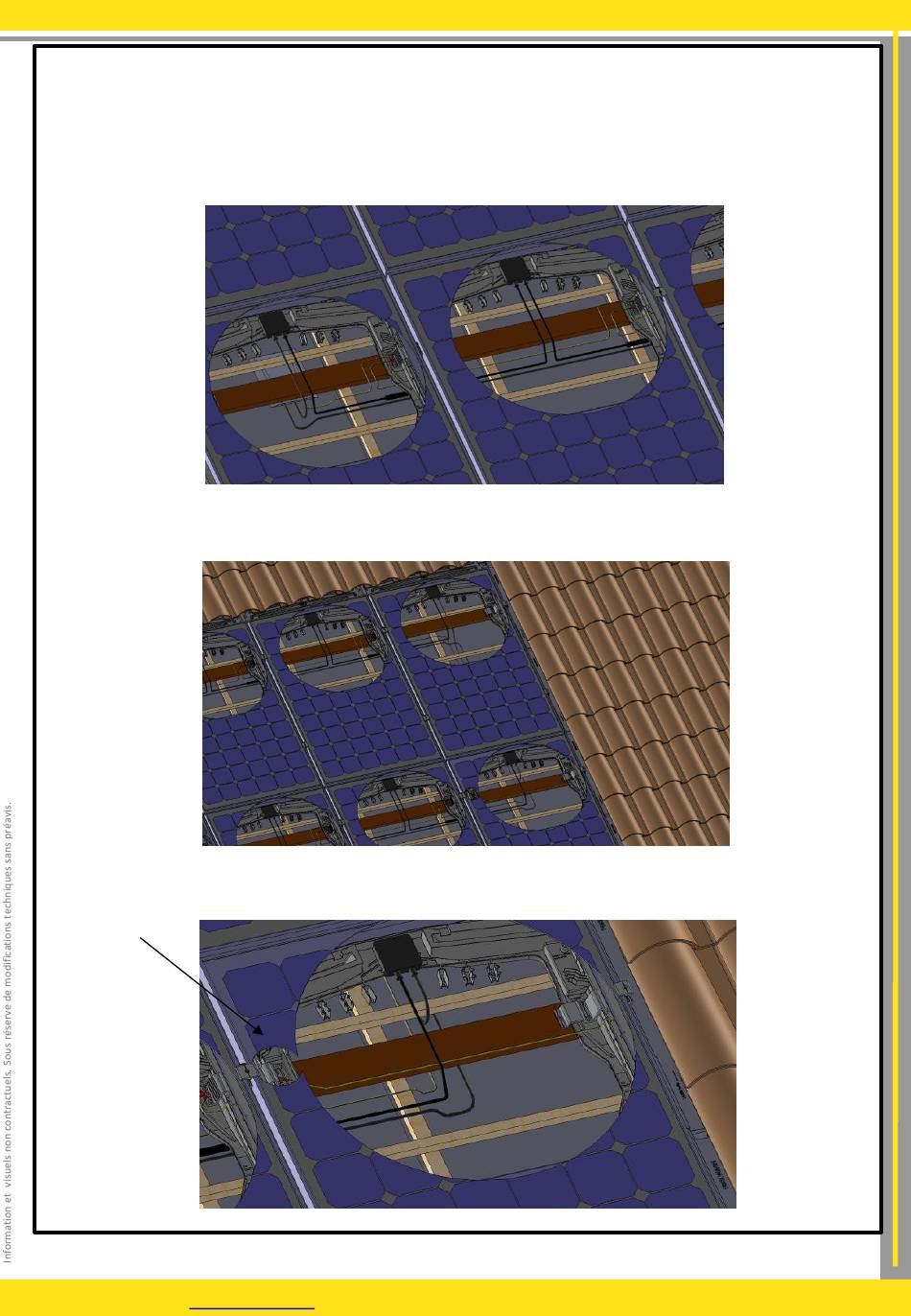

• Connect the module to each other ( cable + on cable - ).
• Run the – and the ground along these cables in order not do a loop.
• Go to the upper line.
• Connect the last module of the row to the left Middle bracket
