IRFTS EASY ROOF EVOLUTION L1 Installation Instructions Manual page 105

Assembly guide for EASY ROOF EVOLUTION L-1
Annex n° 8

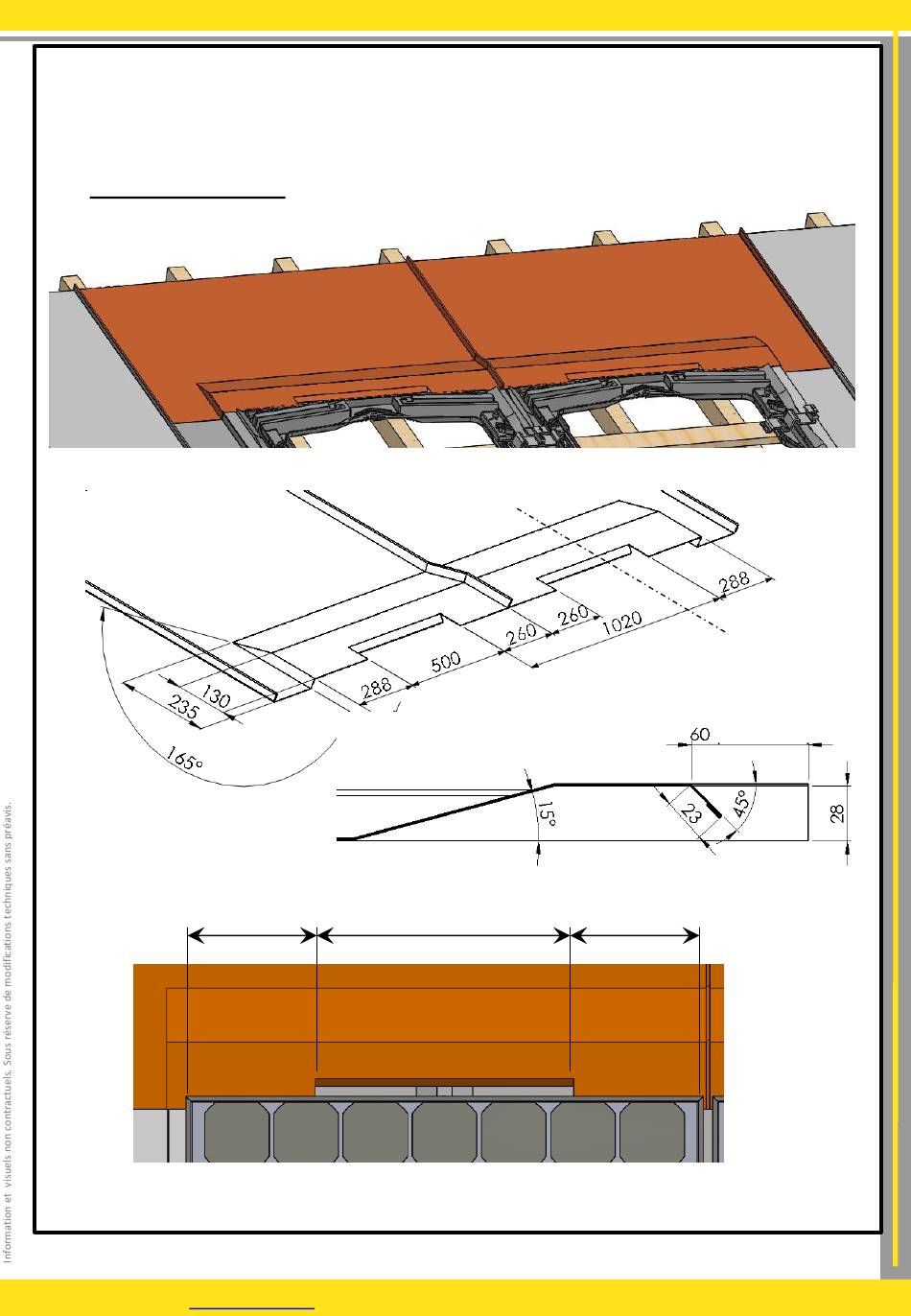

C. Zinc flashings with standing seals
C-2 Field PV top
A
A
(opening)
(View A-A)
= =
500 mm
Top flashing
This document is the property of IRFTS. It shall not be reproduced or shared with third parties without IRFTS agreement
www.irfts.com IRFTS
105
Model "L-1" 60 Cells 6" Portrait
