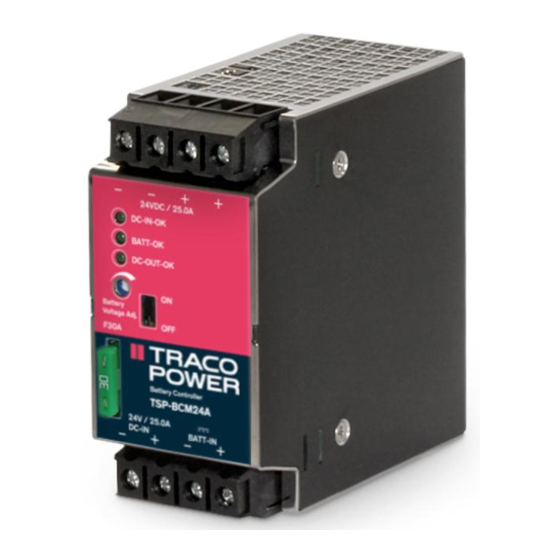

1. Mechanical Mounting The TSP-BCM12 as well as the TSP-BCM24, TSP-BCM24A, TSP-BCM48 and TSP-BCM48A are “Built in Devices”, and must be mounted into an electrical rack which must provide protection against access to dangerous voltages, hot devices and be resistant to flammability and causing fire hazards.
Page 3
Configure the BCM module to your actual configuration of power supply TSP 090-124, TSP 090-148, TSP 180-124, TSP 180-148, TSP 360-124, TSP 360-148, TSP 600-124 or TSP 600-148 in combination with TSP-BCM12, TSP-BCM24(A) or BCM48(A) by choosing the jumper position J6 as described in paragraph 3.5.
Page 4
The floating DC-OUT-OK (see Fig. 2.1 Connector J5, pin 5 & pin 6) is available to monitor if the TSP-BCM12, TSP-BCM24(A) or TSP-BCM48(A) provides an output voltage. If the output voltage on the TSP-BCM24 or TSP-BCM24A is present, the relay contact (30Vdc / 0.6A or 60Vdc / 0.3A) is closed.
Connector J5 pin 7 and Connector J5, pin 8 by use of a switch has to be made. At open connection between J5 pin 7 and J5 pin 8 the device is providing the adjusted output voltage. On the TSP-BCM12 TSP-BCM24(A) as well as theTSP-BCM48(A) a switch is available to switch off the system on site (in the control cabinet).
Page 6
TSP-BCM12 TSP power supply Jumper position BCM Module Input Current Limitation Power Supply Type out Nom in Limit TSP 140-112 12.00A 10.50A TSP 070-112 6.00A 5.20A 2.60A TSP-BCM24 TSP power supply Jumper position BCM Module Input Current Limitation Power Supply Type...
