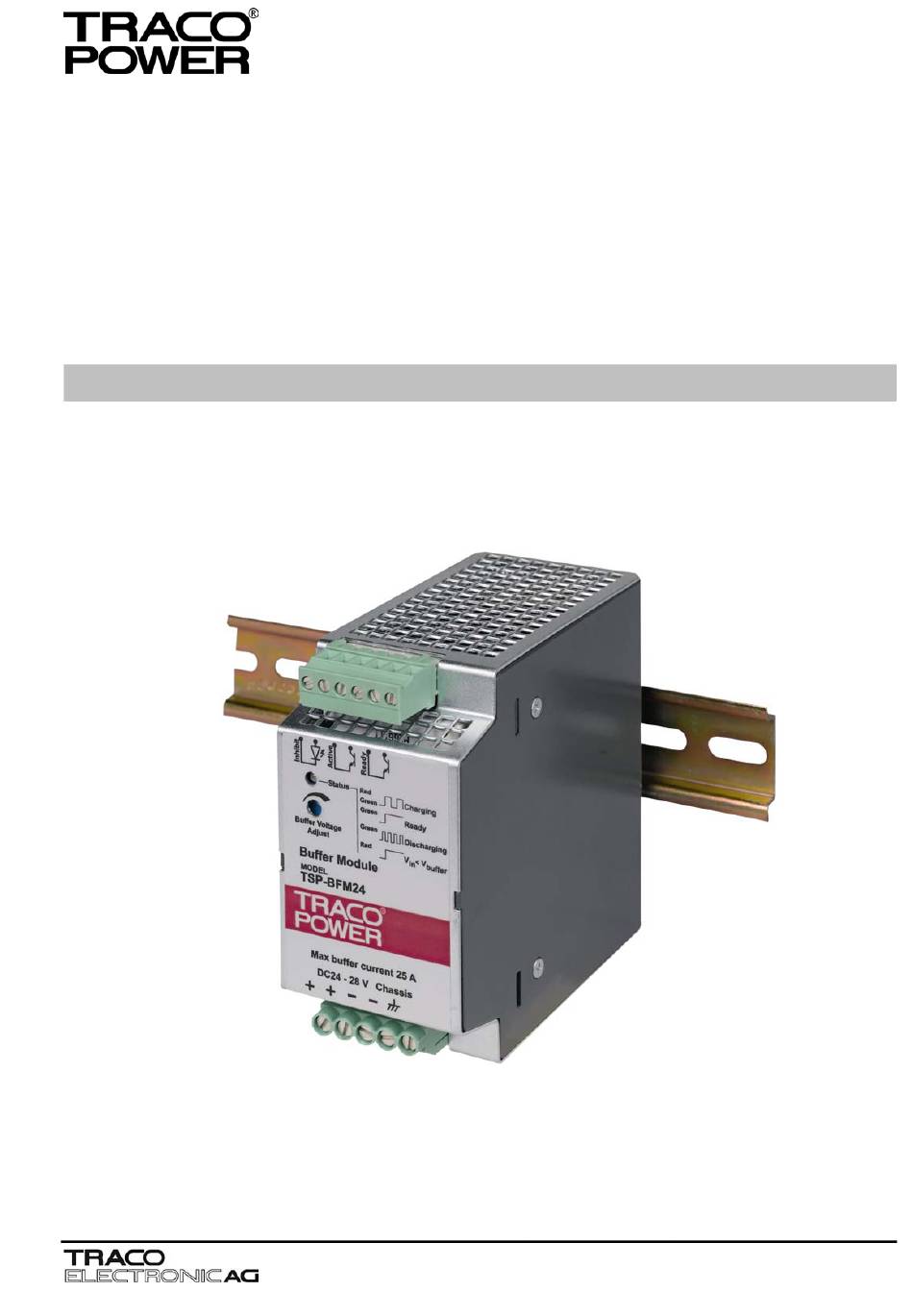

TRACO POWER TSP-BFM24 Operating Instructions Manual

Buffer module

Advertisement

Quick Links

B
M
UFFER
ODULE
Operating Instructions
TSP-BFM24
Tel: +41 43 311 4511
Jenatschstrasse 1
Fax: +41 43 311 4545
CH-8002 Zürich
sales@traco.ch
Date: 24 May 2005
www.tracopower.com
Issue: 1.2
Page
1
Seite

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSP-BFM24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRACO POWER TSP-BFM24

  • Page 1 TSP-BFM24 UFFER ODULE Operating Instructions Tel: +41 43 311 4511 sales@traco.ch Date: 24 May 2005 Page Jenatschstrasse 1 Fax: +41 43 311 4545 www.tracopower.com Issue: 1.2 Seite CH-8002 Zürich...
  • Page 2 TSP industrial power supply data sheet. Subject to change without prior notice. In order to guarantee safe operation of the TSP-BFM24 in combination with the TSP power supplies and to be able to make use of all the functions, please read these instructions thoroughly! Tel: +41 43 311 4511 sales@traco.ch...
  • Page 3 The TSP power supply has to be connected to the load as well as to the TSP-BFM24 module (see Fig. 1.1). The device is in parallel to the output voltage of the TSP power supply, and charges its internal hold-up capacitors during normal operation. The charge current (<0.6A) is taken from the power supply output itself (charging time 30 sec max.).
  • Page 4 3.1 Inhibit: The TSP-BFM24 unit provides an Inhibit function by use of pin 1 & pin 2 at connector J2 (see Fig. 3.1) to control the TSP- BFM24 module. To switch off the TSP-BFM24 a voltage level between 5Vdc and 28Vdc has to be applied on Connector J2 pin 1 (Inhibit GND) and Connector J2, pin 2 (Inhibit +).
  • Page 5 English 4. Compliance to UL508C The TSP-BFM24 is a is a built-in device and to comply with UL508C the device must be installed in a cabinet with minimum dimensions of: 400mm (Width) x 500mm (Height) x 200mm (Depth) 4.1 Operating Temperature Ranges and load derating: Depends on the TSP connected to the TSP-BFM24.
  • Page 6 J1.1 J1.2 J1.3 J1.4 J2.4 J2.6 J2.3 J2.5 Fig. 1.1 TSP-BFM24 – Buffer Time vs. Load Power TSP-BFM24 - Buffer Time vs Load Power (typical values) 0.25 0.5 0.75 1.25 1.5 1.75 2.25 2.5 2.75 3.25 3.5 3.75 4.25 Fig.: 2.1...
  • Page 7 Active GND Pin 4 -Vin Active Signal Pin 5 Ready GND Pin 6 Ready Signal Wall mounting brackets (TSP-WMK01) for TSP-BFM24 Fig.: 4.1 Tel: +41 43 311 4511 sales@traco.ch Date: 24 May 2005 Page Jenatschstrasse 1 Fax: +41 43 311 4545 www.tracopower.com...
