- Page 1 Alfa Laval Alfa-V VDD Instruction manual • Product description • Product labels • Transport & lifting • Installation • Maintenance • Spare parts ORIGINAL INSTRUCTIONS AHE00053EN 1904 9460163197EN-1...
-
Page 2: Table Of Contents
Start up procedure........................17 Shutdown ..........................17 Maintenance Fan replacement ........................18 Stepping on the unit .........................18 Spare parts..........................19 AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 3: Important Information
Alfa Laval Air Cooled Liquid Coolers Product Manual AHE00050. Both manu- als must be carefully examined and instructions should be followed up at all times. Alfa Laval does not accept liability for any damage resulting from non-compliance to the instructions as given in the manuals and order-related documents. -
Page 4: Product Description

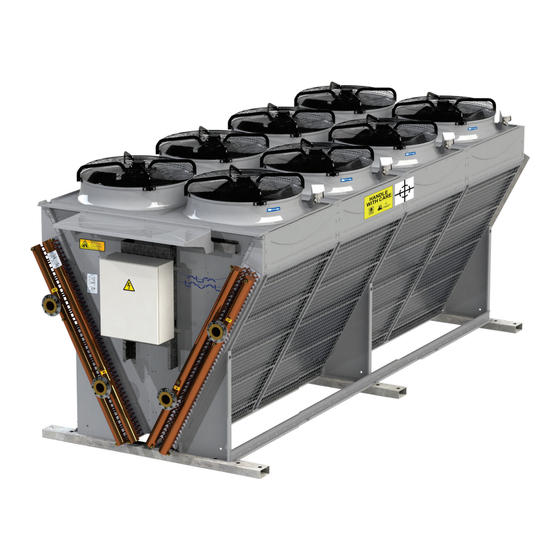

Product description General information and application The Alfa-V VDD series is a wide range of heavy duty dual fan row V-type dry coolers for HVAC, refrigeration and various industrial applications such as water/glycol cooling. For industrial applications, dry coolers are suitable for closed circuit cooling of various process liq- uids in f.i. -
Page 5: Code Description
HANDLE When handling the unit, always take maximum WITH CARE care. HANDLE WITH CARE AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. - Page 6 MAINTENANCE TO AVOID INJURIES OR DAMAGE coil has been pres- sure tested in the factory AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
- Page 7 Sticker is applied when the product is included in the Eurovent Certify All program. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
-
Page 8: Unpacking And Lifting
Remove any obstacle to allow the skid sliding out of the container. • Ensure the truck is stopped. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. - Page 9 Slowly drive forward with the truck until the unit is completely outside the container. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
-
Page 10: Lifting From Above
This is not allowed. DETAIL A AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. - Page 11 12 FANS 7 MOD 8 MOD 14 FANS 16 FANS 9 MOD 18 FANS AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
-
Page 12: Installation
AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 13: Mounting Dimensions
Expansion joints are also helpful in order to reduce vibrations in the piping. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 14: Vibration Dampers
Vibration dampers For active and passive isolation of vibrations and reducing noise transmission, Alfa Laval strongly recommends the installation of vibration dampers. Installation of vibration dampers must be carried out before positioning the unit. Vibration dampers are to be positioned between the unit feet and the mounting base with the supplied M16 screw. -
Page 15: Installation Layout Guideline
In case of doubt, to determine optimal unit spacing for specific conditions on site please contact your Alfa Laval representative for advise. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 16: Electrical Connections
(N-1)/2 (N-1)/1.2 N= number of units on the platform. All three conditions (H, d, h) shall be met. Contact Alfa Laval in case a different lay out is required. Special care should be taken in particular circumstances, such as: •... -
Page 17: Operation
Compressed air helps to drain in less time. Compressed air shall be oil free. AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 18: Maintenance
Never step on the fan grids and on the liquid connections. It is not allowed to step outside the areas highlighted in the example below. = walkable areas AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. -
Page 19: Spare Parts
Alfa Laval Anytime. If required please contact your local Alfa Laval representative for assistance. Alfa Laval Anytime AHE00053EN 1904 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification. - Page 20 www.alfalaval.com...
