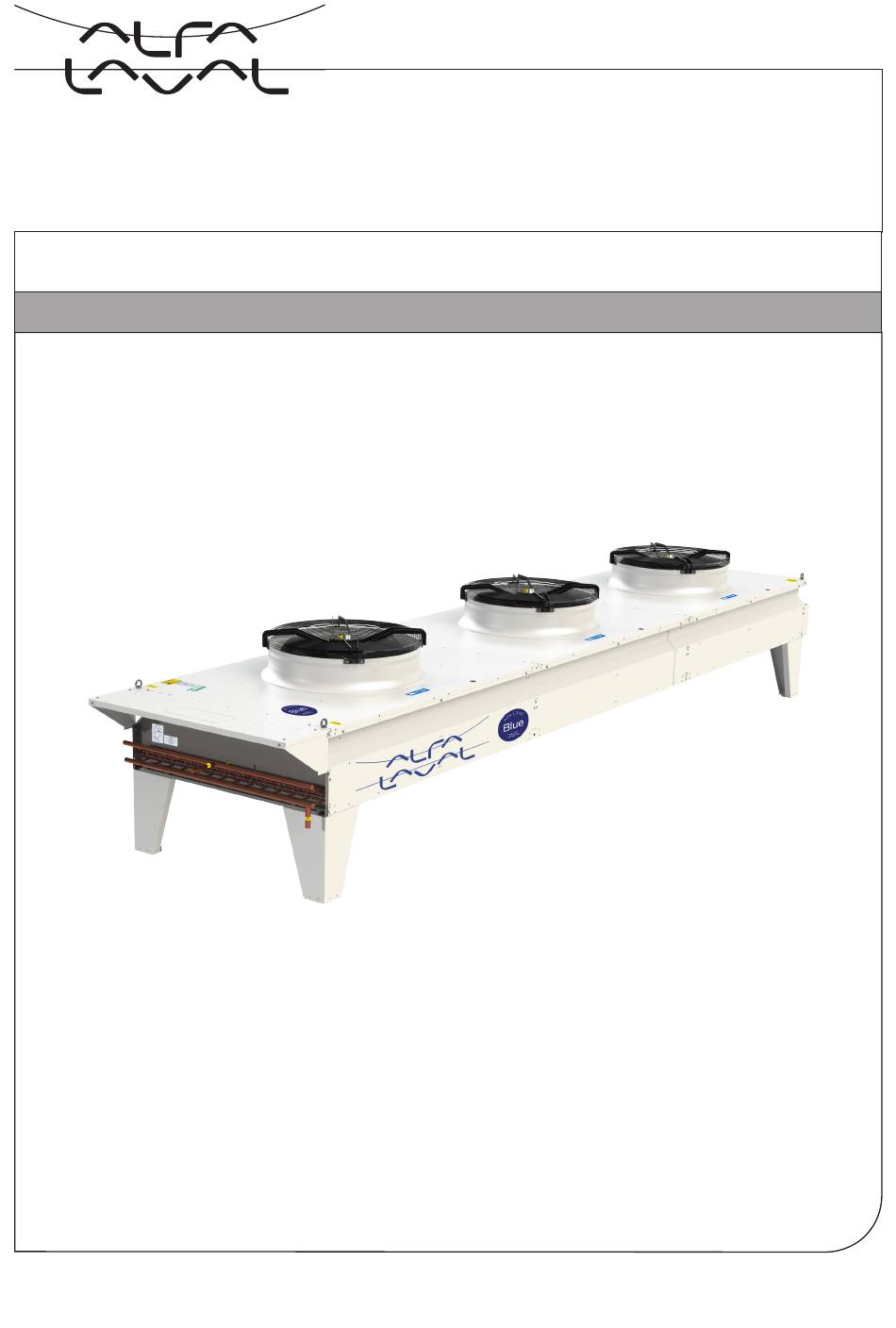

  • Page 1 Alfa Laval Blue BC/BN/BX Instruction manual • Product description • Product labels • Unpacking & lifting • Installation • Maintenance • Spare parts ORIGINAL INSTRUCTIONS 9460173341-02...

  • Page 2: Table Of Contents

    Operation Start up procedure........................29 Shutdown/dismounting ......................29 Maintenance Fan replacement ........................30 End covers ..........................30 Spare parts..........................31 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 3: Important Information

    This Instruction Manual applies to all Alfa Laval Blue BC condensers, BN ammonia condensers and BX gas coolers, and is supplied in combination with the Alfa Laval product manual AHE00049. Both manuals must be carefully examined and instructions should be followed up at all times. Alfa Laval does not accept liability for any damage resulting from non-compliance to the instructions as given in the manuals and order-related documents.

  • Page 4: Product Description

    - EC fan speed control cabinet (ICM) - EC fan speed control cabinet + temperature probe (ICMT) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 5: Code Description

    Immediate report to manufacturer and note on ATTENTION! bill of delivery. CIRCUIT FRIGORIFIQUE PRE-CHARGE AVEC AZOTE BHИМАНИЕ! СИСТЕМА ЗАПРАВЛНА АЗОТОМ 5.307 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
  • Page 6 READ INSTRUCTION MANUAL BEFORE INSTALLATION AND MAINTENANCE TO AVOID INJURIES OR DAMAGE the factory 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
  • Page 7 Don’t walk on the headers or on the fan cowls 15. Sharp surfaces Warning: danger of cutting injuries. Wear ade- quate protection. 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
  • Page 8 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 9: Unpacking And Lifting

    Unpacking and lifting Always follow guidelines and instructions as given in the product manual for Alfa Laval air cooled condensers & gas coolers AHE00049. Packing By default, all units are shipped in horizontal airflow position. If vertical airflow is selected, mounting feet come loose.

  • Page 10: Unpacking

    During this procedure the operator must never stand nor walk below the suspended load. 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 11: Feet Mounting For Vertical Airflow

    5) With all mounting feet in place, the unit is ready for further positioning and installation. Replace eyebolts Replace stirrup 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 12: Wind Braces For 1200 Mm Feet

    BENDS SIDE beams shall be mounted alternated in order to reinforce the structure properly. CONNECTIONS SIDE 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
  • Page 13 The illustration below shows the wind braces positioning on the length side of the heat exchanger. 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 14: Lifting From Above

    VALID FOR BOTH SINGLE AND DOUBLE FAN ROW VALID FOR BOTH SINGLE AND DOUBLE FAN ROW 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 15: Installation

    2800 6080* 2800 1400 2800 7480* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 16: Mounting Dimensions B*M 800S Vertical Airflow

    2704 6080* 2704 1496 2704 7480* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 17: Mounting Dimensions B*M 800 Horizontal Airflow

    3500 7480* 3500 1750 3500 9230* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 18: Mounting Dimensions B*M 800 Vertical Airflow

    3404 7480* 3404 1846 3404 9230* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 19: Mounting Dimensions B*M 900-100 Horizontal Airflow

    4680* 6300 6780* 4200 4200 8880* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 20: Mounting Dimensions B*M 900-1000 Vertical Airflow

    4680* 6204 6780* 4200 4104 8880* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 21: Mounting Dimensions B*D 800 Horizontal Airflow

    3500 9230* 3500 3500 3500 10980* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 22: Mounting Dimensions B*D 800 Vertical Airflow

    3404 9230* 3404 3596 3404 10980* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 23: Mounting Dimensions B*M 900-1000 Horizontal Airflow

    4200 8880* 4200 2100 4200 10980* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 24: Mounting Dimensions B*M 900-1000 Vertical Airflow

    4104 8880* 4104 2196 4104 10980* * +60 mm for SS tubes (BN as standard) 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 25: Concrete Mounting Base

    Vertical airflow 5.12 Vibration dampers For active and passive isolation of vibrations and reducing noise transmission, Alfa Laval strongly recommends the installation of vibration dampers. Installation of vibration dampers must be carried out before positioning the unit. Vibration dampers are to be positioned between the unit feet and the mounting base with the supplied bolts.

  • Page 26: Expansion Joints

    Vertical airflow 1-3 fans Vertical airflow 4-5 fans Fan speed control optional Fan speed control optional 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 27: Switch On/Off (Option Sw)

    Use these bolts to fix repositioned cover 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 28: Positioning

    2 units next to each other > C/2 > C/2 > C >C Wind Wind >C 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 29: Electrical Connections

    Contact Alfa Laval to determine optimal unit spacing for specific conditions on site. Special care should be taken in particular circumstances such as: • When the installation site is exposed to strong winds. • When walls or other obstructions with different configuration than the ones shown in the exam- ples are present on site.

  • Page 30: Maintenance

    End covers can be removed for inspection, cleaning and maintenance purposes. To remove end covers, loosen fixing bolts. 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.

  • Page 31: Spare Parts

    Alfa Laval Anytime. If required please contact your local Alfa Laval representative for assistance. Alfa Laval Anytime 9460173341-02 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB. Alfa Laval reserves the right to change specification without prior notification.
