  • Page 3: Before You Start

    BEFORE YOU START Thank you for purchasing ACTi Standalone Network Video Recorder. This guide contains all the information you need to quickly set up ACTi INR server system via local interface. For detailed instructions on installation, operation and how to log in to INR as a web client, please refer to the product manuals available on ACTi corporate website.
  • Page 4: Hardware Installation

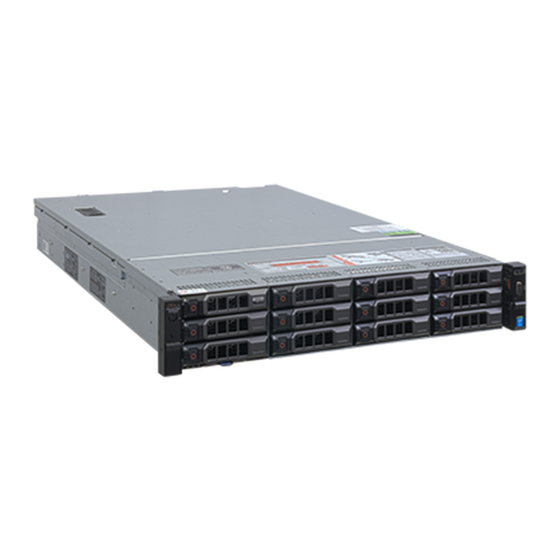

    HARDWARE INSTALLATION UNPACK This package contains: • INR x 1 • Power Cable x 2 • Rail Kit x 1 • Extension Cord x 2 • Front Cover x 1 • Accessory Pack x 1 • Warranty Card x 1 • Service Documents AT A GLANCE Front Panel...
  • Page 5: Rackmount The Unit

    RACKMOUNT THE UNIT This unit is designed to be mounted on a standard server rack, occupying 2U (3.5″) of vertical space. Install this unit into the rack with another person’s aid following the instructions supplied with the rails. Remember to remove the power supply modules in advance to make this unit lighter.
  • Page 6: Connect The Devices

    ATTACH THE FRONT COVER After finishing installing the disks, attach the front cover to its front panel. Step 1 Step 2 Hook the left end of the cover onto Fit the free end of the cover onto the the chassis’ left ear. unit.
  • Page 7 CREATE HARDWARE RAID As this unit supports hardware RAID configuration, you can make disk arrays using the bundled software utility. 1. On Windows Desktop, double-click on the shortcut to initialize the RAID management utility. 2. On Remote servers list, select the IP address of this server and click on “Login“.
  • Page 8 4. Choose “Simple“ mode and then click on “Next“. 5. Select the RAID level, number of Virtual drives (arrays) and the Capacity of the array, and then click on “Next”. 6. On confirmation window, click on “Finish“. Standalone NVR Quick Installation Guide Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 9: Software Configuration

    SOFTWARE CONFIGURATION CREATE DISK VOLUMES Use Windows Disk Management to create disk volumes so that INR can access the available storage space. 1. In Windows Search Box, search and enter “computer management”. 2. Select “Disk Management”, right-click on a disk title and select “Initialize Disk”, choose “GPT”...
  • Page 10 Note For detailed instructions on choosing the RAID types and troubleshooting hard disk issues, please refer to System Administrator’s manual provided on ACTi Download Center at http://www.acti.com/downloadcenter Standalone NVR Quick Installation Guide Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 11: Create Users

    LOG IN On Windows Destop, double-click on to enter NVR interface. Input the default account and password to log in. Account: admin Password: 123456 “123456” is the default password of NVR administrator’s user account. For security reasons, please remember to replace it with a new one. CREATE USERS On NVR screen, click Setup button to enter Setup page and then Users tab.
  • Page 12: Add Cameras

    SELECT STORAGE DRIVES 1. Go to Setup page and then Storage tab. 2. On Disk Drive List, de-select C drive and select other storage drives. 3. Click “Apply“. ADD CAMERAS 1. Go to Setup page and then Devices tab. 2. Click “Add”. 3. Choose your desired search m e t h o d...
  • Page 13: Configure Camera Settings

    4. Click “Apply“. Note If you have any question during system installation, please feel free to contact our engineers via ACTi Customer Help Desk platform at http://www.acti.com/CHD Standalone NVR Quick Installation Guide Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 14: Customize Views

    CUSTOMIZE VIEWS 1. Go to Live View page. On top of the screen, click on view tool bar to create a new layout, then click to enter edit mode. 2. Select a layout style. 3. To add a camera view, pull a camera from Camera List to a channel. To add a map view, select a channel and click , upload the map, drag the lower right corner...
  • Page 15 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 16 Due to continuous product improvements, some contents may have changed from the time this documentation was printed. You can download the latest user documentation, which shall prevail over the printed version http://www.acti.com/downloadcenter provided in the package, from www.acti.com V2016.06.17 Available from A1 Security Cameras...
