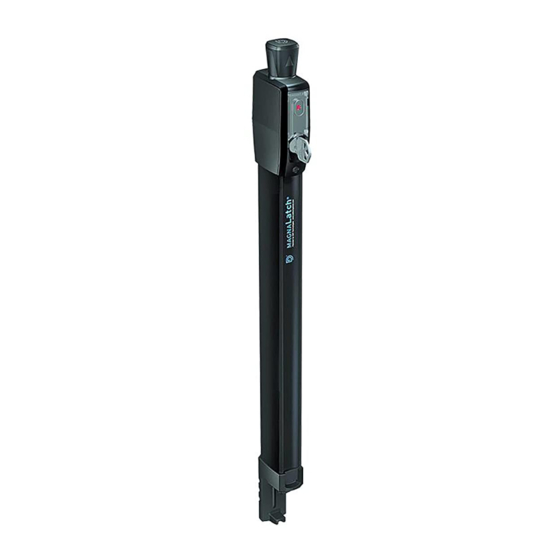

MAGNALATCH RE-KEYING SOP

Important – MAGNALATCH must be unlocked with no key in Lock cylinder

"Important – MAGNALATCH must be unlocked with no key in Lock cylinder"

To remove

cylinder

Lock

To remove Lock cylinder

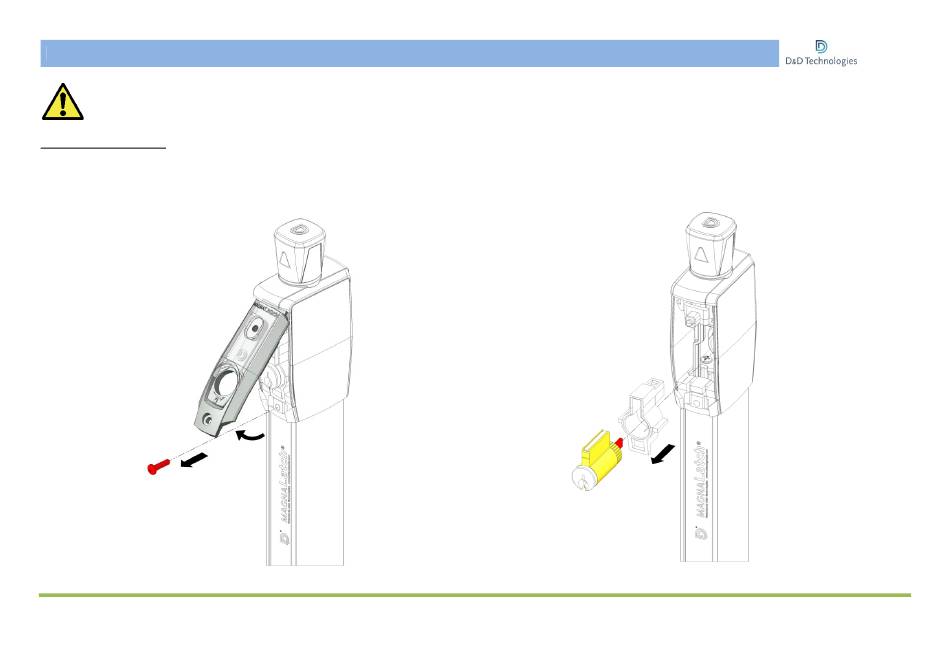

2. Remove lock cylinder and lock chassis

1. Remove security screw (Torx T10 Driver) and front cover

PIS010 27/03/2014

Need help?

Do you have a question about the MAGNALATCH RE-KEYING SOP and is the answer not in the manual?

Page 1 MAGNALATCH RE-KEYING SOP Important – MAGNALATCH must be unlocked with no key in Lock cylinder “Important – MAGNALATCH must be unlocked with no key in Lock cylinder” To remove cylinder Lock To remove Lock cylinder 2. Remove lock cylinder and lock chassis 1.
Page 2 MAGNALATCH RE-KEYING SOP To re-install lock cylinder 4. Place front cover onto top housing and secure front cover with security screw (Torx T10 Driver) 3. Lock tail must be fully turned anti clockwise to the vertical position before inserting into top housing...
Page 3 MAGNALATCH RE-KEYING SOP To Test lock function Test lock function 5. Insert key and turn counter clockwise until the red lock indicator is 1. Insert key and turn counter clockwise until the red lock indicator is shown. Once locked remove key and test the locking function. Then shown unlock and test the product is unlocked.
