ENSURE THE UNIT IS COMPLETELY COOL BEFORE STARTING INSTALLATION
TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND CHILDREN.
DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS. THIS BAG IS NOT A TOY. KNOT BEFORE
INCLUDED IN THIS KIT:
NOTE: All the rock assemblies have slots or openings to fi t over the studs and brackets.

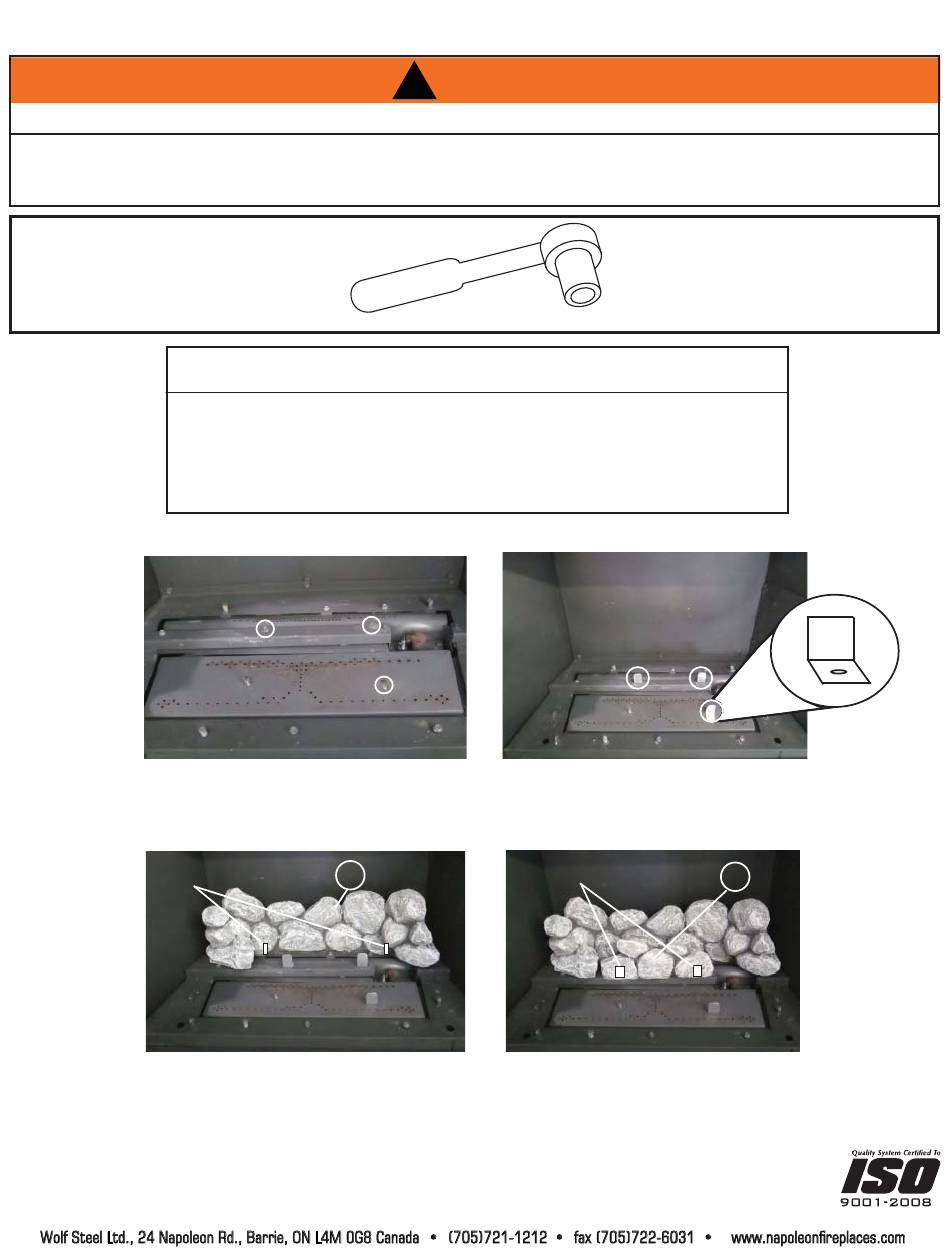

1. Remove the three screws from the
rear log support and burner as shown.
STUDS
3. Place the #1 rock assembly onto the
studs located on the rear log support as
shown.
MKRY3 ROCK ASSEMBLY
!
THROWING AWAY.
YOU WILL NEED:
WRENCH WITH 1/4" SOCKET
ROCK #
PART #
#1
W135-0549
#2
W135-0550
#3
W135-0551
#4
W135-0552
#5
W135-0553
#6
W135-0554
1
WARNING
DESCRIPTION
REAR ROCK ASSEMBLY
MID REAR ROCK ASSEMBLY
MID RIGHT ROCK ASSEMBLY
MID LEFT ROCK ASSEMBLY
FRONT LEFT ROCK ASSEMBLY
FRONT RIGHT ROCK ASSEMBLY
2. Secure the three brackets as shown.
Make sure the two rear brackets face
towards the front of the fi rebox and the
bracket on the burner faces the rear.
BRACKETS
4. Place the #2 rock assembly onto the
two corresponding brackets in front of
the #1 rock assembly as shown.
2
W415-1230 / 10.08.13
Advertisement
Related Manuals for Napoleon MKRY3
Summary of Contents for Napoleon MKRY3
- Page 1 MKRY3 ROCK ASSEMBLY WARNING ENSURE THE UNIT IS COMPLETELY COOL BEFORE STARTING INSTALLATION TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS. THIS BAG IS NOT A TOY. KNOT BEFORE THROWING AWAY.
- Page 2 STUD BRACKET STUDS 5. Place the # 3 rock assembly on the 6. Place the # 4 rock assembly onto the bracket and stud located onto the right two corresponding studs on the left side of the burner cover as shown. of the burner cover as shown.
