- Page 1 INVERT MIX MANUAL V.1 MALEKKOHEAVYINDUSTRY.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY 2 ... -
Page 3: Specifications
SPECIFICATIONS FORMAT: DIMENSIONS: 15mm deep - EuroRack Standard MAX CURRENT: 20mA 3 ... -
Page 4: Installation
INSTALLATION 1. Remove module from packaging 2. Power down your modular synthesizer and disconnect the power cable from the wall outlet. 3. Attach the included power cable to the moduleʼs power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case: 4. -
Page 5: Description

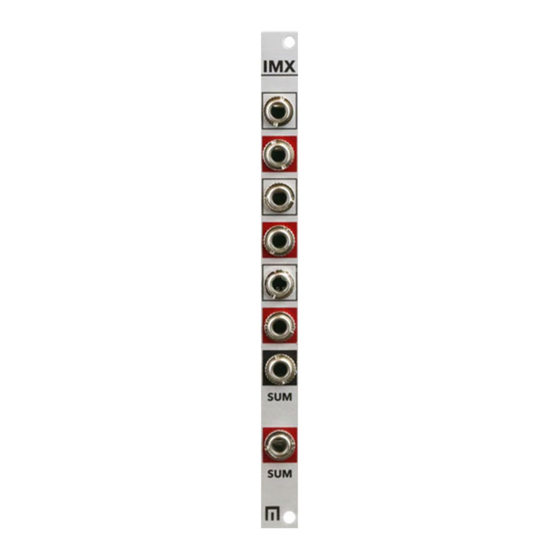

DESCRIPTION MALEKKO INVERT MIX includes 3 audio and/or cv inputs, 3 inverted outputs as well as an inverted sum and non-inverted sum outs. Invert waveforms, envelopes etc. • Three signal inverters (inputs) • One inverted sum output • One non-inverted sum output •... -
Page 6: Diagram
INVERTED SIGNAL OUTPUTS REGULAR AUDIO OR CV INPUTS NON- INVERTED SUM OUTPUT INVERTED SUM OUTPUT 6 ... -
Page 7: Warranty
WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
