Summary of Contents for Malekko SYNC

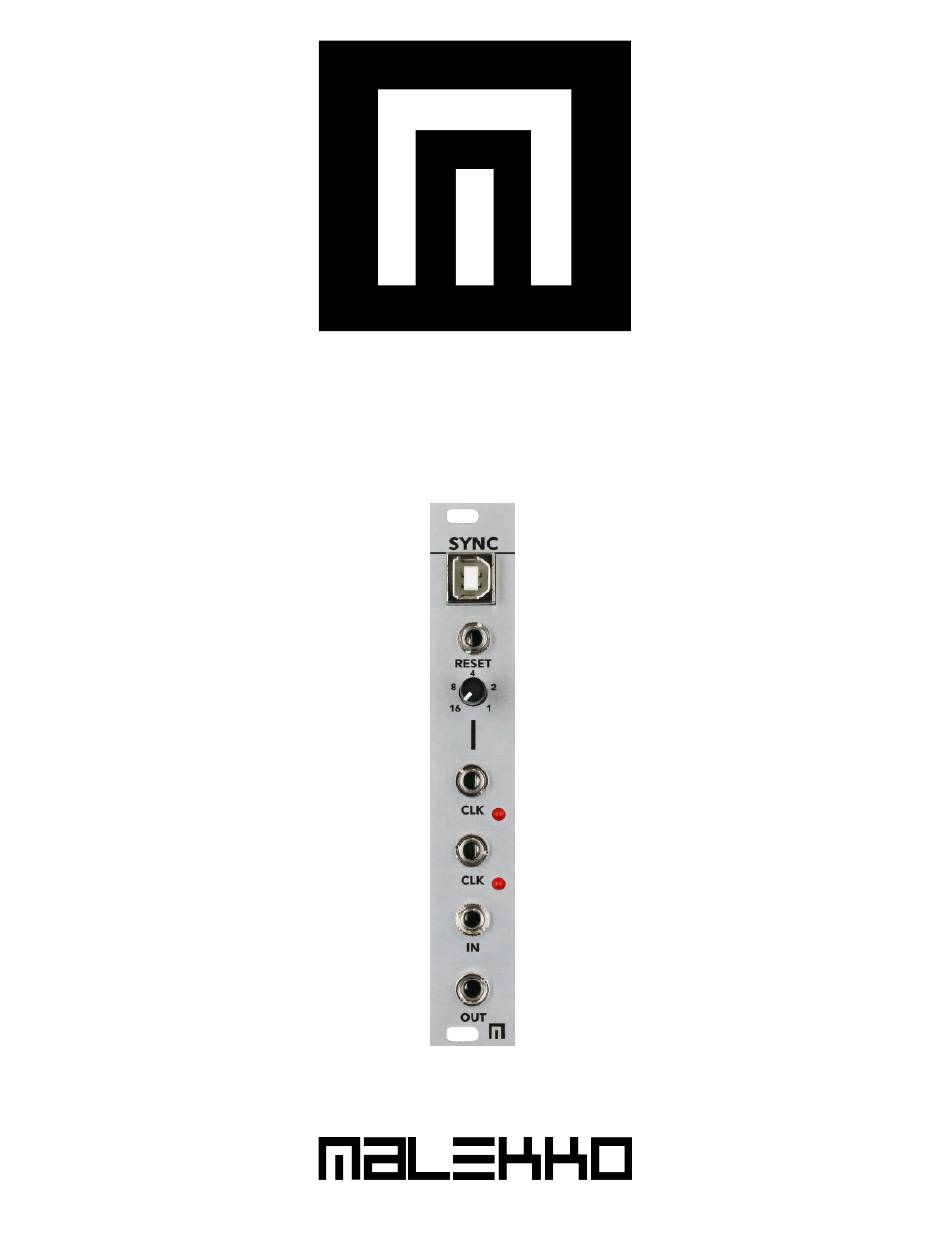

- Page 1 SYNC MANUAL V.1 ww w. m a l ek k o h e a vy i n d u s try.co m 814 SE 14TH AVENUE PORTLAND OR 97214...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION OVERVIEW SYNC TO MAC SYNC TO WINDOWS SYNC TO OTHER DEVICES EXPANDER MODULES WARRANTY MALEKKOHEAVYINDUSTRY.COM... -
Page 3: Specifications
SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 4HP, 30mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm jacks): 0-5V Logic I/O MAX CURRENT: +12V: 37mA -12V: 6mA +5V: n/a PG. 1 MALEKKOHEAVYINDUSTRY.COM... -
Page 4: Installation
Power up! If your case does not turn on properly then you have installed the module incorrectly. Simply power down and make sure to follow the diagram when reconnecting the module. 6-PIN CONNECTION TO MALEKKO CV/GATE AND DIN SYNC: POWER:... -
Page 5: Description
DESCRIPTION Sync your modular to your computer or other hardware MIDI gear via USB or Malek- ko Pink MIDI/3.5 cable (included). Class compliant on both PC and Mac. FEATURS INCLUDE: USB connection (class compliant) Reset output Fixed 1/16 note clock output Variable clock output MIDI in (over 3.5mm) -
Page 6: Overview
OVERVIEW SYNC directly with your MAC, PC or hardware gear via USB. If you are syncing directly to hardware you will need a RESET output Type B to B cable. Variable clock divider for Variable Clock output VARIABLE CLOCK OUT... -
Page 7: Sync To Mac
5. Launch your DAW and select “Malekko Midi” as your MIDI clock out (make sure your DAW is set to transmit MIDI clock). When you hit play on your DAW, MIDI clock is then send to SYNC. SYNC then distributes clock to both clock outputs. -
Page 8: Sync To Windows
SYNC TO WINDOWS 1. Make sure your case is powered up and that SYNC is connected to your computer via USB. It is recommended to connect directly without using a usb hub. 2.Once connected you should hear a chime indicating that SYNC has loaded the class compliant MIDI driver (you would need to have your computer volume turned up to hear the chime). -
Page 9: Sync To Other Devices
SYNC TO OTHER DEVICES Connect directly to the output of an external device that sends clock over USB. Connect directly to the output of an external device that sends clock over MIDI. PG. 7 MALEKKOHEAVYINDUSTRY.COM... -
Page 10: Expander Modules
When the DIN SYNC module, when attached to the same busboard as the SYNC module, adds 4 clocked DIN SYNC outputs for gear such as the Roland TB303, TB808 etc. Each output can be divided up to 4 x. -
Page 11: Warranty
WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
