MUTE 4 MANUAL V.1
MALEKKOHEAVYINDUSTRY.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUTE 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Malekko MUTE 4

Summary of Contents for Malekko MUTE 4

  • Page 1 MUTE 4 MANUAL V.1 MALEKKOHEAVYINDUSTRY.COM...
  • Page 2 TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY   2  ...
  • Page 3 SPECIFICATIONS FORMAT: 3HP EuroRack DIMENSIONS: 35mm deep MAX CURRENT: 20mA   3  ...
  • Page 4 INSTALLATION 1. Remove module from packaging 2. Power down your modular synthesizer and disconnect the power cable from the wall outlet. 3. Attach the included power cable to the moduleʼs power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case: 4.

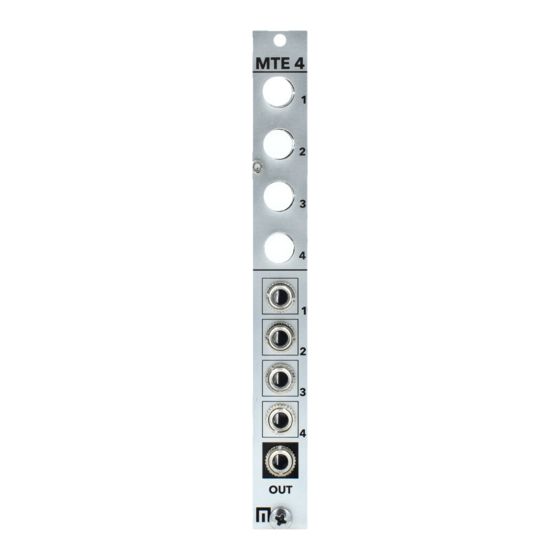

  • Page 5 DESCRIPTION MALEKKO MUTE 4 is a 3hp module with 4 mutable channels for both audio and cv inputs, each with back-lit buttons for easy on-the-fly muting and a mixed output. • Four channel unity mixer with latched mute switches • Odd hp size •...
  • Page 6 MUTE BUTTONS (LED indicates mute “ON”) REGULAR AUDIO OR CV INPUTS AUDIO OR CV MIXED OUTPUT   6  ...
  • Page 7   WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
