- Page 1 SND/RTN MANUAL V.1 ww w. m a l ek k o h e a vy i n d u s try.co m 814 SE 14TH AVENUE PORTLAND OR 97214...
- Page 2 SND/RTN MANUAL V.1 TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION HOW TO USE EXAMPLE WARRANTY MALEKKOHEAVYINDUSTRY.COM...
- Page 3 SND/RTN MANUAL V.1 SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 4HP, 30mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm jacks): 0-5V Logic I/O MAX CURRENT: +12V: 21mA -12V: 19mA +5V: n/a PG. 1 MALEKKOHEAVYINDUSTRY.COM...
- Page 4 SND/RTN MANUAL V.1 INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case.

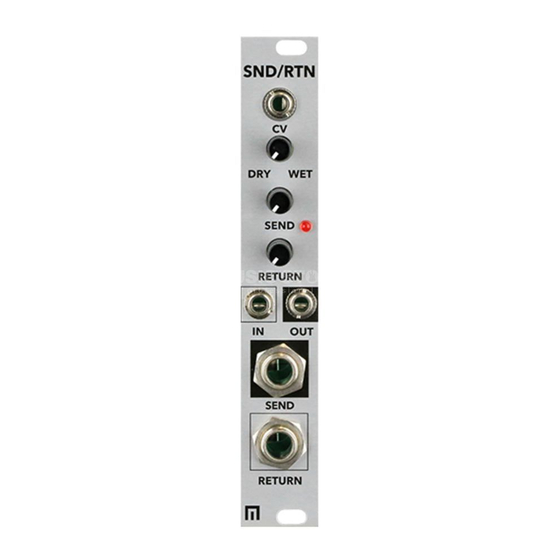

- Page 5 SND/RTN MANUAL V.1 DESCRIPTION The SND/RTN module includes ¼ jacks for instrument and line level input with CV input to modulate the dry/wet mix as well as manual control over send and return levels (and a clip LED). Marry Malekko pedals and other outboard effects with your modular in 4hp.
- Page 6 SND/RTN MANUAL V.1 HOW TO USE EXAMPLE CV INPUT to modulate DRY/WET amount DRY/WET manual control SEND level control CLIP RETURN LED RETURN level control INPUT from modular OUTPUT to modular PG. 4 MALEKKOHEAVYINDUSTRY.COM...
- Page 7 SND/RTN MANUAL V.1 WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
