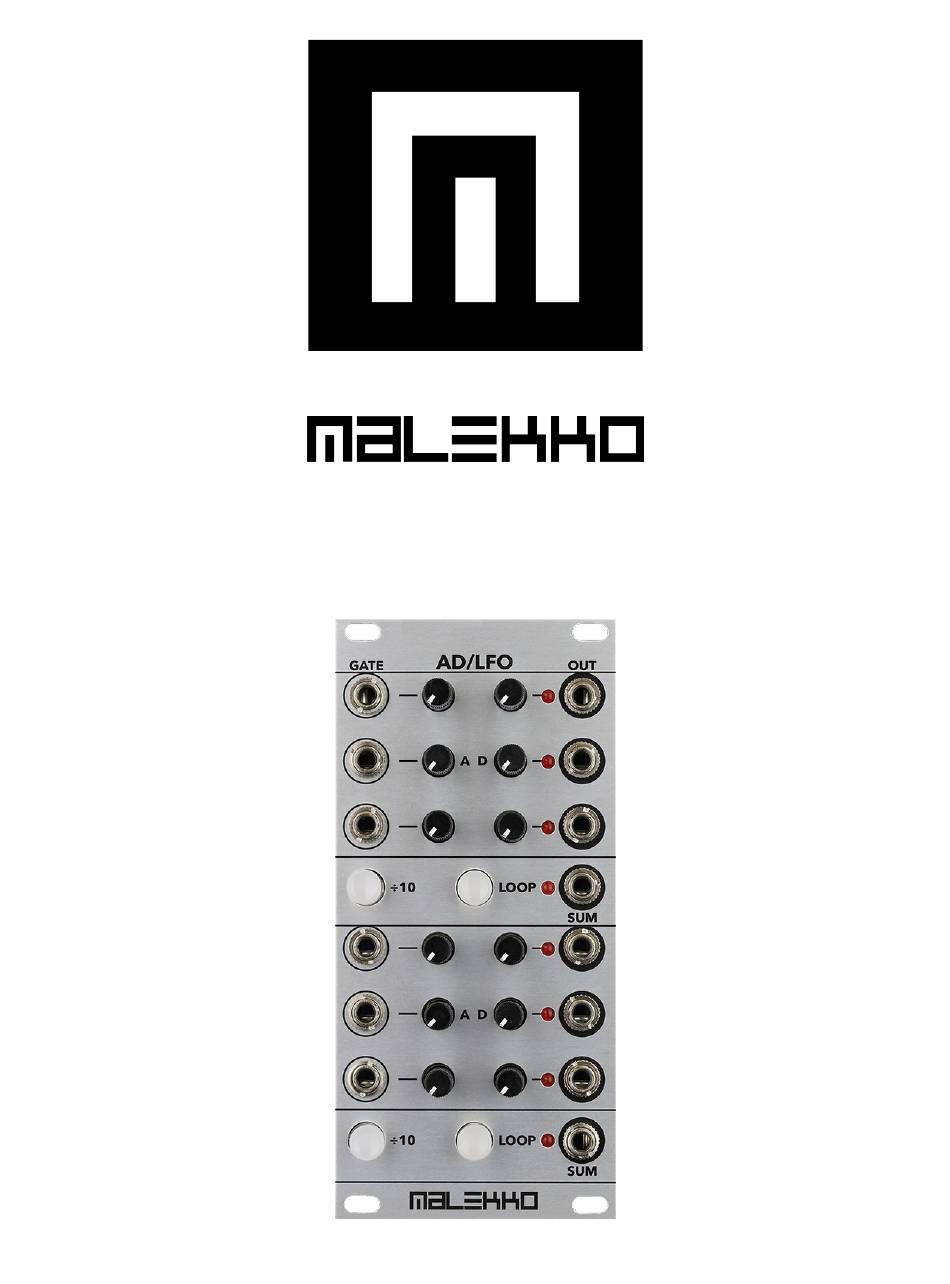

- Page 1 AD/LFO MANUAL V.1...
- Page 2 AD/LFO MANUAL V.1 TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION QUICK OVERVIEW INPUTS AND OUTPUTS WARRANTY MALEKKOHEAVYINDUSTRY.COM...
-
Page 3: Specifications
AD/LFO MANUAL V.1 SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 12HP, 12mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm jacks): 0-5V Logic I/O MAX CURRENT: +12V: 90mA -12V: 20mA +5V: n/a MALEKKOHEAVYINDUSTRY.COM... - Page 4 AD/LFO MANUAL V.1 INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case. If you have a bi-colored ribbon cable the red stripe should be on a same side with a bold white line on a pcb.
- Page 5 AD/LFO MANUAL V.1 DESCRIPTION The AD/LFO is a digital powerhouse of envelopes and low frequency oscillators, totaling 6 independent function generators plus 2 SUM outputs. Each bank of three can be 10 times longer with a touch of the /10 button. This module was designed with...
- Page 6 AD/LFO MANUAL V.1 INPUTS AND OUTPUTS GATE INPUT DECAY CONTROL ATTACK CONTROL LED INDICATORS /10 BUTTON: Pressing the “/10” button OUTPUT makes all 3 envelopes in that section 10 times longer. LOOP: Pressing the loop button will cause the attack stage to start as...
- Page 7 AD/LFO MANUAL V.1 WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use –...
