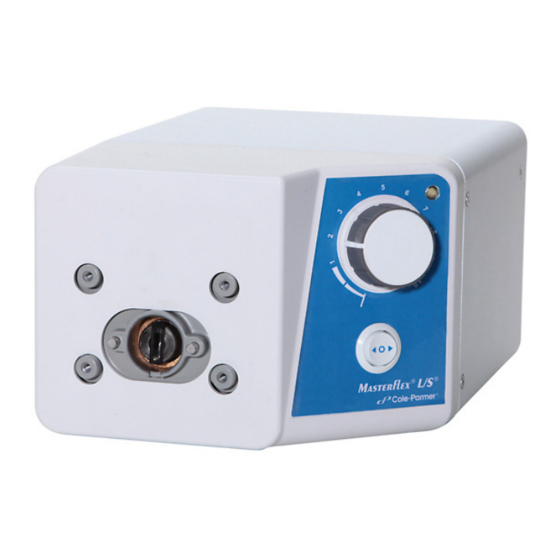

- Page 1 ® ® OPERATING MANUAL: PUMP DRIVES Model Nos. 07555-00 07555-05 07555-10 07555-15 A-1299-1175 Edition 01 (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-549-7600 • 1-847-381-7050 E-mail: techinfo@coleparmer.com www.masterflex.com • www.coleparmer.com...
- Page 2 Preface Preface © 2018 Cole-Parmer Instrument Company LLC. All rights reserved. Trademarks bearing the symbol in this publication are registered in the U.S. and in other countries. ® Cole-Parmer Pump Drives Operating Manual...
- Page 3 Preface Safety Precautions SAFETY WARNINGS: Remove power from the pump before attempting any maintenance. PRECAUTIONS Remove power from the pump before any cleaning operation is started. Repeatedly applying AC line power to the drive as a means of starting the pump can cause drive hardware damage and will void the warranty.
- Page 4 WARNING: This product is not designed for, nor intended for use in patient connected applications; including, but not limited to, medical and Product Use dental use, and accordingly has not been submitted for FDA Limitation approval. This product is not designed for, nor intended for use in hazardous duty areas as defined by ATEX or the NEC (National Electrical Code);...
-
Page 5: Table Of Contents
Table of Contents Page Section 1 INTRODUCTION ..........1-1 Variety of Pump Heads Accepted . - Page 6 Figures Figures Page View of Rear Drive ..........2-2 View of Drive Front Controls .
-
Page 7: Introduction
Introduction Section 1 Variety of Pump Mount up to 1 (600 rpm) or 2 (200 rpm) MASTERFLEX® L/S® Pump Heads and all MASTERFLEX-compatible Pump Heads. Heads Accepted Cole-Parmer Pump Drives Operating Manual... -
Page 8: Installation And Setup
Installation and Setup Section 2 Setup and Drive WARNINGS: Tubing breakage may result in fluid being sprayed from pump. Use appropriate measures to protect operator and Operation equipment. Turn Pump System off before removing or installing tubing. Fingers or loose clothing could get caught in drive mechanism. 1. - Page 9 Section 2 Installation and Setup A. IEC Power Entry module B. Power Switch C. External Start/Stop Connector Figure 2-1. View of Rear Drive A. Pump Head Mounting Holes B. 1-Turn Speed Control C. Power Indicator D. Direction Switch Figure 2-2. View of Drive Front Controls Cole-Parmer Pump Drives Operating Manual...
-
Page 10: External Start/Stop Control
Section 2 Installation and Setup External Start/Stop WARNING: Repeatedly applying AC line power to the drive as a means of starting the pump can cause drive hardware damage Control and will void the warranty. Use the control inputs located on the 9 pin connector to start and stop the pump;... -
Page 11: Maintenance
Maintenance Section 3 Motor Brush WARNING: Remove power from the pump before attempting any maintenance. Check/Replacement 1. Place the ON/OFF SWITCH in the off position. 2. Disconnect the AC power input line cord from the AC receptacle. 3. Remove the screws from each side of the housing and lift off the housing. -
Page 12: Motor Gear And Brush Replacement
Section 3 Maintenance Motor Gear and Brush Replacement A. 20-600 rpm gear assembly (included in service kit 07553-06) B. Gasket C. Cap D. Motor Brush E. 7-200 rpm gear set (included in service kit 07553-11) F. Gear case cover assembly Figure 3-1. -
Page 13: Fuse Replacement
Section 3 Maintenance Fuse Replacement CAUTION: Replace the fuse only with one of the same type and rating. The fuse rating and type are stated on the rear panel. 1. Place the power switch in the off position. 2. Disconnect the AC power input line cord from the receptacle. 3. -
Page 14: Replacement Parts
Section 3 Maintenance Replacement Parts Description Part Number Gear Service Kit (600 rpm) 07553-06 Gear Only (600 rpm) 07553-09 Gear Service Kit (200 rpm) 07553-11 Brushes (set of 2) 07520-06 Jumper Kit (set of 2) 07555-90 Fuse (07555-05, 15) T1.0A 250V; 4 × 20 mm 77500-58 Fuse (07555-00, -10) T2.0A 250V;... -
Page 15: Accessories
Accessories Section 4 Description Part Number Footswitch with 6 ft. DB-9 male connector 77595-35 Handheld Remote Controller 07528-80 DB-9 External Control Connector 07595-45 DB-9 Remote Control Cable, 25 ft. 07595-47 Cole-Parmer Pump Drives Operating Manual... -
Page 16: Specifications
Specifications Section 5 Output: Speed: 600 rpm models 20 to 600 rpm 200 rpm models 7 to 200 rpm Torque output, Maximum: 600 rpm models 90 oz-in (13 kg•cm), 270 oz-in Starting 200 rpm models 180 oz-in (26 kg•cm), 540 oz-in Starting Speed regulation: All models Line ±2% F.S. - Page 17 Section 5 Specifications Environment: Temperature, Operating: All models 0° to 40°C (32° to 104°F) Temperature, Storage: All models –25° to 65°C (–13° to 149°F) Humidity (non-condensing): All models 10% to 90% Altitude: All models Less than 2000 m Pollution Degree: All models Pollution Degree 3 (Indoor use -- Sheltered locations)
-
Page 18: Warranty
Warranty, Product Return and Section 6 Technical Assistance Warranty Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. This product is warranted against defects in material or workmanship, and at the option of the manufacturer or distributor, any defective product will be repaired or replaced at no charge, or the purchase price will be refunded to the purchaser, provided that: (a) the warranty claim is made in writing... -
Page 19: Product Return
Section 6 Warranty, Product Return and Technical Assistance Product Return To limit charges and delays, contact Cole-Parmer or authorized seller for authorization and shipping instructions before returning the product, either within or outside of the warranty period. When returning the product, please state the reason for the return. - Page 20 ® ® (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-549-7600 • 1-847-381-7050 www.masterflex.com • www.coleparmer.com E-mail: techinfo@coleparmer.com *EN809 manufactured by: Cole-Parmer Instrument Company LLC 28W092 Commercial Avenue Barrington, IL 60010 Printed in U.S.A.
