OPERATING MANUAL
FIXED FLOW PUMP DRIVES
07540-01
07540-02
07540-06
07540-12
07540-20

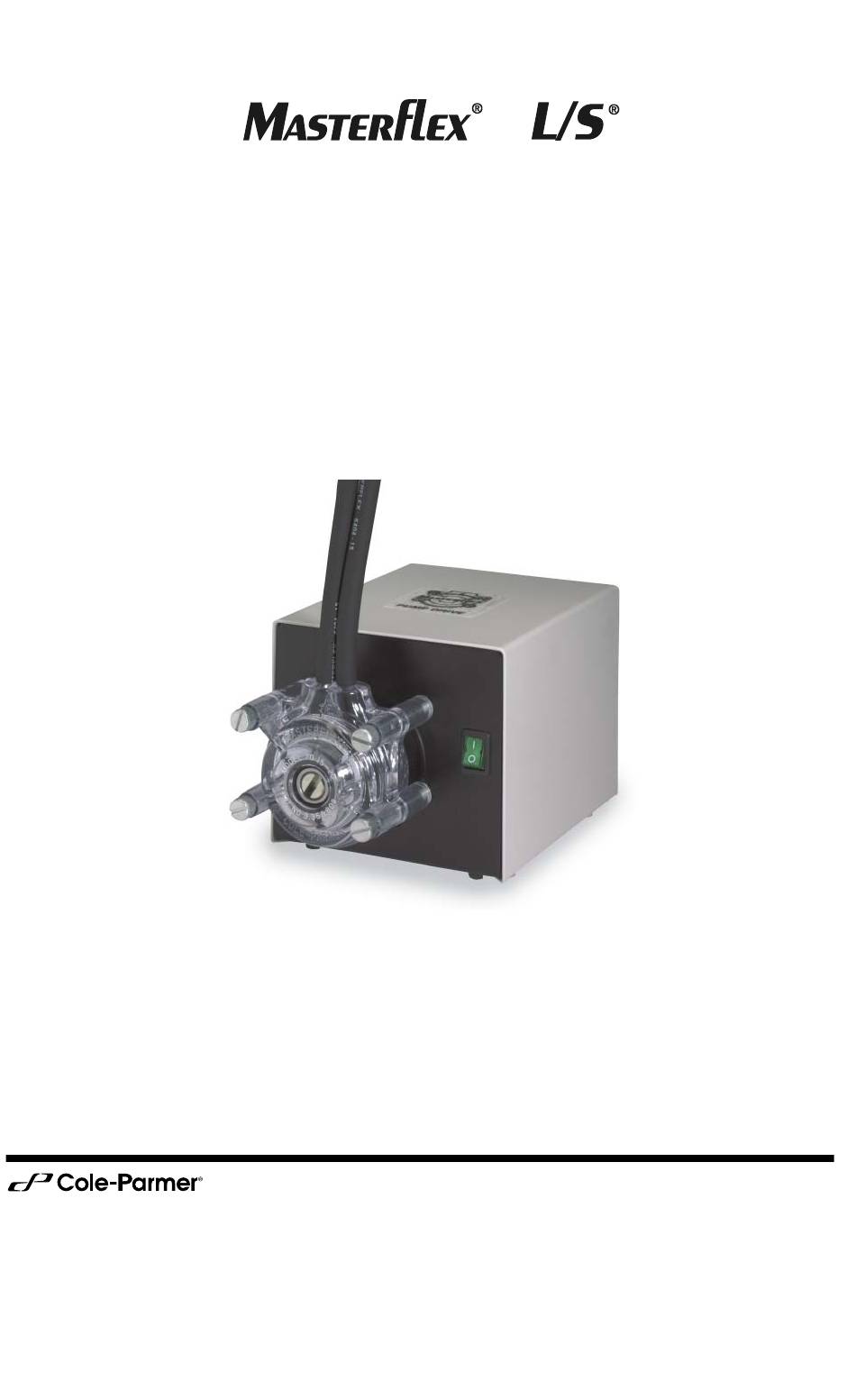

Note: Drive is shown with optional Pump Head.
Model Nos.
07540-30
07540-60
07542-01
07542-02
07542-06
07542-12
07542-20
07542-30
07542-60
A-1299-1034
Edition 07
Advertisement
Table of Contents
Related Manuals for Cole Parmer MasterFlex L/S
Summary of Contents for Cole Parmer MasterFlex L/S
- Page 1 OPERATING MANUAL FIXED FLOW PUMP DRIVES Model Nos. 07540-01 07540-30 07542-12 07540-02 07540-60 07542-20 07540-06 07542-01 07542-30 07540-12 07542-02 07542-60 07540-20 07542-06 Note: Drive is shown with optional Pump Head. A-1299-1034 Edition 07 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (Outside U.S.) • (847) 549-7600 (Local) www.masterflex.com •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Title Page SAFETY PRECAUTIONS ................3 INTRODUCTION AND GENERAL DESCRIPTION ........4 SETUP AND OPERATION ................. 4 MAINTENANCE ..................5 Cleaning ....................6 SPECIFICATIONS ..................6 WARRANTY ....................8 PRODUCT RETURN .................. 8 TECHNICAL ASSISTANCE ................ 8 SAFETY PRECAUTIONS WARNINGS: To reduce risk of electrical shock, connect only to a properly grounded, grounding-type receptacle. -
Page 4: Introduction And General Description
INTRODUCTION AND GENERAL DESCRIPTION ® ® The MASTERFLEX fixed flow drives provide continuous fixed speed pumping of fluids while power is supplied. Different models provide various speeds as summarized: Pump Heads Model# Description Speed (rpm) Accepted 07540-01 L/S Fixed Speed, 115V AC, 60 Hz 07540-02 L/S Fixed Speed, 115V AC, 60 Hz 07540-06... -
Page 5: Maintenance
The following sketch shows the dimensional outline of the drive: MAINTENANCE WARNING: Remove power from the drive before attempting any maintenance. The rear motor bearing should be given two drops of #20 non-detergent oil every three months. Do not over oil. Clean off any accumulated dust or dirt. The drive gear/motor assembly can be replaced if necessary. -
Page 6: Cleaning
Cleaning WARNING: Remove power before any cleaning operation is started. Keep the drive enclosure clean by using a mild detergent solution. Never im- merse or use excessive fluid when cleaning the drive. SPECIFICATIONS Output: Model# Speed Torque Pump Heads Current (rpm) (in-oz) (kg-cm) (Amps) - Page 7 SPECIFICATIONS (Cont.) Environment: Operating Temperature: 0°C to 40°C Storage Temperature: –25°C to 65°C Humidity: 10% to 90% non-condensing Altitude: Less than 2000 meters Pollution Degree: Pollution degree 2 (indoor usage—lab,office) Construction: Dimensions (L x W x H): 15.2 cm x 13.4 cm x 11.8 cm (6 in x 5.3 in x 4.6 in) Weight: 3 kgs (6.5 lbs)
-
Page 8: Warranty
WARRANTY Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. The Manufacturer warrants this product to be free from significant deviations from published specifications. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer.
