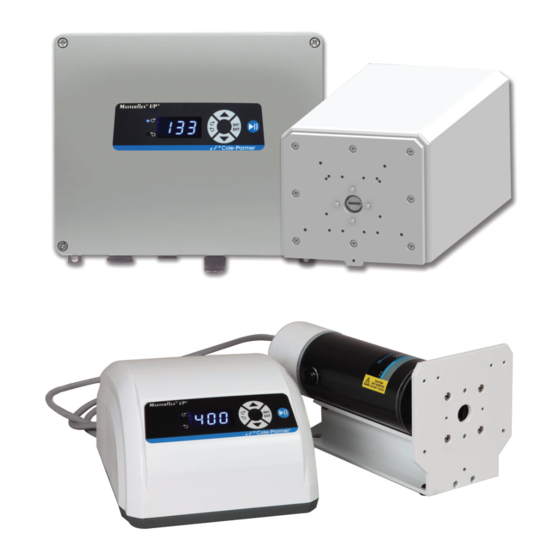

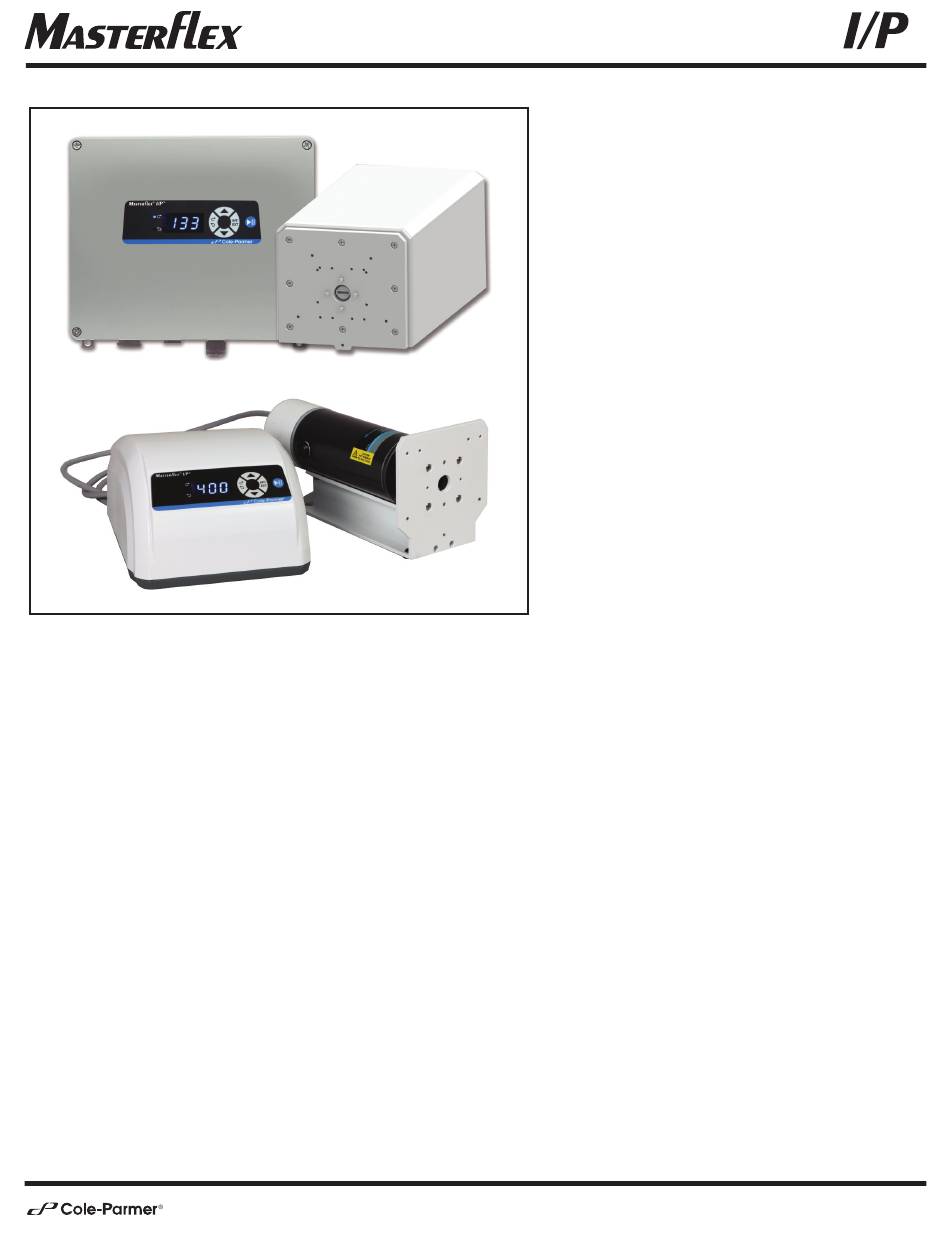

- Page 1 ® ® OPERATING MANUAL: PRECISION ® VARIABLE SPEED MODULAR DRIVES Model Nos. 07591-20 07591-30 A-1299-1084 Edition 01 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) • 11 (847) 549-7600 (Outside U.S.) (847) 549-7600 (Local) • www.masterflex.com • techinfo@coleparmer.com...
- Page 2 NORPRENE, PHARMED and TYGON – Reg TM Saint-Gobain Performance Plastics Corp. Trademarks bearing the symbol in this publication are registered in the U.S. and in other countries. ® original instructions A-1299-1084 18658 130125 First Edition ECR/ECN DATE DESCRIPTION Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual...
- Page 3 This product is not designed for, nor intended for use in hazardous duty areas as defined by ATEX or the NEC (National Electrical Code); including, but not limited to use with flammable liquids. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual...
- Page 4 CAUTION: Replace the fuse only with one of the same type and rating. The fuse rating and type are stated on the rear panel. 7. The I/P Precision Variable-Speed Modular Drives should not be used in outdoor or hazardous locations. I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer...
-
Page 5: Table Of Contents
Technical Assistance ..........8-2 Cole-Parmer... - Page 7 Motor Brush Replacement ........4-3 Cole-Parmer...
-
Page 9: Introduction
High volumetric efficiency allows operation in metering or dosing applications where high accuracy is required. • Handles extremely viscous fluids. • Availability of tubing and tube materials that are suitable for food and pharmaceutical use. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 10: Controls, Indicators And Connectors
DB-9 (Round 18 pin for NEMA 4X) connector. G. IEC Power Entry Module/Line Cord: Utilized to connect line cord to controller. See page 4-1 for alternative cords. H. Motor Connector: Utilized to connect motor to controller. I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer... -
Page 11: Installation And Setup
Mounting the Mount Pump Head and load tubing (See Pump Head datasheets within this CD). Check to ensure that rollers are clean and free of defects. Pump Head Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 13: Operation
20 minutes for more stable flow conditions. NOTE: When in INTernal mode, pump will start automatically after brownout, powerout or if drive was turned off using the power switch while pump was running. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 14: Keypad Lockout Enable/Disable
6 (blue) Chassis (Earth) Ground 9 (violet) NOTE: Colors for NEMA 4X are those of the Remote Cable, Cat. number MN-77300-32. Figure 3-1. DB-9 and NEMA 4X Pin Configuration with Wiring Scheme I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer... -
Page 15: External Inputs
AC line to the drive to start and stop the motor can cause drive hardware damage. The drive is designed to use control input signals that will start and stop the motor. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 16: Transmitter Type
Transmitter Type ISA Type 2 (Two-wire) Transmitter Receiver Power Supply ISA Type 3 (Three-wire) Transmitter Receiver Power Supply ISA Type 4 (Four-wire) Transmitter Receiver Power Supply Figure 3-2. Typical 4-20 mA wiring I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer... -
Page 17: Maintenance
Line Cord (115V), United States 50001-68 Line Cord, Israel 50001-69 Line Cord, Europe 50001-70 Line Cord, England 50001-72 Line Cord, Switzerland 50001-74 Line Cord, Italy 50001-76 Line Cord (230V), United States 50001-78 Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 18: Fuse Replacement
3. Remove and check the fuse and replace if defective. Figure 4-1. Fuse Replacement Item Description IEC Power Entry Module / Line Cord T6.3A (5 × 20 mm) Fuse – Do Not Substitute I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer... -
Page 19: Motor Brush Replacement
6. Connect AC line cord to AC receptacle. Cleaning Remove power from the pump before any cleaning DANGER: operation is started. Keep the drive enclosure clean with mild detergents. Do not immerse or use excessive fluid when cleaning. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 21: Troubleshooting
Unit will turn on but display would Verify that the incoming voltage meets the required dim and pump will not spin minimum of 90Vrms. Unit vibrates excessively when Check that the tubing was loaded properly. pump is running Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 23: Accessories
3. DB-9 Remote Control cable, 25 FT. 07595-47 4. Motor Extension cable, 9 FT. 07557-51 Model 07591-30 only 1. Washdown Footswitch 07595-43 2. Washdown Remote Control cable, 25 FT. 77300-32 3. Motor Extension cable, 9 FT. 07557-51 Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 25: Specifications
Less than 6562 ft (2000 m) Pollution Degree: 07591-20 Pollution degree 2 (indoor use–lab, office) 07591-30 Pollution degree 3 (Indoor use-sheltered locations) Noise Level: <70 dBA @ 1 meter with Pump Head Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 26: Section 7 Specifications
CAN/CSA-C22.2 No. 61010-1, second edition, including Amendment 1, or a later version of the same standard incorporating the same level of testing requirements. (For CE Mark): EN61010-1: (EU Low Voltage Directive) and EN61326: (EU EMC Directive) I/P Precision Variable-Speed Modular Drives Operating Manual Cole-Parmer... -
Page 27: Warranty
WARRANTY. IN NO EVENT SHALL THE MANUFACTURER OR DISTRIBUTOR BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES. The warranty period for this product is two (2) years from date of purchase. Cole-Parmer I/P Precision Variable-Speed Modular Drives Operating Manual... -
Page 28: Product Return
Warranty, Product Return and Technical Assistance Product Return To limit charges and delays, contact Cole-Parmer or authorized seller for authorization and shipping instructions before returning the product, either within or outside of the warranty period. When returning the product, please state the reason for the return. - Page 30 ® ® ® ® 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (Outside U.S.) (847) 549-7600 (Local) www.masterflex.com techinfo@coleparmer.com Printed in U.S.A.
