IF2008 ETH
4.3
LED Overview
1
3

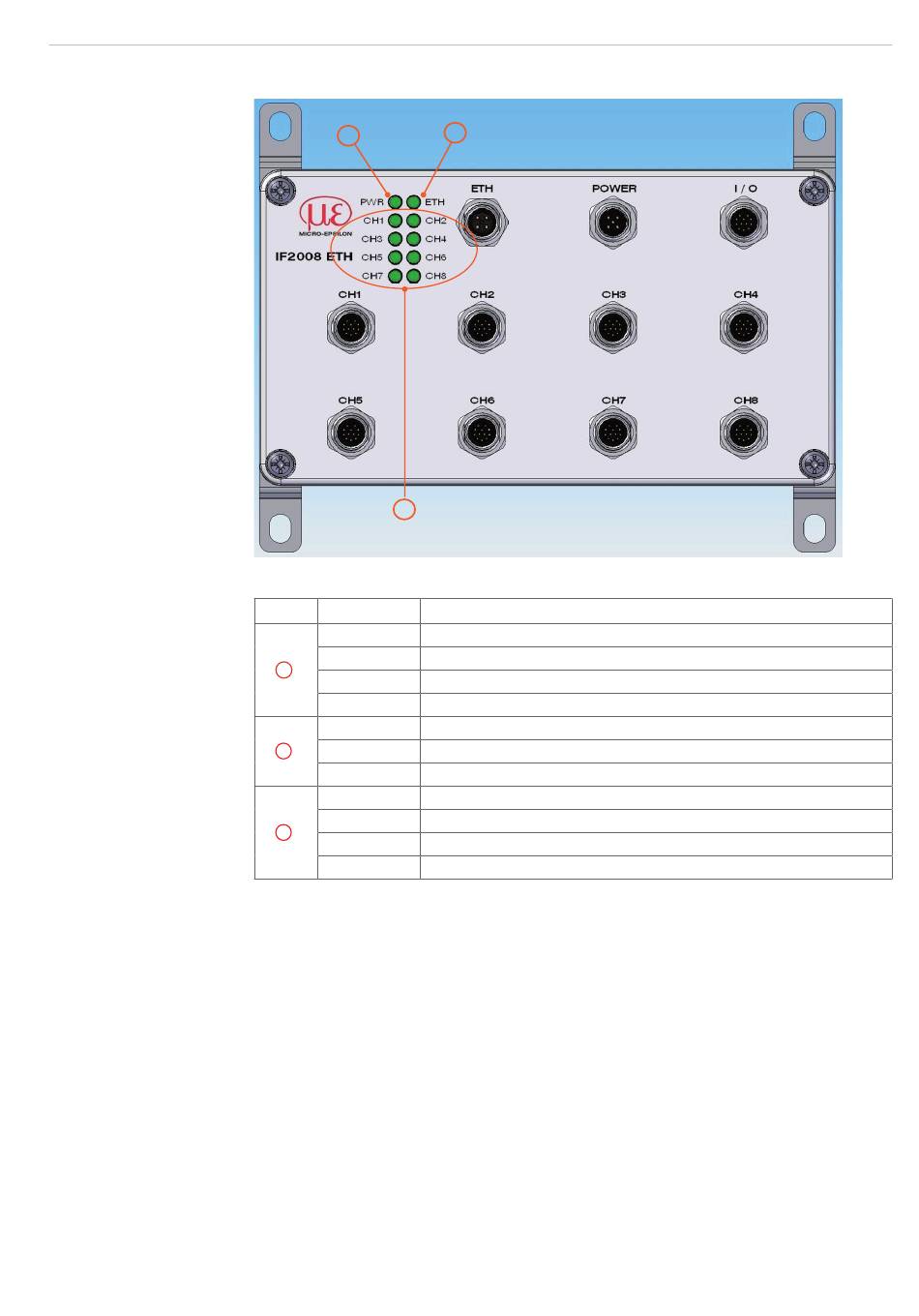

Fig. 9 Status LEDs IF2008 ETH interface module
LED
LED color
Description
Off
Power supply off
Green
Interface module is ready for operation
1
Orange
Interface module is in bootloader/flash mode
Red
Initialization of the interface module
Off
No Ethernet connection
Orange
Connection between PC and interface module (100 Mbps)
2
Flashing
Data transmission between PC and interface module
Off
No sensor connected
Green
No sensor/encoder selected
3
Orange
Interface set for sensor
Red
Interface set for sensor
Fig. 10 Description of multi-color status LED
2
Page 11
