PergoTex

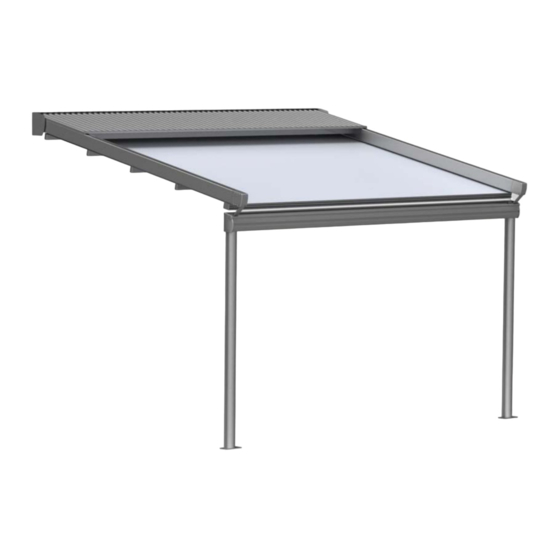

PergoTex Type A
Important guidelines for the end user.
Please read these instructions and observe their contents and warnings before using
the equipment for the first time.
Item number 115024-0000
Version 4
12.07.2013
Maintenance Instructions and Directions for Use
Folding patio roof with
electric motor
Subject to technical modifications
Page 1/14
ENGLISH
Advertisement
Table of Contents
Related Manuals for weinor PergoTex Type A
Summary of Contents for weinor PergoTex Type A
- Page 1 PergoTex Maintenance Instructions and Directions for Use PergoTex Type A Folding patio roof with electric motor ENGLISH Important guidelines for the end user. Please read these instructions and observe their contents and warnings before using the equipment for the first time.
-
Page 2: Table Of Contents
5.6 Cleaning PVC fabrics ......................11 Rectifying Faults ......................13 6.1 Troubleshooting ........................13 Retrofits ........................13 Noise Level ......................... 13 Other weinor products ....................14 Item number 115024-0000 Subject to technical modifications Version 4 12.07.2013 Page 2/14... -
Page 3: Notes On Maintenance Instructions And Directions For Use
Maintenance Instructions and Directions for Use Notes on Maintenance Instructions and Directions for Use You have chosen a high-quality weinor product. Many years of experience and the use of low- wear, corrosion-resistant metals and high-strength plastics vouch for the product. -
Page 4: Product Description
Side channel Angle bracket locking bar Trapezium-shaped sheeting Guttering Fabric roller end cap Fabric attachment profile outside Bracket for PergoTex Type A Fabric attachment profile inside Frame profile 80x50x2 U profile 40x40x40x2 Beaded profile Wall bracket Carriage Wind protection seal strip... -
Page 5: Description Of Construction And Function
PergoTex Maintenance Instructions and Directions for Use Description of construction and function The PergoTex is a sun and rain protection unit with a fabric that opens to protect against the sun and rain. The PergoTex can be fitted to any angle of pitch ranging between 8° and 45° depending on the projection and installation height of the awning. -
Page 6: General Safety Notes
Please read and observe the general safety notes contained in this section. Your weinor PergoTex has been made with great care; however, your PergoTex is and always will be a sun and rain protection unit and must therefore be retracted immediately during storms, snowfalls or strong winds (at and above wind strength 8). -
Page 7: Use In Winds
PergoTex Maintenance Instructions and Directions for Use Use in winds The PergoTex complies with the requirements of the wind resistance class shown on the EC declaration of conformity printed in the instructions for assembly Instructions. The wind resistance class achieved after assembly of the awning is heavily dependent on the type and number of fixings used as well as the installation surface involved. -
Page 8: Use In Rain
PergoTex Maintenance Instructions and Directions for Use Use in rain For best results when using the PergoTex and for best rain drainage, the PergoTex should be set at an angle of more than 8°. Automatic controls A PergoTex must never be left unattended when open. The automatic controls may fail under extreme conditions (e.g. -
Page 9: Specific Safety Notes
PergoTex Maintenance Instructions and Directions for Use Specific safety notes DANGER Personal injury Risk of personal injury due to improper use of the PergoTex. Please read and observe the specific safety notes contained in this section. Checking and monitoring the PergoTex For personal safety, it is important that these safety notes are complied with and kept in a safe place. -
Page 10: Maintenance And Care Instructions
PergoTex Maintenance Instructions and Directions for Use Maintenance and care instructions Cleaning and maintenance work in the opening space of the PergoTex There is a risk of motorised sun protection units being activated unintentionally. Always ensure that the PergoTex is completely switched off (e.g. by disconnecting the fuse) before performing maintenance and cleaning work (e.g. -
Page 11: Pergotex Care
PergoTex Maintenance Instructions and Directions for Use PergoTex care Our recommendation: Your PergoTex has been designed for low maintenance. In the unlikely event that it should fail, the service work should be performed by a specialist company. If lubricants are required during the service work, use greases, sprays or liquids that contain elements of Teflon, PTFE or comparable agents. - Page 12 PergoTex Maintenance Instructions and Directions for Use At the end of the washing operations, the PVC-coated product must be rinsed with abundant water in order to remove every trace of detergent. The last rinse has to be carried out with a diluted 2% solution of sodium hypochlorite.
-
Page 13: Rectifying Faults
PergoTex Maintenance Instructions and Directions for Use Rectifying Faults Only eliminate errors which can be rectified through maintenance and care. This includes, for example, removing foreign bodies. All other defects or malfunctions should only be repaired by your specialist retailer or partner. Please bear in mind that faults which are not repaired properly will compromise the safety of your awning system. -
Page 14: Other Weinor Products
Other weinor products Your dream patio any time of year No matter what you want to use your patio for, weinor has the right product for you – Pergotex, patio roofs, Glasoase®, conservatories. Your weinor partner is an experienced specialist who will gladly provide you with advice on everything from planning to realising your product.
