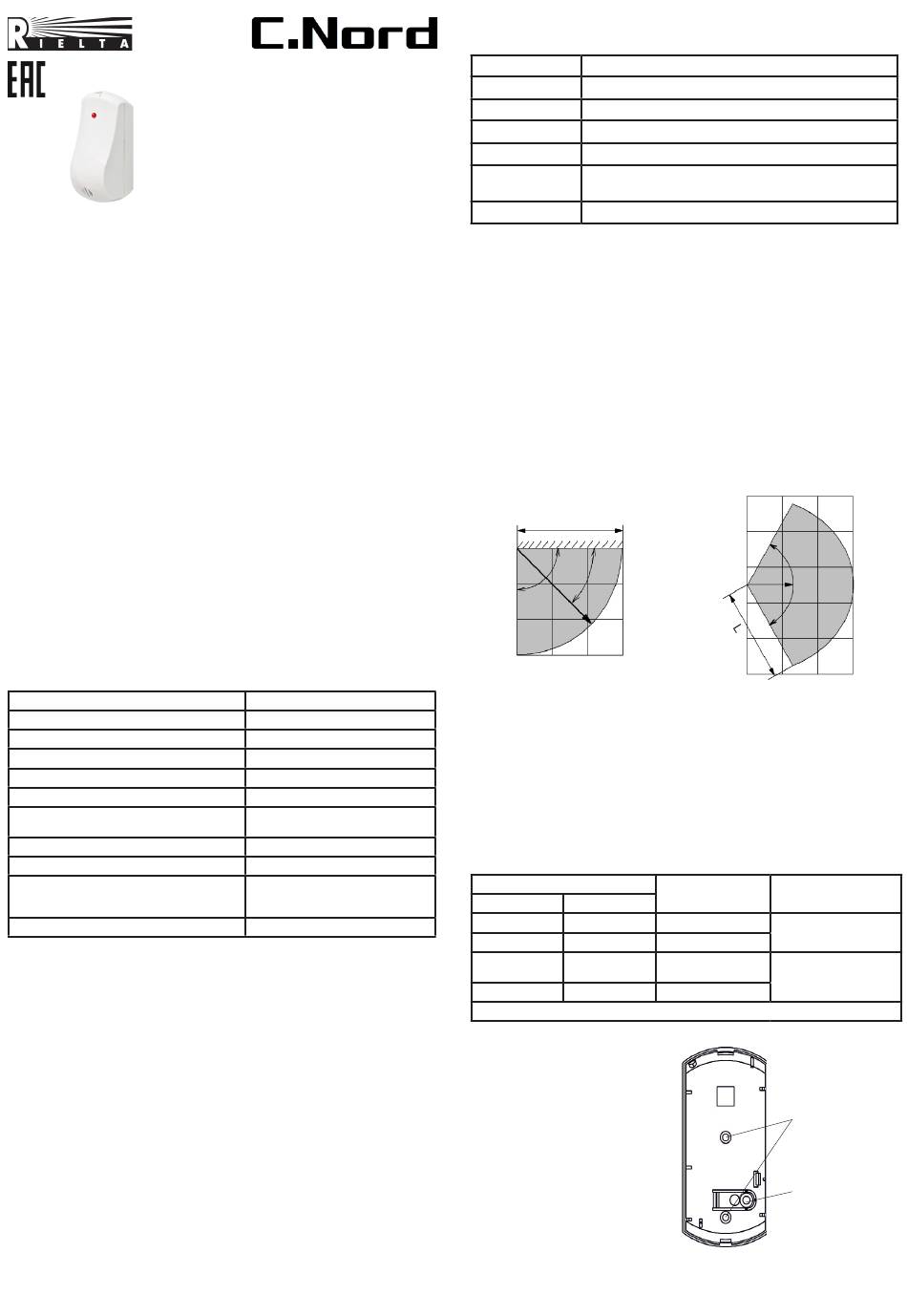

Rielta C.Nord CN-Glass Installation Manual

Introduction

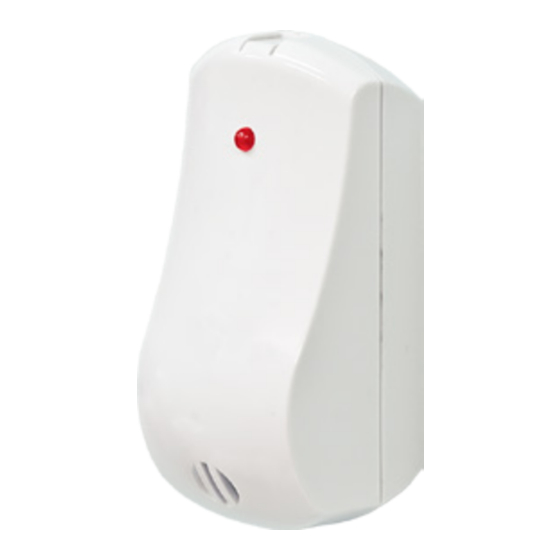

The detector «CN-Glass» (hereinafter, the Detector):
- is intended for detecting destruction of all known kinds of
construction glass: common, quenched, patterned, armored, multilayer
and laminated with polymer film, glass units, as well as hollow glass
blocks installed in structural units (openings) and/or interior elements
of closed spaces;
- transmits status messages via two-way communication in the 433.05
to 434.79 MHz frequency range to the control panel (hereinafter, CP)
supporting the «CN-Contact-R» wireless communication protocol;
- provides case and wall tamper protection;
- may be installed on the wall, ceiling or on a pier between the
monitored glass and curtains;
- ensures remote monitoring of controlled glazed structures of any
shape;
- provides multilevel microprocessor signal processing and functional
self-test;
- adjusts the sensitivity depending on the interference situation at
the monitored facility;
- operates at one of 4 possible operating frequencies;
- automatically switches over backup frequency in case of impairment
of interference conditions at the main operating frequency;
- is able to switch on and off an identification and status LED indication
by the CP relevant command.

Field of Application

The Detector can be applied in offices, shops, museums, exhibition
halls, banks, accommodation rooms, etc.

Specifications

Table 1
Parameter
Maximum detection range
Angle of coverage
Installation height
Operating temperatures range
Relative air humidity at 25 °С
Broadcast period (programmed during the
CB binding)
Weight (without power batteries)
Dimensions
Battery life (under normal conditions, and
messages transmitting period not less than
30 sec)
IP rating

Binding with the CP

The binding procedure is intended for the logging of the Detector in
the CP (repeater), assignment it's number, address and the operating
frequency chosen for this CP, initialization of the data coding system
and exchange of service information.
1 Install the СR2032 backup power supply battery into the holder
located on the reverse side of the Detector PCB.
2 Install the PCB into the Detector case, thereafter install the СR123А
main power supply battery.
3 LED indicator blinking green displays the Detector readiness to the
binding procedure.
In case of the LED indication absence, the Detector should be
transferred to the «Binding» mode by closing the «RESET» contacts
until the green LED indicator starts blinking.
4 In case of successful binding with the CP (repeater), the LED
indicator blinks red for 1 sec.
5 The binding procedure is limited up to 100 sec, whereupon the
Detector transfers to the sleep mode. To restart the «Binding» mode
close «RESET» contacts for a short time.
Note – The zone number is determined in accordance to the CP
user manual.
WIRELESS GLASS BREAK
DETECTOR
«CN-Glass»
Installation Guide
Value
6 m
120
о
Figures
at least 2 m (see
from minus 20 to +45 °С
up to 90 %
10 sec to 10 min
maximum 0.1 kg
maximum 105 x 50 x 40 mm
up to 3 years
IP30

LED Indication

Table 2
Detector Status
«
Binding» mode
«Alarm»
«Tamper»
«Identification»
«Adjustment»
« »
Interference

Choosing the Detector Location

Before installing the Detector, get acquainted with the following
requirements:
- it is recommended to install the Detector at least 2 m height (see
examples of installation in Figures 3 – 7);
- when choosing the place of installation, the Detector detection zone
location must be taken into account (Figure 1);
- distance (L) between the Detector and the farthest point of the
monitored glass should not exceed 6 m;
- during joint operation with an active ultrasonic Detector, distance
between Detectors must be not less than 1 m;
- the entire surface of the monitored glass should be available within
the direct visibility of the Detector.
The Detector must be located within the radio visibility zone of
it's repeater; therefore, it is recommended to estimate the quality of
communication with the CP (repeater).
Side View
L
90
о

Communication Quality Appraising

To estimate the communication quality:
1 Place the Detector on it's installation place;
–
3 7)
2 Press the Detector tightly to a hard surface in order to close the
tamper output;
3 Remove the Detector cover. Whereupon the Detector transmits
a tamper message (the LED indicator lights red) and then the LED
indicator displays communication quality with the CP by a three-grade
scale (see Table 3).
Table 3
LED Indication
Color
Green
Green
Green
Red
*) – «CN-Repeater»

Installation of the Detector

Remove the cover and PCB
of the Detector and fasten
the Detector with the help of
screws. Choose the place of
the Detector installation and
mark out its fastenings using
the Detector base (Figure 2)
for the purpose. Fix the base
by the screws (supplied).
T o e n s u r e t h e t a m p e r
control, the first screw should
be screwed into the opening (1)
at the base center, the second
one must be screwed in a hole
under the wall tamper (2).
Indication
LED indicator blinking green periodically
LED indicator single time blinking red
«
see section Communication Quality Appraisal
LED indicators alternate blinking red and green
LED indicator blinking green every 1 sec under the DIP-
« »
switch 3 is ON
the LED indicator lights up green
45 о
Figure 1 – Detection Pattern
Communication
Quality Appraisal
Mode
Three blinks Excellent
Two blinks Good
One blink Communication
established
Four blinks No communication
1
2
Figure 2 – The Detector Base
»
Top View
120
о
Recommendations
Install the Detector at
this place
Choose another place
for installation or use a
repeater*)
Main fixation holes
for Detector
installation on the
mounting surface
Tamper clip hole
