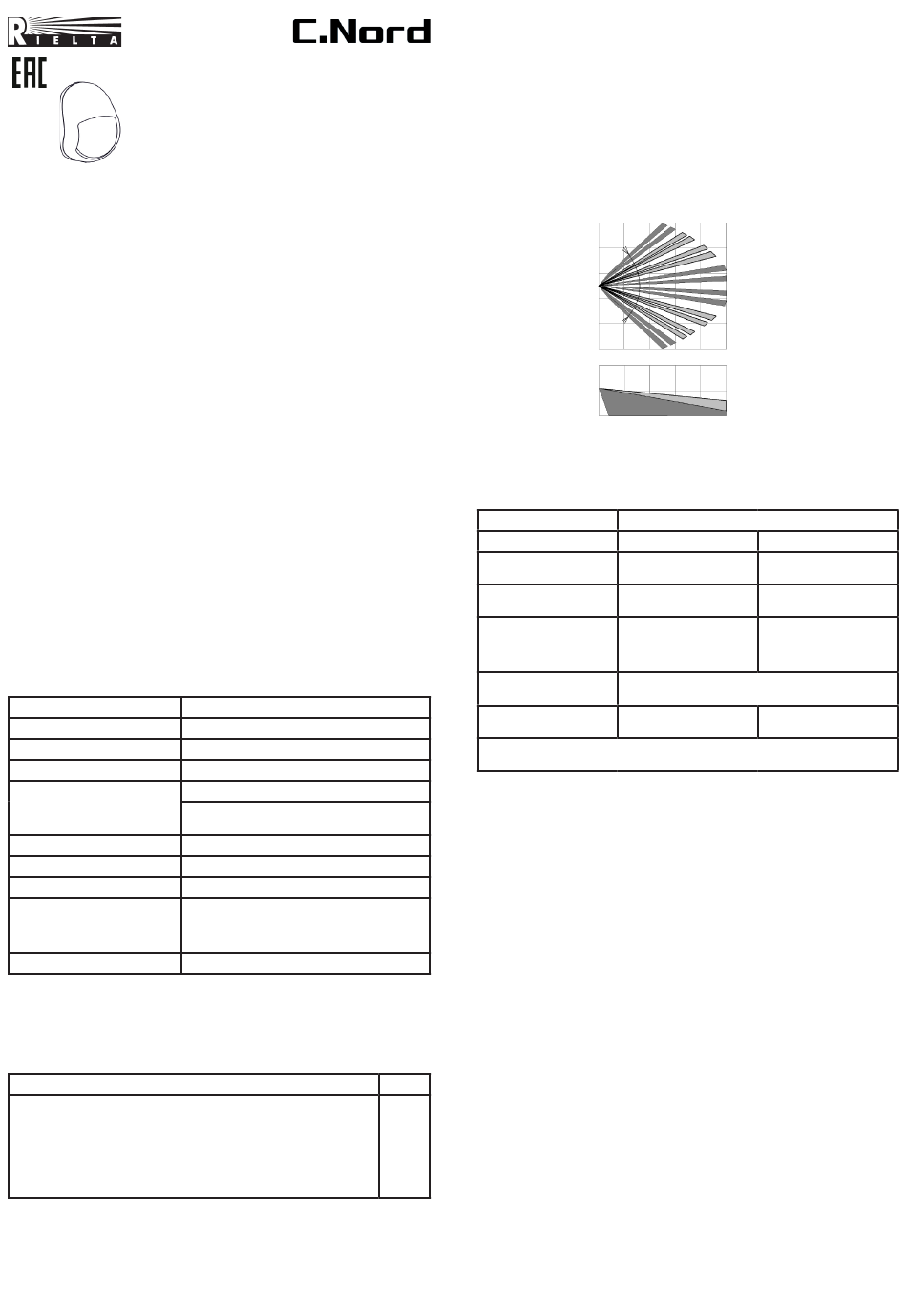

Rielta C.Nord CN-PIR Installation Manual

WIRELESS PASSIVE INFRARED
DETECTOR WITH PET IMMUNITY
1 Introduction

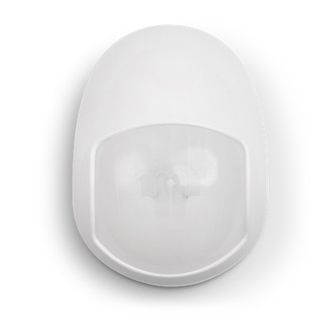

Wireless passive infrared detector «CN-PIR» (hereinafter, the Detec-
tor) is intended for detecting intrusion into a closed protected space
and generating an alarm message.
The Detector highlights:
- generates status messages via a two-way wireless channel
within the 433.05 434.79 MHz frequency range according to
—
«CN-Contact-R» wireless two-way data exchange protocol;
- is intended to operate as a component of a system that is opera-
ted by any control panel (hereinafter, CP) supporting «CN-Contact-R»
wireless two-way data exchange protocol;
- ensures case tamper protection;
- is resistant to the ambient light impact and radio interference;
- does not generate false alarms caused by the movement of:
a) short-haired pets weighting up to 20 kg (with temperature
contrast 8 °С);
b) long-haired pets weighing up to 40 kg (with temperature
contrast 6 °С);
- the Detector is installed directly on a wall or in a corner of a room.
2 Features of the Detector
- Dual-element pyrodetector.
- Distortions preventation in the detection zone by means of
spherical lens.
- Pet immunity.
- Protection against ingress of insects to the pyroelectric.
- Pet immunity adjustment (10, 20 or 40 kg pet weight).
- Automatic switching to a backup operating frequency in case of
an imperfect interference situation on the main one.
- Built-in main and backup power supply.
3 Specifications
Table 1
Features
Detection zone size
Detection zones
Maximum detection range
Pet immunity
Operating temperature
Dimensions, maximum
Weight, maximum
Battery life (under normal
climatic conditions and with a
radio exchange period equal
to at least 30 sec)
IP rating
The Detector is powered by a main lithium power-supply battery
СR123A type and СR2450 backup one.
4 Scope of Delivery
Each Detector unit package contains the items listed in Table 2.
Table 2
Name
Wireless passive infrared detector «CN-PIR»
Screw 3-3х30.016
Wall plug NAT 5х25 SORMAT
СR123A lithium power supply battery
СR2450 lithium power supply battery
Wireless passive infrared detector «CN-PIR». Installation Guide
5 Field of Application
The Detector can be installed in apartments, as well as in shops,
offices, museums and industrial facilities. The Detector may be
installed in premises, that are inhabited by pets weighing up to
40 kg (20 kg).
«CN-PIR»
Installation Guide
Value
10 x 10 m
8 long-range zones, 4 short-range zones
10 m
Jumper «10kg» installed — 10 kg
Jumper «10kg» removed — 20 kg (contrast
8 °С) or 40 kg (contrast 6 °С)
from minus 20 °С to +55 °С
105 х 75 х 56 mm
0.1 kg
up to 5 years
IP41
6 Informativity
The Detector ensures transmission and indication of the following
messages:
- normal state message;
- alarm message;
- tamper message;
- main power-supply low-battery message;
- backup power-supply low-battery message;
- «Binding» mode indication;
- «Identification» mode indication;
- communication quality indication.
7 Detection Pattern
8 LED Indication
Table 3
Detector State
«Binding»
«Alarm»*
«Identification»
«Connection quality»
Binding procedure
completed
Binding procedure
completed
*) — Alarm indication is deactivated 15 min after the Detector cover is closed
and activated after it has been opened or by a command from the CP.
9 Binding with the CP
The Binding procedure is intended for logging of the Detector in the
CP and transmission of service information to it.
9.1 Prepare the CP for the Detector logging in accordance to the
CP manual.
9.2 Install the СR2450 backup power-supply battery into the holder
located on the reverse side of the Detector printed circuit board (PCB).
9.3 Install the PCB into the Detector case, and then install the
СR123А main power-supply battery.
9.4 Blinking of the LED indicator green displays the Detector
readiness for the binding procedure. In case the LED indicator does
not blink, close the «Reset» contacts for a short period.
9.5 After a successful binding with the CP, the LED indicator lights
red for 2 sec.
9.6 The «Binding» procedure is limited to 70 sec. After it expires, the
Detector switches to the sleep mode. To resume the «Binding» mode,
the «Reset» contacts should be temporary closed.
10 Choosing an Installation Place for the Detector
The Detector must be located in the radio-coverage zone of it's
QNT
CP. Therefore, it is advisable to appraise quality of communication
beforehand. The procedure of communication quality appraising is
1 pc.
described in the chapter «Communication Quality Appraising».
2 pcs.
When choosing the Detector installation place, it is advisable
2 pcs.
to take note of the fact that the detection zone may be limited by
1 pc.
non-transparent objects (curtains, houseplants, cabinets, bookcases,
1 pc.
etc.), as well as glass and mesh partitions. There must be no windows,
1 copy
air conditioners, space heaters or heating radiators in the Detector
visibility zone. The presence of furniture items on which an animal may
climb in the detection zone may cause a false alarm.
Recommended installation height
The Detector should be installed at least 0.5 m distance from
electric cables.
90 о
0
2.3 m
0
Figure 1
LED Indication
LED status
LED indicator blinks
green
LED indicator lights red
for at least 0.5 sec
LED indicator blinks
red and green
alternately at 1 Hz
frequency
See «Communication Quality Appraising»
LED indicator lights red
for 2 sec
2.3 m from the floor.
—
Top View
10 m
Side View
10 m
Operation mode
if indication is enabled
by a command from
the CP
