- Page 1 Service Installation instructions Cool box with cooling unit Scope of delivery 4M8.065.402 Instructions for the cool box with 12-V thermo- electric cooling unit Edition 01 Service Department. Technical Information...
-
Page 2: Table Of Contents
....................All rights reserved. No reproduction without prior agreement from publisher. Copyright © 2017 Audi AG, Ingolstadt Printed in Germany... -
Page 3: General Notes
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 General notes This document refers solely to the cool box with cooling unit! Please read and note the WARNING, caution and note descriptions before operating the cool box... -
Page 4: Safety Notes
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Safety notes DANGER! If there are any visible signs of damage to the cool box or electrical system, it should not be put into operation. Do not store any explosive substances in the device, such as spray cans with propellants. -
Page 5: Safety Information Concerning Operation Of The Device
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Safety information concerning operation of the device DANGER! Never touch uninsulated wire with your bare hands. This instruction applies in particular when working with AC power. -
Page 6: Technical Description
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Technical description The cooling unit is suitable for mobile use. It can cool items to or keep items at max. 18 °C/64.4 °F below ambient temperature. It can also heat items to or keep items at a maximum of 60 °C/140.0 °F. -
Page 7: Scope Of Delivery

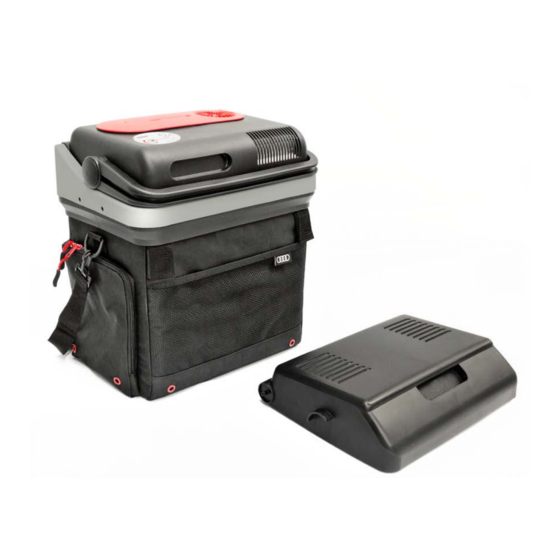

Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Scope of delivery 1 - Cooling unit q Removable/replace- able 2 - Carrying handle 3 - Cool box with fabric cover 4 - Right-hand side pocket 5 - Insulating lid q Removable/replace- able 6 - Mesh bag 7 - Left-hand side pocket 8 - Belt fastening loop... -
Page 8: Overview Of The Cooling Unit
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Overview of the cooling unit 1 - 12-V DC cooling unit with voltage monitor- 2 - Cover 3 - Connecting cable/ connecting plug for 12-V DC cooling unit Plastic cover on the ca-... -
Page 9: General Technical Data And Energy-Saving Tips
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 General technical data and energy-saving tips General technical data Designation Technical data Nominal voltage 12 V Power consumption 47 W(12 V, cooling) 39 W(12 V, heating) Cooling power: Max. -
Page 10: Handling
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Handling Using the cool box with the 12-V cooling unit WARNING Ensure that all objects or goods in the cool box can be cooled or heated to the selected temperature. -
Page 11: Replacing The Fuse In The 12-V Plug
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 – Slide the switch -2- to the "HOT" position -1- (heating) or to the "COLD" position (cooling) -3- toswitch on the cooling unit. Note When switching to the required function, the red LED illumi- nates for "HOT"... -
Page 12: Replacing The Cover
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 – There is a pocket -1- on each side of the fabric cover for storing personal items or the shoulder strap. 6.1.3 Replacing the cover Note ◆... -
Page 13: Cleaning And Maintenance, Warranty, Troubleshooting And Disposal
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Cleaning and maintenance, warranty, troubleshooting and disposal Cleaning and maintenance WARNING Disconnect the device from the on-board power supply before cleaning and maintenance. Caution Never clean the cooling unit under running water or even in the sink. -
Page 14: Disposal
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402 Edition 01 Disposal – Separate the packaging material as far as possible for recycling. Note If the product is to be permanently decommissioned, please check with your local recycling centre or with your dealer regarding the relevant disposal regulations.
