Summary of Contents for Topdon BT MOBILE

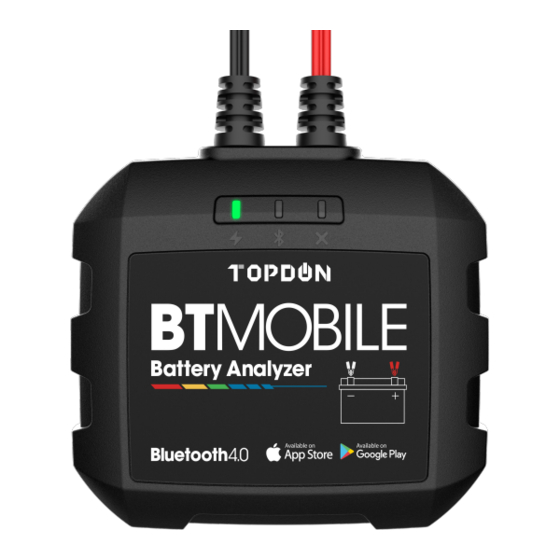

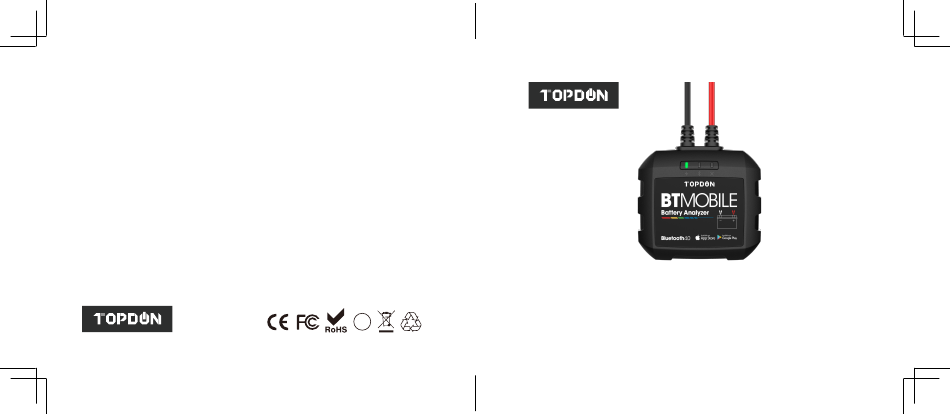

- Page 1 If you have any questions or doubts, please contact us via Hotline 833-629-4832 Email support@topdon.com Website www.topdon.com Facebook @TopdonOfficial Twitter @TopdonOfficial BT MOBILE 6V/12V Wireless Battery and System Tester USER MANUAL...
-
Page 2: Table Of Contents
Content Welcome About Package List Compatibility Features APP Installation & Setup Operation Introduction Technical Specification Warranty Warnings Cautions... -
Page 3: Welcome
Thank you for purchasing the TOPDON BT MOBILE wireless battery tester. Please read and understand this manual carefully before using this product. About BT MOBILE is a 6V/12V wireless battery and system tester, adopting the English most advanced conductance detection technology and reverse polarity... -
Page 4: Compatibility
Compatibility Features Please be noted that battery type and CCA values (Cold Cranking Amp) marked on the battery label. Please refer to it before using BT MOBILE. 1. Regular Flooded 2. AGM Flat plate 3. AGM Sprial 4. GEL 5. EFB... -
Page 5: App Installation & Setup
APP Installation & Setup Installation: Drop-down Menu Function: Download and install the App: “BT MOBILE” in Apple Store or Google Play. NOTE: For Apple devices, update to iOS 8.0 or later; Android devices, OS 4.3 or later. Setup: For the first time, you can choose to register with email or skip login. -
Page 6: Operation Introduction
Operation Introduction Test Introduction • BATTERY TEST: Display SOH (State of Health), SOC (State of Charge), Before Test: Voltage, Current, Rating, and the readable analysis results on App; Before you test a battery in a vehicle, turn off the ignition, all accessories •... - Page 7 Click the matching device name to connect. Select the standard value marked on the battery label, and click “OK” to confirm. NOTE: If the battery is JIS standard, please refer to the table for value Click “Battery Test” Select battery type and click “OK” and select CCA (SAE) as the test standard (please Google JIS to CCA).
- Page 8 Click “Next” and wait a few seconds for results. Select standard value marked on the battery label and click “OK” Drop down to share the results. to confirm.
- Page 9 2. Cranking Test NOTE: The engine and all other accessory loads must be during test. Follow the steps and start vehicle. Click “Cranking Test” on the home screen, and then click “Start”.
- Page 10 3. Charging Test Click “Test” to get the results. NOTE: The engine must be ON during test. Drop down to share the results. Click “Charging Test” on the home screen, then click “Start”.
- Page 11 Click “Next” to get the results. Follow the steps and start vehicle. Drop-down to share the results. Step on the accelerator, increase the number of RPM to 2500, keep it for 5 seconds.
- Page 12 4. System Test (Overall Test for Battery) Select “System Test” in the upper right corner, or swipe the home Click “Start” to enter System Test operation interface and complete all screen left to the system test options. tests (refer to Battery Test, Cranking Test, Charging Test for details). Click right arrow to access to each test result report.
-
Page 13: Technical Specification
Technical Specification Click “System Test” to access to each test result report. Working Temperature: -20°C~65°C (-4°F~140°F) Storage Temperature: -20°C~70°C (-4°F~158°F) Dimensions: 100mm * 87mm * 30mm Weight: 260g Drop down to share test results. -
Page 14: Warranty
DO NOT place the tester near the engine or exhaust pipe to avoid damage from high temperatures. The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 24 DO NOT smoke, cause sparks, or strike matches near the battery months from the date of purchase (Warranty Period). -
Page 15: Cautions
Cautions Use this tester in accordance with these instructions, taking into Q: Is BT MOBILE able to test vehicle alternator? account the working conditions and the work to be performed. A: BT MOBILE can test alternator. Hazardous results could occur if tool is used for purposes not intended. - Page 16 Q: Will this tester work with marine batteries? A: Yes, it can work with marine batteries. Q: What do SOH, SOC, and BAT mean? A: The SOH refers to the “State of Health”. The SOC is the “State of Charge” and the BAT is the “Resistance Value”...
