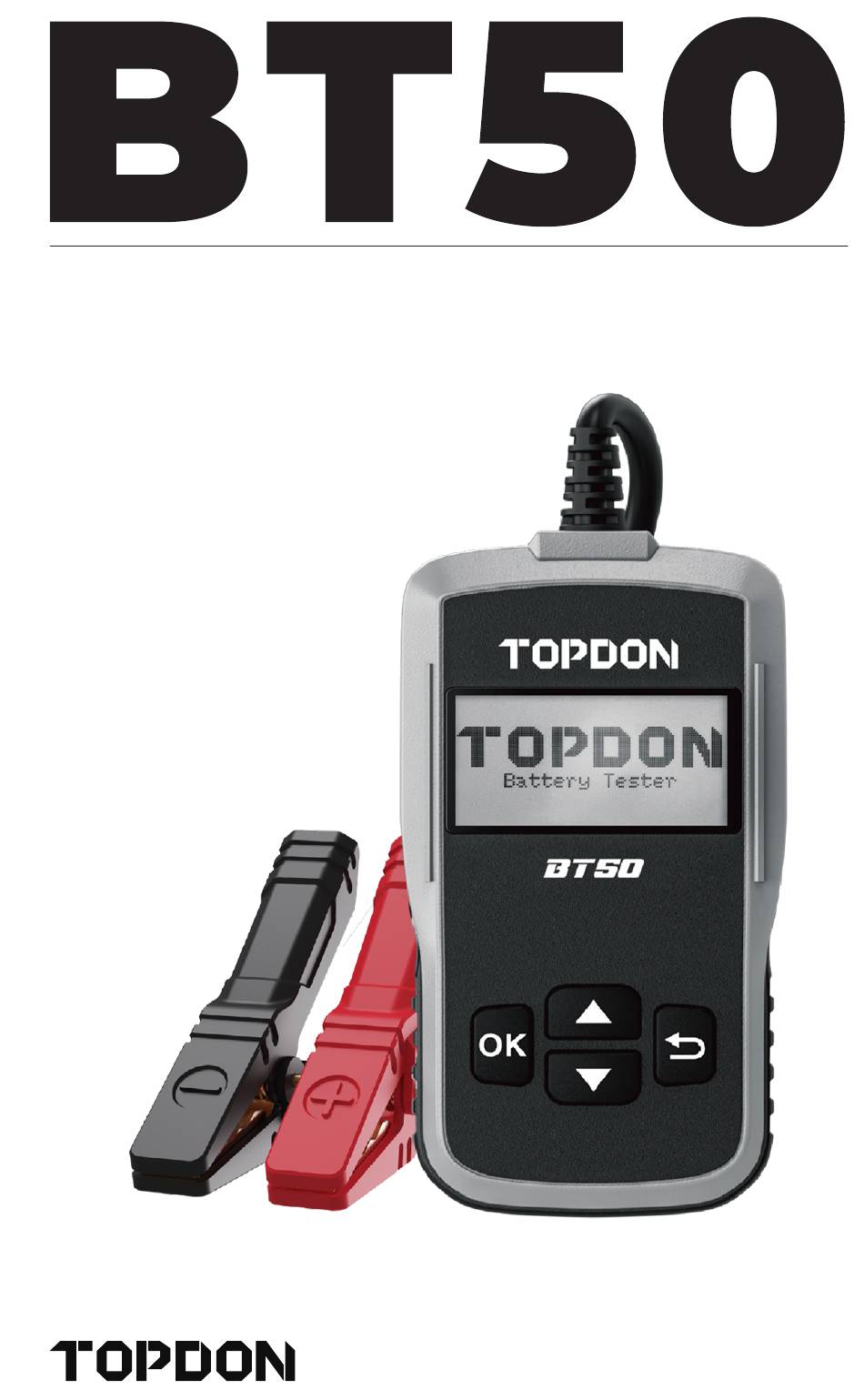

- Page 1 USER MANUAL 12V Battery Tester 100-2000 CCA...
-
Page 3: Table Of Contents
CONTENTS Safety Is Always The ······································· 5 First Priority ······································· 7 Compatibility ······································· 7 What is in the Box ······································· 8 Product Overview ······································· 9 Operation Introduction ······································· 15 ······································· 16 Technical Specification ······································· 17 Warranty... - Page 4 MANUAL SUPPORT IN OTHER LANGUAGES To download the multilingual PDF of the manual, please visit https://www.topdon.com/products/bt50. Alternatively, you can scan the QR Code. •For multilingual user manuals, please scan the QR code. •Für mehrsprachige Bedienungsanleitung scannen Sie bitte den QR-Code.
-
Page 5: Safety Is Always The
SAFETY IS ALWAYS THE FIRST PRIORITY! READ ALL INSTRUCTIONS BEFORE USING For your safety, the safety of others, the product, and the vehicle you are working on, PLEASE, CAREFULLY READ AND MAKE SURE YOU FULLY UNDERSTAND ALL THE SAFETY INSTRUCTIONS AND MESSAGES ON THIS MANUAL. - Page 6 ALWAYS SHIFT THE GEAR TO P (FOR AUTOMATIC TRANSMISSION) OR TO NEUTRAL (FOR MANUAL TRANSMISSION) AND MAKE SURE THE PARKING BRAKE IS ENGAGED. ALWAYS USE A DIGITAL MULTIMETER WITH AT LEAST 10 MEGOHMS OF IMPEDANCE when conducting electrical tests on vehicles to prevent causing damage to on-board electronic components.
-
Page 7: Compatibility
Note: If your vehicle battery is not the battery mentioned above and you are not sure about which type it is, please choose AGM to conduct test, and the error is within 10%. WHAT IS IN THE BOX TOPDON BT50 Vehicle Battery Tester User Manual EN | 7... -
Page 8: Product Overview

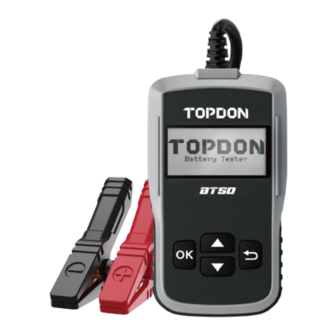

PRODUCT OVERVIEW Buttons Operations Page up, or increase the battery rating values Page down, or decrease the battery rating values Confirm, enter or proceed Cancel, or return to the previous page Black Smart Connect to the negative terminal of the vehicle battery Clamp Red Smart Connect to the positive terminal of the vehicle battery... -
Page 9: Operation Introduction
2. Fsançais 3. Deutsch 4. Español 5. Italiano 6. About 6. РУССКИЙ 1. BATTERY TEST (FOR 12V BATTERY) TOPDON BT50 will test each battery according to the selected actual system standard and rating marked on the battery. EN | 9... - Page 10 1.1 BEFORE TEST The engine and all other accessory loads must be OFF in order to get accurate results. Turn on the vehicle headlamps for 2~3 minutes until the battery voltage drops back to normal value if the battery is just fully charged. 1.2 STEPS 1) Press the "OK"...
- Page 11 4) Press and hold the "▲" or "▼" button to select the battery rating values (specified on the battery rating label). 5) Press the "OK" button to start the battery test. 6) The test result will display as follows: GOOD BATTERY 7) Replace battery if test result displays as below : 2.
- Page 12 2.2 STEPS 1) Press the "OK" button to display the main menu. Then select "2. Cranking Test" and press the "OK" button to confirm. 6. About 2) Start the engine within 30 seconds. Crankingt Test 3) The result will show as below: TIME 1003ms VOLTAGE...
- Page 13 3. CHARGING TEST 3.1 BEFORE TEST The engine must be ON during test. 3.2 STEPS 1) Press the "OK" button to display the main menu. Then select "3. Charging Test" and press the "OK" button to confirm. 6. About 2) Start your engine, then press the "OK" button to conduct a "Ripple Test".
- Page 14 4) The test result will show as below: Please refer to the table below to confirm the test result for 12V batteries. Status Battery Voltage Conclusion ≥15.0V CHARGING HIGH 13.2V~15.0V CHARGING NORMAL Headlamps & A/C OFF (Depress Accelerator) 12.8V~13.2V CHARGING LOW <12.8V NO OUTPUT * For reference only.
-
Page 15: Faq
Note: This battery tester saves the results of the last test, but not all the test data. Q1: Can BT50 test the battery installed in the vehicle? A: Yes, it supports in-vehicle and out-of-vehicle testing. Q2: Is the test result accurate? A: Yes. -
Page 16: Technical Specification
Q5: How do I confirm if my vehicle battery is bad or good? A: The battery tester will display SOH (State of Health), SOC (State of Charge), CCA (Cold Cranking Ampere), Voltage, Internal Resistance, and Rating, with an intuitive test result of "GOOD"... -
Page 17: Warranty
TOPDON ONE YEAR LIMITED WARRANTY The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects reported during the...
