M74050
1/4M IMAGING SPECTROGRAPHS
14

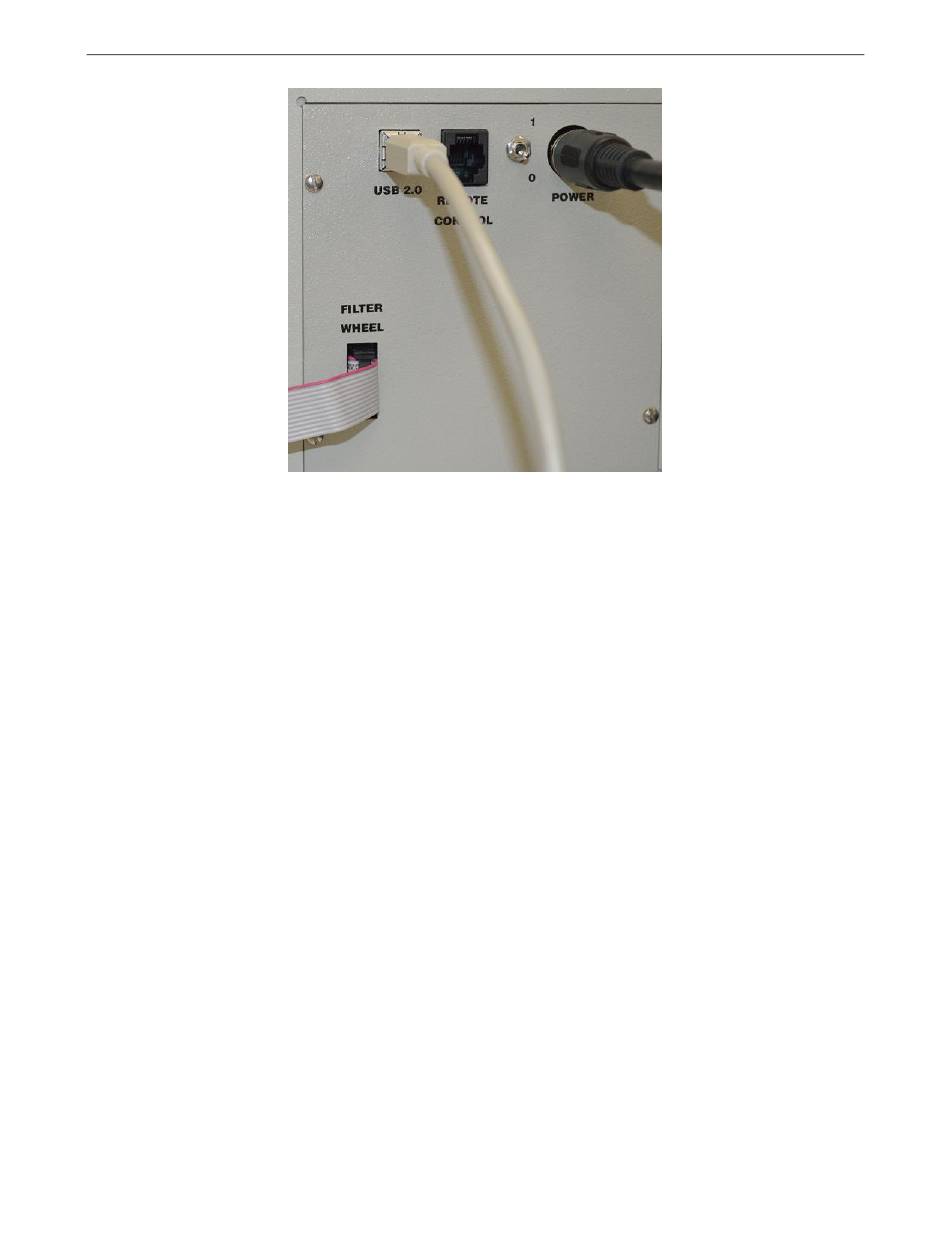

Figure 4: Spectrograph Connections
The USB models of the MS260i each include a USB 2.0 cable. A GPIB cable (model 70038) and
RS232 cable (model 70040) are available from Oriel, ordered separately.
If using a commercially available USB/GPIB or USB/RS232 converter cable, the driver for the cable
must be installed before communication to the spectrograph can be established. This driver is
available from the manufacturer of the cable.
Follow the instructions provided in the Quick Start Guide to install the utility software onto a computer.
The software is named MonoTerm. The utilty software instructions apply to the MS260i, as well as
the Cornerstone 130 and Cornerstone 260 monochromator families.
