Summary of Contents for Newport MKS Spectra-Physics WaveTrain

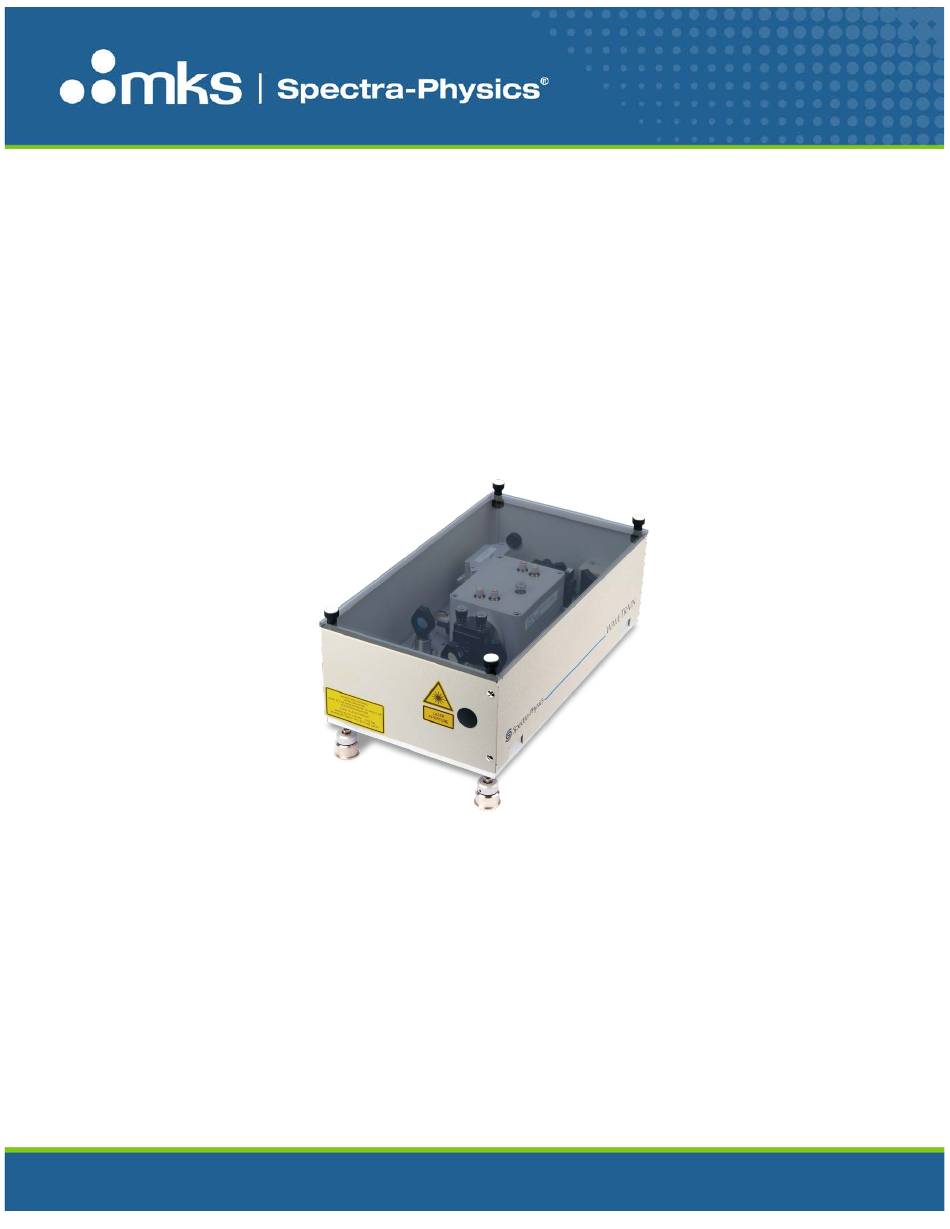

- Page 1 Pre-Installation Guide WaveTrain™ Spectra-Physics, Inc. 3635 Peterson Way Santa Clara, CA 95054 April 2020 ©Newport Corporation MKS Spectra-Physics Confidential 1 of 13...
-
Page 2: Table Of Contents
Utility Requirements ___________________________________________ 11 Power Requirements __________________________________________ 11 Pre-Installation Checklist ___________________________________ 12 Physical Locations: ____________________________________________ 12 When Your System Arrives: ______________________________________ 12 Maintenance Agreement ____________________________________ 13 Purge Unit (Optional) ____________________________________________ 13 General Procedures _____________________________________________ 13 ©Newport Corporation MKS Spectra-Physics Confidential 2 of 13... -
Page 3: Introduction
We at Spectra-Physics intend to provide you with responsive support so that you can derive great satisfaction and value in using our systems for your applications. We are available to you at 1-800- 456-2552. ©Newport Corporation MKS Spectra-Physics Confidential 3 of 13... -
Page 4: What We Would Like You To Know
Because of the large variety of single mode lasers available from different manufacturers, however, we cannot guarantee that your WaveTrain™ system will be tested prior to delivery with that type of laser you intend to use. ©Newport Corporation MKS Spectra-Physics Confidential 4 of 13... -
Page 5: What We Would Like To Know
Please, check the applicable boxes and fill out the appropriate sub-section for your specific fundamental/pump laser system: Spectra-Physics Ion laser (SLM) Argon Ion BeamLok 2060 Z-Lok Krypton Ion BeamLok 2080 J-Lok Ti:Sa Laser (SLM): Matisse TR Matisse TS Matisse TX Dye Laser (SLM): ©Newport Corporation MKS Spectra-Physics Confidential 5 of 13... - Page 6 Other manufacturers: Type: Ion Laser Ti:Sa Dye Laser DPSS Laser Diode Laser Others Frequency actively stabilized: Manufacturer/Model Wavelength (range) [nm] Maximum Output Power: [mW]: Polarization: Vertical Horizontal Unknown Mode: Gasussian Circular Unknown ©Newport Corporation MKS Spectra-Physics Confidential 6 of 13...
- Page 7 100 V 115 V 230 V other Which crystal/optics set would you like to have pre-mounted for installation if you ordered more than one? crystal [nm] Polarization rotator not needed ordered available ©Newport Corporation MKS Spectra-Physics Confidential 7 of 13...
-
Page 8: When The System Arrives
A non- standard system will require special consideration. • An oscilloscope (bandwidth 20 MHz or faster, two-channel with external trigger) and 3 BNC- cables (length approx. 1 m) will be required during installation and operation. ©Newport Corporation MKS Spectra-Physics Confidential 8 of 13... -
Page 9: Pre-Installation Considerations
20 - 25°C. Room temperature should ideally be 22°C and should not fluctuate ±1°C during any two-hour period. The input beam height may be varied from 115mm to 150mm; with SHG-output beam height = input beam height. ©Newport Corporation MKS Spectra-Physics Confidential 9 of 13... - Page 10 In some applications vibration isolation may be required for your system. Structural integrity of the flooring could play an important role. Consider room requirements for future maintenance and upgrades by your Spectra-Physics’ Field Service Engineer. ©Newport Corporation MKS Spectra-Physics Confidential 10 of 13...
-
Page 11: Physical Description
Water: Not Required Power Requirements Electrical Control Unit: 100/ 200 VAC, 50-60 Hz 115/ 230 VAC, 50-60 Hz (depending on actual setting) Optional Closed Loop Purge Unit (CLPU): 80/ 240 VAC, 50-60 Hz ©Newport Corporation MKS Spectra-Physics Confidential 11 of 13... -
Page 12: Pre-Installation Checklist
Save all packing and shipping material until the installation has been completed. Obtain the correct safety glasses and a power meter Customer Signature Date Phone Number Fax Number E-Mail Sales Order Number ©Newport Corporation MKS Spectra-Physics Confidential 12 of 13... -
Page 13: Maintenance Agreement
The Pump Laser output power, the WaveTrain™ output power, and the mode-locking of the system should also be checked once a week by verifying output values. If any of the output characteristics have changed please all Spectra-Physics Technical support at 1-800-456-2552 ©Newport Corporation MKS Spectra-Physics Confidential 13 of 13...
