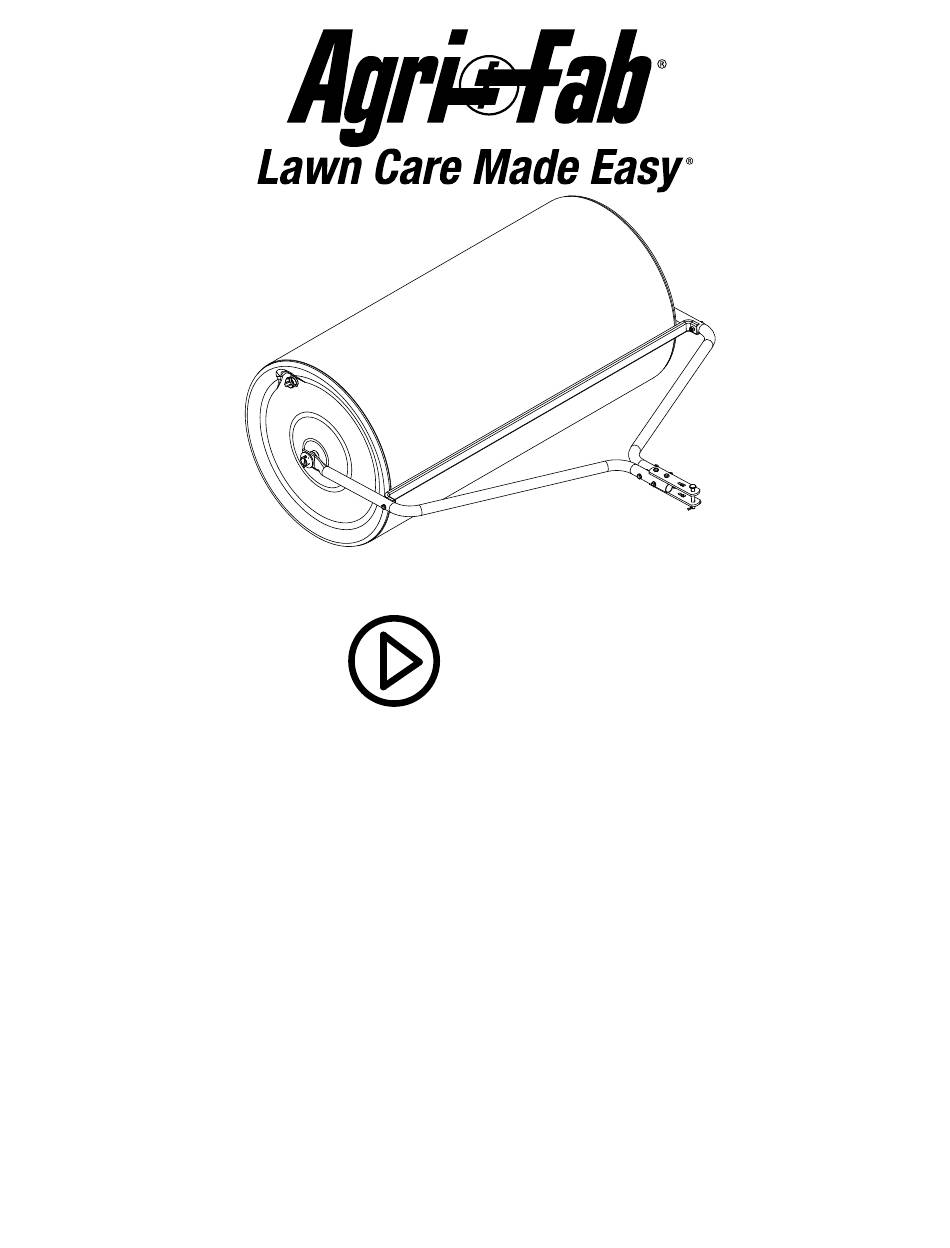

Agri-Fab 45-02167 Manual

SAFETY PRECAUTIONS
1.
Never attach a garden hose to the fill/drain hole when filling.
Dangerous pressure build up could occur inside roller.
2. Never fill roller to maximum weight without checking capability
of vehicle to safely pull and stop. Refer to the towing vehicle
owners manual.
Never use roller up and down hills; always work across hills
3.
and slopes.
4. Never use roller on slopes greater than 10°. Refer to included
Slope Guide.
Never allow children to operate towed equipment.
5.
6. Never allow children or others on towed equipment
7. Always use caution when turning, slowing, or stopping.
Always drain roller to keep from freezing.
8.
9. Always keep the area clear of bystanders; paying close
attention to children and pets.
45-02167
Want more information or assembly tips?
Video
Instruction
Guide
y o u t u b e . c o m / c / a g r i f a b
SPECIFICATIONS
Roller Drum:
O.A. Width:
Bearings:
Tow Hitch:
Weight w/ Water:
Approx. Sh. Wt.:
24" Dia. x 48" Wide, Welded Steel
Approximately 52"
1" I.D., Replaceable
Std. Pin Type - 1/2" Hole
Up to 910 Lbs. Filled with Water
Approximately 114 Lbs.
FORM NO. 45640 (06/11/19)
