OWNERS
MANUAL
MODEL NO.
45-0267
SPECIFICATIONS:
Roller Drum:
18" Dia. x 24" Wide, H.D. Polyethylene
O.A. Width:
Approx. 29-1/2"
Bearings:
3/4" I.D., Replaceable
Tow Hitch:
Std. Pin Type - 1/2" Hole
Weight w/ Water: Up to 240 Lbs. Filled with Water
(Note: May be filled with sand)
Approx. Sh. Wt.: 30 Lbs.

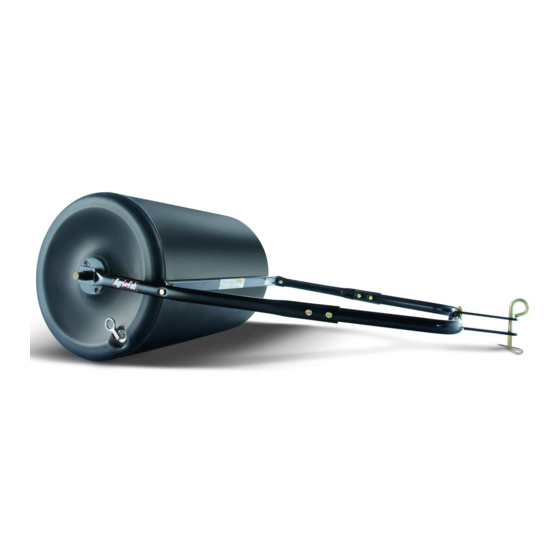

POLY LAWN ROLLER
Assembly instructions on reverse side.
(18" Dia. x 24" Wide)
SAFETY PRECAUTIONS
1. Never attach a garden hose to the fill/drain hole
when filling. Dangerous pressure build up could
occur inside roller.
2. Do not fill roller to maximum weight without check-
ing capability of vehicle to safely pull and stop.
3. Never use roller up and down hills; always work across
hills and slopes.
4. Use caution when turning, slowing or stopping.
5. Always drain roller to keep from freezing.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Agri-Fab 45-0267
Summary of Contents for Agri-Fab 45-0267
-
Page 1: Safety Precautions
OWNERS MANUAL MODEL NO. 45-0267 POLY LAWN ROLLER (18" Dia. x 24" Wide) Assembly instructions on reverse side. SAFETY PRECAUTIONS SPECIFICATIONS: 1. Never attach a garden hose to the fill/drain hole Roller Drum: 18" Dia. x 24" Wide, H.D. Polyethylene when filling. -
Page 2: Assembly Instructions
For a push roller, remove the bracket or a block of wood or a hammer.) reverse its position. Tighten all bolts at this time. PARTS LIST FOR POLY LAWN ROLLER - MODEL 45-0267 Part Part Ref.
