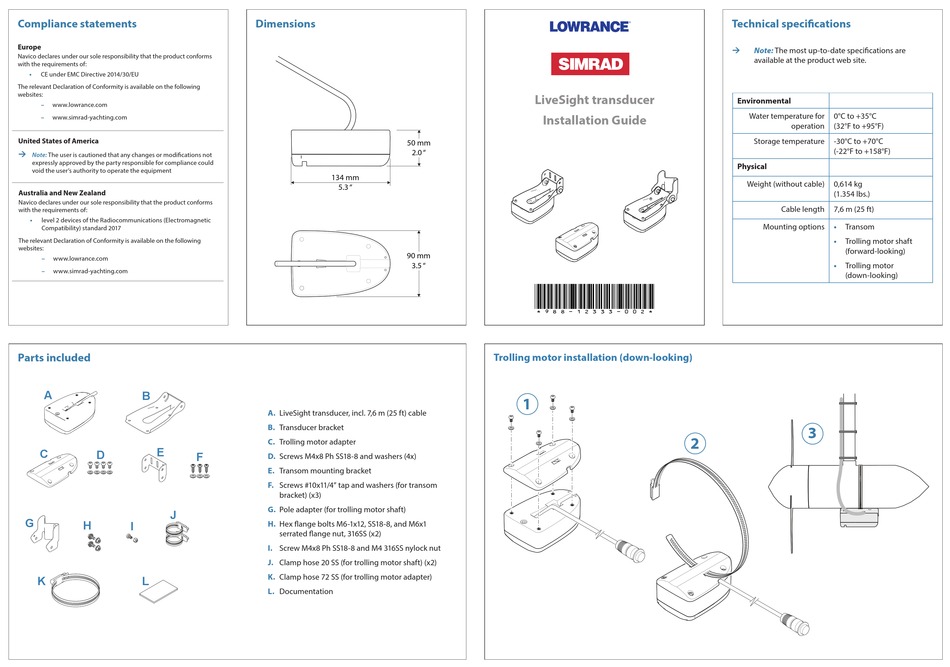

Compliance statements

Europe
Navico declares under our sole responsibility that the product conforms
with the requirements of:
CE under EMC Directive 2014/30/EU
The relevant Declaration of Conformity is available on the following
websites:
www.lowrance.com
www.simrad-yachting.com
United States of America
¼
Note:
The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment
Australia and New Zealand
Navico declares under our sole responsibility that the product conforms
with the requirements of:
level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
The relevant Declaration of Conformity is available on the following
websites:
www.lowrance.com
www.simrad-yachting.com

Parts included

A
B
E
C
D
F
J
G
H
I
K
L

Dimensions

50 mm
2.0 "
134 mm
5.3 "
90 mm
3.5 "
A.
LiveSight transducer, incl. 7,6 m (25 ft) cable
B.
Transducer bracket
C.
Trolling motor adapter
D.
Screws M4x8 Ph SS18-8 and washers (4x)
E.
Transom mounting bracket
F.
Screws #10x11/4" tap and washers (for transom
bracket) (x3)
G.
Pole adapter (for trolling motor shaft)
H.
Hex flange bolts M6-1x12, SS18-8, and M6x1
serrated flange nut, 316SS (x2)
I.
Screw M4x8 Ph SS18-8 and M4 316SS nylock nut
J.
Clamp hose 20 SS (for trolling motor shaft) (x2)
K.
Clamp hose 72 SS (for trolling motor adapter)
L.
Documentation

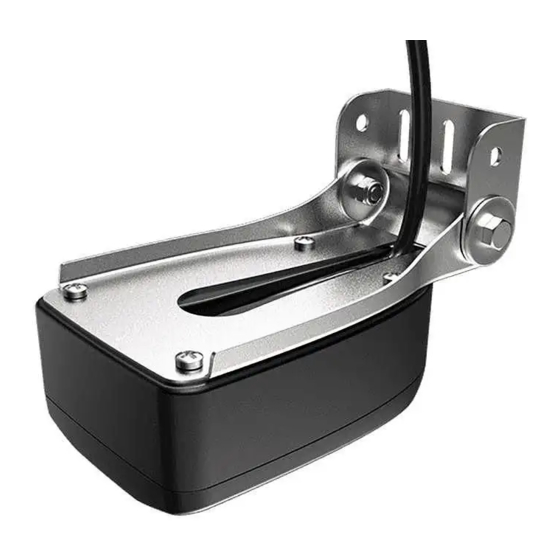

LiveSight transducer
*988-12333-002*

Trolling motor installation (down-looking)

1

Technical specifications

¼
Note:
The most up-to-date specifications are
available at the product web site.
Environmental
Water temperature for
0°C to +35°C
operation
(32°F to +95°F)
Storage temperature
-30°C to +70°C
(-22°F to +158°F)
Physical
Weight (without cable)
0,614 kg
(1.354 lbs.)
Cable length
7,6 m (25 ft)

Mounting options

Transom
Trolling motor shaft
(forward-looking)
Trolling motor
(down-looking)
3
2
