1.1. Installation in the eurorack

Please connect the supplied ribbon cable to the eurorack system bus rails as
shown on the picture. The module needs +/-12 Volts at a supply current of
maximum 140mA on +12V and about 80mA on -12 Volts. The optional 5
Volts and the CV/Gate on the A-100 Doepfer bus are both not wired inside
the Jomox modules and not needed. Other 10 pin systems may be used as
well if only the lower part of the 16 pin connector is connected. Please pay
attention for the position of the voltages and the ground pins! There are
protection diodes inside the modules but please take extra care to protect
the rack and the module!
6
Version OS 2.07

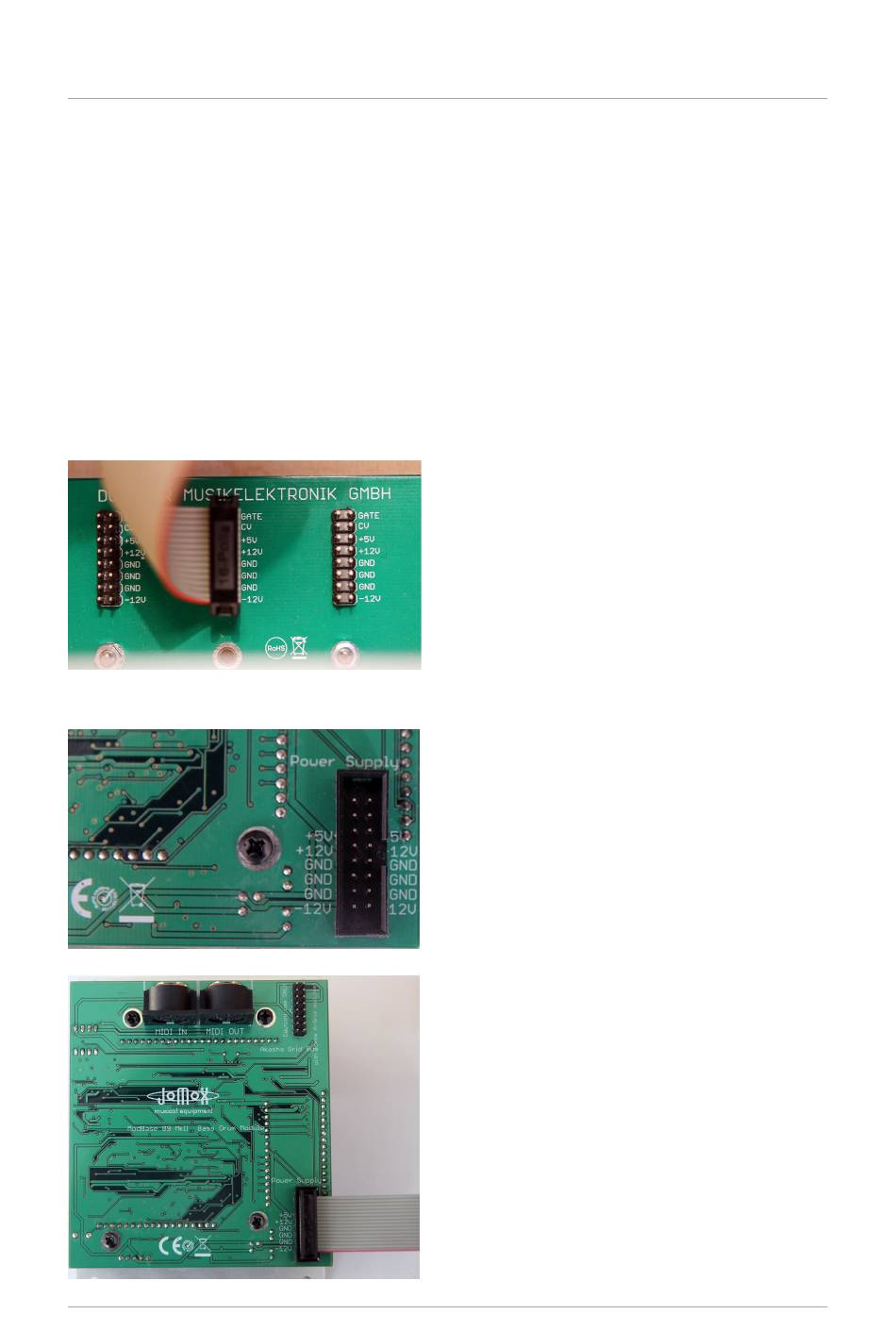

A-100 Doepfer bus. (The Doepfer GmbH
enterprise and all of their shown
products are registered trademarks. With
friendly approval of Doepfer
Musikelektronik GmbH)
Jomox ModBase 09 MkII euro rack
supply connector.
Please connect the power supply of
the eurorack system bus here – and
only here!
Connect the other end of the ribbon
cable to the module as shown on the
picture. The cables are fairly short
which is good in electrical means to
the relatively high power consumption
of the module.
