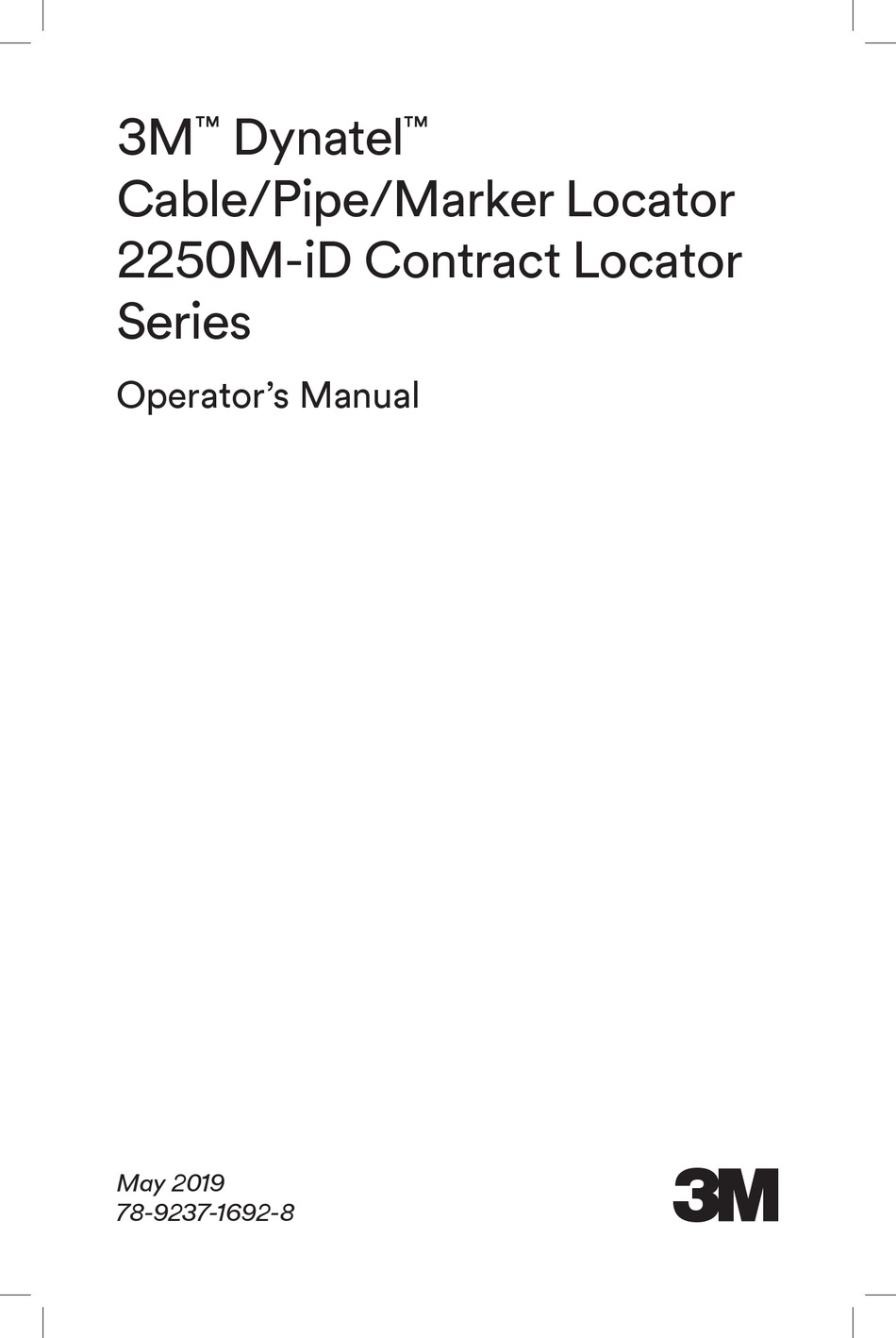

- Page 1 Dynatel ™ ™ Cable/Pipe/Marker Locator 2250M-iD Contract Locator Series Operator’s Manual May 2019 78-9237-1692-8...
-
Page 2: Table Of Contents
Installing Rechargeable Lithium Ion Battery in the Receiver ....8 Power Up Battery Test ................. 8 Receiver and Transmitter Outer Plastic Cleaning ........8 3M™ Dynatel™ Transmitter 2250 Keypad and Connector Definitions ........................9 Direct Connect Method ................10 Frequencies for Pipes ..................11 M Dyna-Coupler ...................11... -
Page 3: Statement Of Conformity
PC for enhanced resource management. 3M is dedicated to bringing you premium equipment with outstanding reliability, backed by one of the best warranties in the business and outstanding service. -
Page 4: Safety Information
3M Dynatel Cable/Pipe/Marker Locator 2250M-iD Series Operator Manual. It has not been evaluated for other uses or locations. If this equipment is used in a manner not specified by 3M, the protections provided by the equipment may be impaired. -
Page 5: About This Manual
The 2250M-iD Contract locator is designed to provide contract locators a tool to locate cables, pipes and EMS markers. The iD option provides locating and read capability to 3M iD Markers. In order to demonstrate all available functions, the illustrations depict the 2250M-iD Contract Locator receiver unit and the 2250 3-watt transmitter. - Page 6 • Ensure batteries are installed with the correct polarity. • Do not allow batteries to get wet. • Only use the supplied charger or purchase a new charger from 3M. • Only charge batteries in an indoor environment, with a temperature range of 0o C to 45o C (32 o F to 113 o F).
-
Page 7: Quick Start
Slide holder into the handle. Replace the cap. When using Alkaline Batteries it is necessary to use an adapter that has a protective diode installed in the circuit. If this wire is damaged then call 3M to get a new adpter. Do not modify this adapter. -
Page 8: Installing Rechargeable Lithium Ion Battery In The Receiver
Installing Rechargeable Lithium Ion Battery in the Receiver Remove the receiver cap. If the Alkaline adapter is connected then remove and connect the Lithium Ion battery directly to the connector in the receiver handle. Slide the battery into the handle with text facing left or right of the receiver handle. -
Page 9: Receiver And Transmitter Outer Plastic Cleaning
Receiver and Transmitter Outer Plastic Cleaning Use a soft damp cloth to clean the product and test leads if necessary. Dynatel Transmitter 2250 Keypad and Connector ™ ™ Definitions Dynatel 2250 Trace Output Level [T-1] off: Turns unit off and performs battery test. [T-2] on: Ohm-meter / Tone: Turns the unit on and cycles through the following commands when pressed repeatedly. -
Page 10: Direct Connect Method
USE APPROPRIATE SAFETY PROCEDURES. CHECK VOLTAGE BEFORE CONNECTING TRANSMITTER. VOLTAGE HIGHER THAN 240 VOLTS WILL DAMAGE EQUIPMENT. FOLLOW STANDARD PROCEDURES FOR REDUCING THE VOLTAGE. Equipment Used 3M™ Large Clip Direct- 3M™ Ground Rod 8006 3M™ Dynatel™ 3W US Connect Transmitter Cable 2876 Transmitter, 2250M Plug the Direct-Connect Cable into the transmitter. -
Page 11: Frequencies For Pipes
• 4.5" (114 mm) - Part number 4001 • 6" (150 mm) - Part number 1196 • All accessory kits containing any of the listed 3M Dyna-Couplers - Part numbers 3019, 4519, 1196/C A potential for electrical shock exists when using the 3M Dyna-Coupler on cables energized with electrical power. -
Page 12: Locating Cables/Pipes (Receiver)
Sweep receiver along path searching for installed EMS and EMS-iD mark- ers. This 3M Dynatel Receiver Series 2220X-iD can also search for EMS mark- ers while conducting a cable/pipe locate. The receiver can be set up: Select EMS Marker frequency. -
Page 13: Service And Accessories
Service and Accessories Information regarding service, accessories, or replacement parts can be obtained by contacting 3M at 1-800-426-8688. This equipment does not require annual calibration or maintenance. Optional 3M Accessories ™ Item Part Number Direct Connect Cables, Small Clip, 1/4" (6.4 mm),... -
Page 14: Receiver Specifications
™ Near-Surface 3 ft (0.9 m) Ball Marker 5 ft (1.5 m) Full-Range 8 ft (2.4 m) Detection Depth 3M Non-iD (Passive) Markers* Near Surface 2 ft (0.6 m) Ball Marker 5 ft (1.5 m) Mid-Range 6 ft (1.8 m) Full-Range 8 ft (2.4 m) -
Page 15: Transmitter Specifications
Transmitter Specifications Item Specification Trace Mode 577 Hz 8 kHz 33 kHz Induction Mode 33 kHz Output Power 3 Watt Transmitter Model Normal setting: 0.5 W (in Direct Connect High setting: 3 W @ 577 Hz, 8 kHz, 33 kHz; 1 W @ 200 kHz mode) Output Voltage 70 Vrms... - Page 16 • Ensure batteries are installed with the correct polarity. • Do not allow batteries to get wet. • Only use the supplied charger or purchase a new charger from 3M. • Only charge batteries in an indoor environment, with a temperature range of 0 o C to 45 o C (32 o F to 113 o F).
-
Page 17: Important Notice
(12) months from the date of purchase. Dry cell batteries included in any of 3M’s products are warranted only to the extent the battery manufacturer determines such batteries are covered by its warranty.
