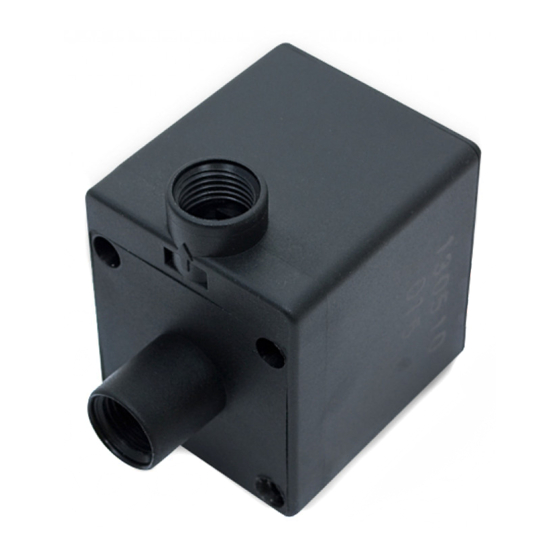

- Page 1 Product Specification Sheet & Installation Manuals EK series DC BRUSHLESS PUMPS...
-
Page 2: Pump Specifications
PUMP SPECIFICATIONS: Model EK-DCP 2.2 EK-DCP 2.6 EK-DCP 4.0 Rated voltage DC12V +/-10% DC12V +/-10% DC12V +/-10% Starting voltage DC 8V above DC 8V above DC 8V above Power Consumption 6.5W +/-10% 8W +/-10% 18W +/-10% Load current 0.62A +/-10% 1A +/-10% 1.8A +/-10% Q-max... -
Page 3: Installation
INSTALLATION Caution Before refilling coolant for testing the water cooling system, please make sure again that all water tubes and connectors are securely fitted and correctively positioned. (EK-EKoolant high quality coolant is recommend) 2. If any fault develops not caused by pump but caused by falsely installation, the damage is not covered by the two (2) year warranty. - Page 4 Step 1 Placing the water tank / reservoir 1. Make sure the water tank / Reservoir is placed above the pump. 2. This enables water coolant to fill the pump and enables pump to fill the whole system with water. Step 2 Installation of connector 3.
- Page 5 Step 4 Installation of power supply 1. The power cord of pump can be plugged into CPU fan’s power outlet on motherboard. Besides, you can use 3pin turn 4pin cord to connect with power supply in the non-use of sensor line situation. 2.
- Page 6 Placing tank upon pump, turn on the power for 1 minute then turn off the power for 1 minute, too. This action should last 5 minutes. This will help bleeding the small air bubbles from your watercooling system. EKWB d.o.o., Pot za Brdom 100, 1000 Ljubljana, Slovenia, EU info@ekwaterblocks.com www.ekwaterblocks.com...
