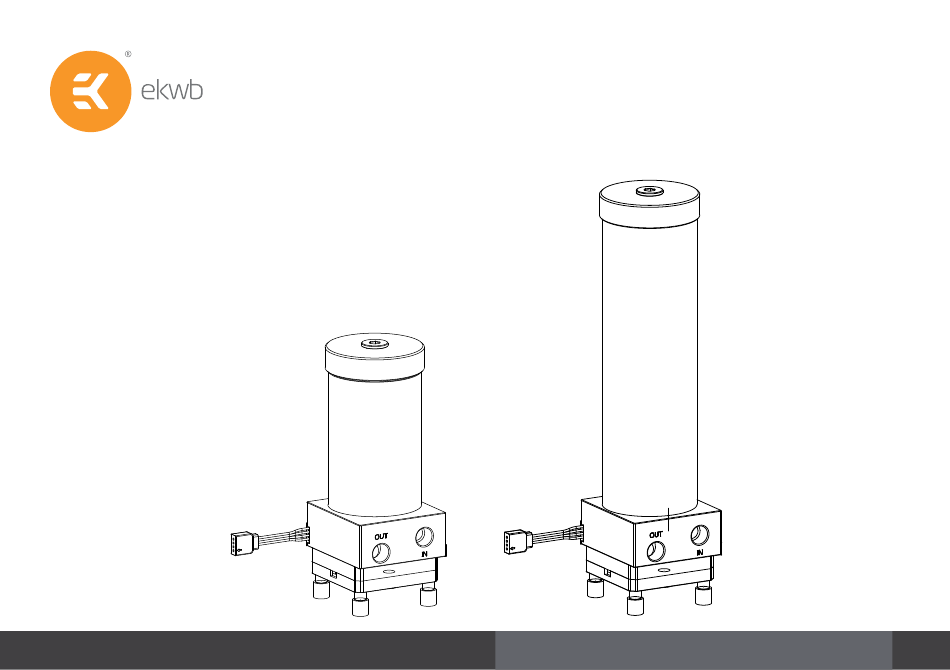

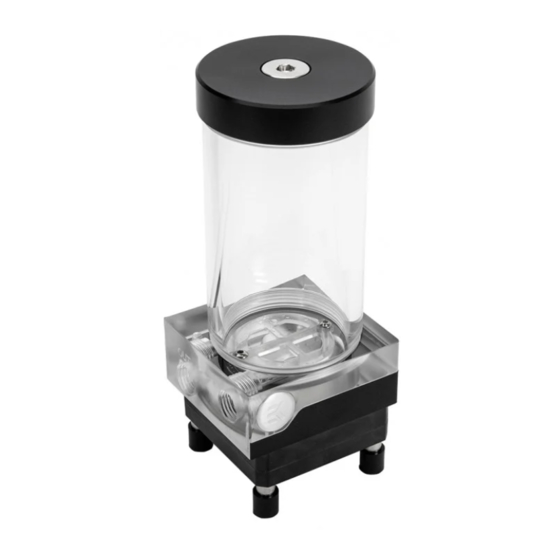

- Page 1 EK-XRES 140 / 250 SPC PWM Classic RGB- Plexi (incl. pump) PUMP-RESERVOIR COMBO INSTALLATION AND MOUNTING MANUAL 1st Revision, April 10th 2019...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT ASSEMBLING EK-XRES SPC SERIES PUMP-RESERVOIR COMBO UNIT (already done by EK) INSTALLING THE ASSEMBLY USING ENCLOSED BRACKET (Bracket - XRES Classic Spider - OPTION 1) INSTALLING THE ASSEMBLY - OPTION 2 ATTACHING THE FITTINGS CONNECTING THE RGB LED STRIP... -
Page 4: Assembling Ek-Xres Spc Series Pump-Reservoir Combo Unit (Already Done By Ek)
ASSEMBLING EK-XRES SPC SERIES PUMP- RESERVOIR COMBO UNIT (already done by EK) STEP 1 Install the EK-SPC Series pump on to the pump main motor housing. Make sure you re-use the original O-ring gasket! Reseat the gasket if needed. You can rotate the XRES SPC in and use it in any direction (90° step turns). -
Page 5: Installing The Assembly Using Enclosed Bracket (Bracket - Xres Classic Spider - Option 1)
BRACKET (Bracket - XRES Classic Spider - OPTION 1) If you have an option to mount the assembly on 120mm fan or Bracket – XRES Classic Spider 120mm FAN mounting holes, EKWB recommends enclosed spider assembly M4 × 4mm screw mount - Bracket –... -
Page 6: Installing The Assembly - Option 2
INSTALLING THE ASSEMBLY - OPTION 2 The assembly can be mounted on any flat surface inside your computer chassis. One must drill four (4) 4.2mm holes using powerdrill in a 50x50mm square pattern. Please follow these steps: 1. Screw on Vibration Dampers on Custom SPC Screws. 2. -
Page 7: Attaching The Fittings
2 (two) G1/4 threaded opening on the main body of which are inlet and outlet (clearly marked with ‘OUT’). EKWB recommends using EK-ACF fittings with the EK-XRES SPC series reservoir pump combo units. If you use barbed fittings, please use hose clamps or an appropriate substitute to secure tubing. -
Page 8: Connecting The Rgb Led Strip
CONNECTING THE RGB LED STRIP STEP 1 Plug the 4-pin connector from Reservoar’s RGB LED light to the RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +12V G R B. Please ensure that the arrow indicated on the connector is plugged into the +12V line as indicated on your motherboard. -
Page 9: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
