SERVICE Position

SensoGate WA 133

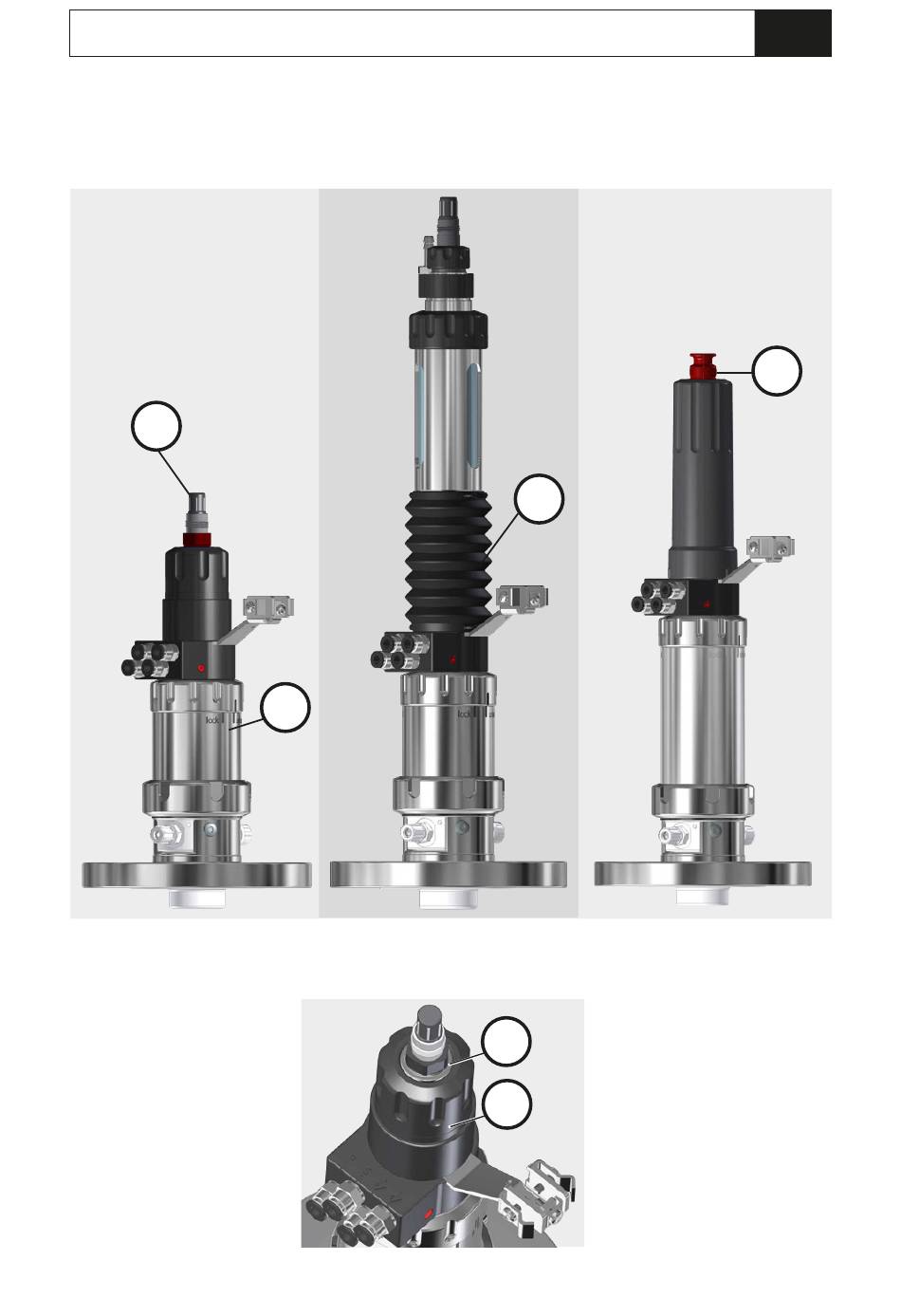

The following illustrations clearly show the SERVICE position:
Short immersion depth
Solid-electrolyte sensor
J
The SERVICE position is
indicated by the sensor
head (J) protruding out of
the drive unit (AD).
In addition, the metal ring
(MT) fits flush with the
sensor holder (SO).
Short immersion depth
Liquid-electrolyte sensor
AD
The SERVICE position is indi-
cated by the rubber bellows
(B) being expanded.
Long immersion depth
Solid-electrolyte sensor
B
The SERVICE position is indi-
cated by the service cap (L)
protruding out of the exten-
sion.
MT
SO
