- Page 1 Operator’s manual smart Gateway...
-
Page 2: Table Of Contents

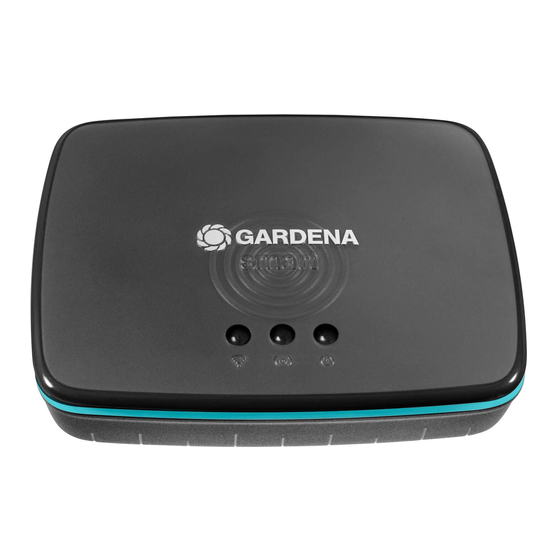

GARDENA smart Gateway 1. SAFETY .......... - Page 3 Never operate the product when you are tired, ill or under the influ- ence of alcohol, drugs or medicine. Intended use: The GARDENA smart Gateway is intended for private use in domestic and hobby gardens for automatic control of smart system products by the GARDENA smart system App.
-
Page 4: Safety
1. SAFETY Important! we recommend persons with Read the operator’s manual medical implants to speak with carefully before use and keep their physician and the medical for future reference. implant manufacturer before you operate the product. DANGER! Do not open the product. Risk of suffocation! Only use the product with the Small parts can be easily swal... -
Page 5: Function
2. FUNCTION LED-Display: Power-LED Connection-LED Internet-LED Internet LED: Green: Connected with router and server Yellow: Hotspot mode – not connected with router Red: Not connected Red flashing: Connected with router; not connected with server Connection LED: Green flashing: Receiving data Yellow flashing: Sending data Power LED:... -
Page 6: Initial Operation
– Power supply unit – Ethernet-cable To update the firmware of the smart Gateway: An Internet connection is required for installation of the Gateway. To be able to use all functions of the Gateway we recommend to update the firmware. - Page 7 The correct location for the Gateway: – We recommend installing the Gateway near the garden window. – Only use the product indoors. – Do not use in cellar or nearby metal plates or engines. – Radio transmission may be disturbed by external influences such as electric motors or defective electrical devices.
- Page 8 To mount the Gateway on the wall (optional): The two screws (not supplied) for attaching the Gateway have to be screwed into place A horizontally 75 mm / B vertically 50 mm apart and the screw head diameter must not exceed 8 mm. 50 mm 75 mm 1.
- Page 9 To operate via ethernet cable (recommended): 1. Download the GARDENA smart system App from the Apple App Store or the Google Play Store. 2. Follow the instructions in the App.
- Page 10 To connect to a Wi-Fi network: The LAN cable must be unplugged in order to activate the configuration network (yellow Internet LED illuminates). If it illuminates still red, briefly push the reset button The configuration network is activated as long as the Internet LED permanently illuminates yellow.
- Page 11 To configure the WiFi network with an iOS device (iPhone, iPad): 1. Download the GARDENA smart system App from the Apple App Store. 2. Follow the instructions in the App. Apple HomeKit code on Apple HomeKit code not bottom of Gateway available available on bottom of Gateway 1.
- Page 12 – Add device – Code missing or cannot be scanned – Enter manual code 6. The Gateway can now be Wait until the Internet LED and the integrated into the GARDENA Power LED light up permanently smart system App. green.
- Page 13 The Gateway ID can be read on the sticker on the underside of the Gateway. You will also need the password for your Wi-Fi network. 1. Connect to the GARDENA configuration network. To do this, go to the Wi-Fi settings on your smartphone, tablet or computer.
- Page 14 7. Wait until the Internet LED and the Power-LED permanently illuminate green. The Gateway can now be included in the GARDENA smart system App. Note: Because the GARDENA configuration network does not have its own Internet access, your smartphone / tablet may automatically leave the GARDENA configuration network or displays an error message.
-
Page 15: Operation
App. Factory Reset: The smart Gateway will be reset to the factory settings (not deleted from an existing Gardena Smart system account). You may need to use the reset function if for example you want to link your Gateway to a new Wi-Fi network. -
Page 16: Maintenance
5. MAINTENANCE To clean the Gateway: No caustic / abrasive cleaning agents should be used. v Clean Gateway with a damp cloth (do not use solvent). 6. STORAGE To put into storage: The product must be stored away from children. v Do not stow the product outdoors if not in use. -
Page 17: Troubleshooting
• 123 TCP / UDP (NTP) • 80 TCP (HTTP) • 443 TCP (HTTPS) NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. -
Page 18: Technical Data
57 x 128 x 58 Weight EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19000 / 19005) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safetyregulations... -
Page 19: Service / Warranty
• Neither the purchaser nor a third party has attempted to open or repair the product. • Only Original GARDENA replacement parts and wear parts have been used for operation. • Presentation of the receipt... - Page 20 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author- ised by GARDENA were not used.
- Page 21 Hans-Lorenser-Straße 40 Piso 4 France info @ gardena.lt miroslav.jejina @ domel.rs D-89079 Ulm Santiago RM http : // www.gardena.com / fr Luxembourg Phone: (+ 56) 2 24142560 Produktfragen: N° AZUR : 0 810 00 78 23 Singapore Magasins Jules Neuberg (+ 49) 731 490 - 123 contacto @ jce.cl...
