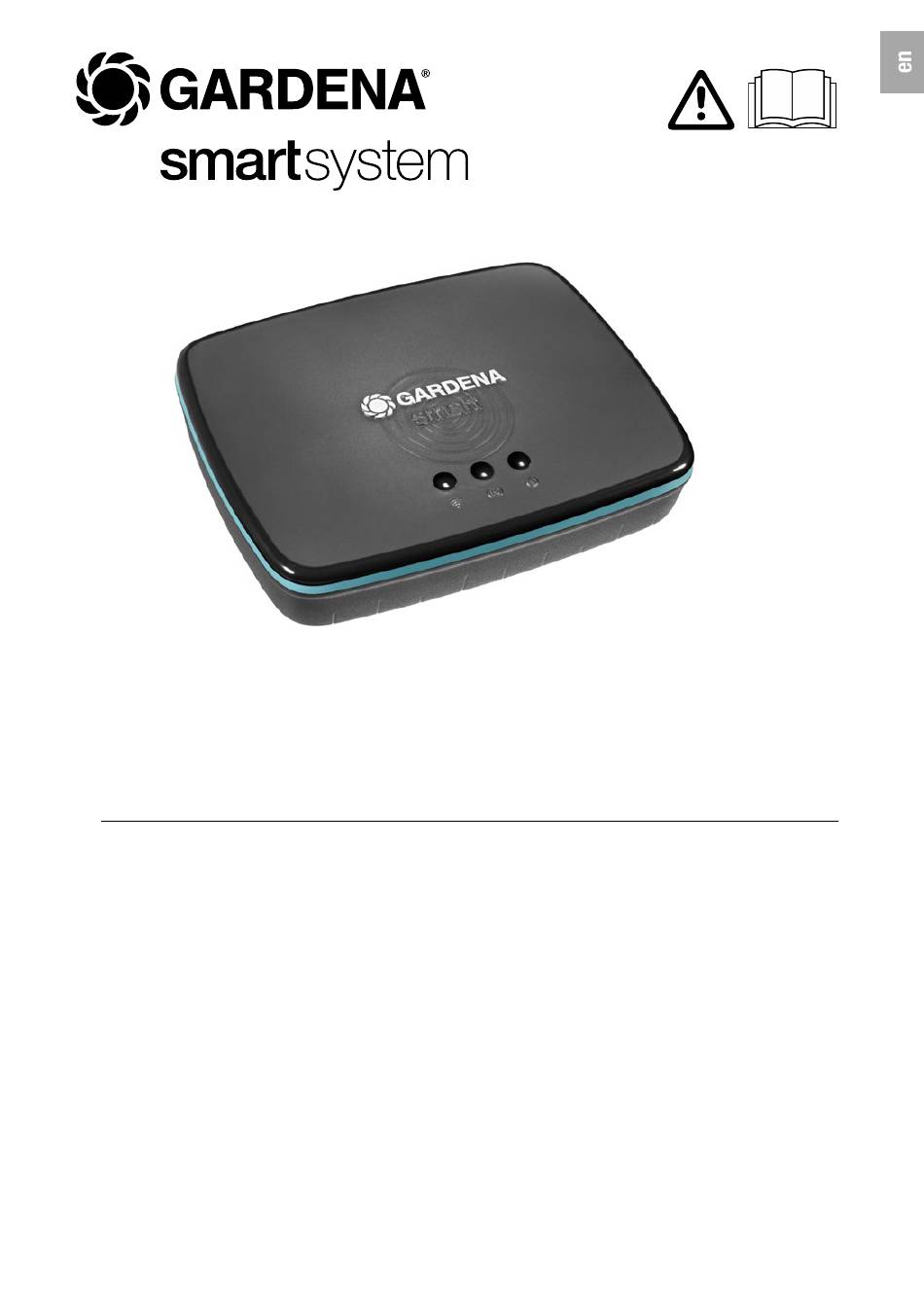

- Page 1 Operator’s manual smart Gateway...
-
Page 2: Table Of Contents

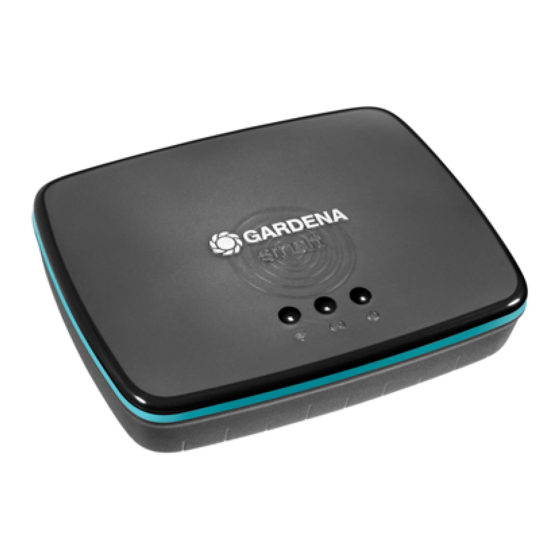

GARDENA smart Gateway 1. SAFETY WARNINGS ........ - Page 3 Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Intended use: The GARDENA smart Gateway is intended for private use in domestic and hobby gardens for automatic control of smart system products by the GARDENA smart App.
-
Page 4: Safety Warnings
1 . SAFETY WARNINGS IMPORTANT! Do not open the product. Read the operator’s manual Only use the product with the carefully before use and keep included accessories. for future reference. Protect the power supply unit from moisture when connected. The product can be used in the tem- DANGER! perature range 0 °C to + 40 °C. -
Page 5: Function
2 . FUNCTION LED-Display: Power-LED Connection-LED Internet-LED Internet LED: Green: Connected with router and server Yellow: Hotspot mode – not connected with router Red: Not connected Red flashing: Connected with router; not connected with server Connection LED: Green flashing: Receiving data Yellow flashing: Sending data... -
Page 6: Initial Operation
3 . INITIAL OPERATION Contents: – smart Gateway – Power supply unit – Ethernet-cable To update the firmware of the smart Gateway: An Internet connection is required for installation of the gateway. To be able to use all functions of the gateway we recommend to update the firmware. 1. - Page 7 The correct location for the gateway: – We recommend installing the gateway near the garden window. – Only use the product indoors. – Do not use in cellar or nearby metal plates or engines. – Radio transmission may be disturbed by external influences such as electric motors or defective electrical devices.
- Page 8 To mount the gateway on the wall (optional): The two screws (not supplied) for attaching the gateway have to be screwed into place A horizontally 75 mm / B vertically 50 mm apart and the screw head diameter must not exceed 8 mm. 50 mm 75 mm 1.
- Page 9 To operate via ethernet cable (recommended): 1. Download the GARDENA smart App from the App Store (Apple) or from Google Play. 2. Follow the instructions in the app.
- Page 10 To connect to a Wi-Fi network: The LAN cable must be unplugged in order to activate the configuration network (yellow Internet LED illuminates). If it illuminates still red, briefly push the reset button The configuration network is activated as long as the Internet LED permanently illuminates yellow.
- Page 11 To configure the Wi-Fi network with an iOS device (iPhone, iPad): 1. Download the GARDENA smart App from the App Store (Apple). 2. Follow the instructions in the app. Apple HomeKit code on Apple HomeKit code not bottom of gateway available available on bottom of gateway 1.
- Page 12 – Add device – Code missing or cannot be scanned – Enter manual code 6. The gateway can now Wait until the Internet LED and the be integrated into the Power LED light up permanently GARDENA smart App. green.
- Page 13 The Gateway ID can be read on the sticker on the underside of the gateway. You will also need the password for your Wi-Fi network. 1. Connect to the GARDENA configuration network. To do this, go to the Wi-Fi settings on your smartphone, tablet or computer.
- Page 14 7. Wait until the Internet LED and the Power-LED permanently illuminate green. The gateway can now be included in the GARDENA smart App. Note: Because the GARDENA configuration network does not have its own Internet access, your smartphone / tablet may automatically leave the GARDENA configuration network or displays an error message.
-
Page 15: Operation
You can use the GARDENA smart App to control all GARDENA smart system products from anywhere at any time. The free GARDENA smart App is available on the App Store (Apple) and on Google Play. You can integrate all GARDENA smart system products via the app. -
Page 16: Maintenance
5 . MAINTENANCE To clean the gateway: No caustic / abrasive cleaning agents should be used. v Clean gateway with a damp cloth (do not use solvent). 6 . STORAGE To put into storage: The product must be stored away from children. v Do not store the product outdoors if not in use. -
Page 17: Troubleshooting
Should you experience any faults, you can find some frequently asked questions at this link: www.gardena.com NOTE: Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. v For any other malfunctions please contact the GARDENA service department. -
Page 18: Technical Data
57 x 128 x 58 Weight Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19000 / 19005) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: www.gardena.com... -
Page 19: Warranty / Service
9 . WARRANTY / SERVICE 9.1 Product registration: Please register your product at gardena.com/registration. 9.2 Service: Please find the current contact information of our service on the back page and online: United Kingdom: https://www.gardena.com/uk/support/advice/contact/ USA: https://us.gardena.com/pages/contact Canada: https://www.gardena.com/ca-en/c/support/contact Australia: https://www.gardena.com/au/support/advice/contact/ New Zealand: https://www.gardena.com/nz/support/advice/contact/... -
Page 20: Disposal
10. DISPOSAL Disposal of the gateway: (according to Directive 2012/19/EU) The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations. IMPORTANT! Dispose of the product through or via your municipal recycling collection centre. - Page 21 Open Source Software: This device contains open source software. GARDENA hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licenses. This offer is valid up to three years after product purchase to anyone in receipt of this informa- tion.
- Page 22 Dominican Republic India Deutschland / Germany Bulgaria GARDENA Manufacturing GmbH AGROLAND България АД BOSQUESA, S.R.L B K RAMAN AND CO Central Service бул. 8 Декември, № 13 Carretera Santiago Licey Plot No. 185, Industrial Area, Hans-Lorenser-Straße 40 Офис 5 Km. 5 ½...
- Page 23 Phone: (+373) 22 857 126 7880 UAE Phone: (+82) 2 574 6300 www.convel.md Phone: (+971) 4 206 6700 Poland kjh@kjh.co.kr ace@alfuttaim.ae Gardena Service Center Vrbno Mongolia c/o Husqvarna Manufacturing CZ Spain Ukraine / Україна Soyolj Gardening Shop s.r.o. Jesenická 146 Husqvarna España S.A.
