Summary of Contents for Gardena 19005

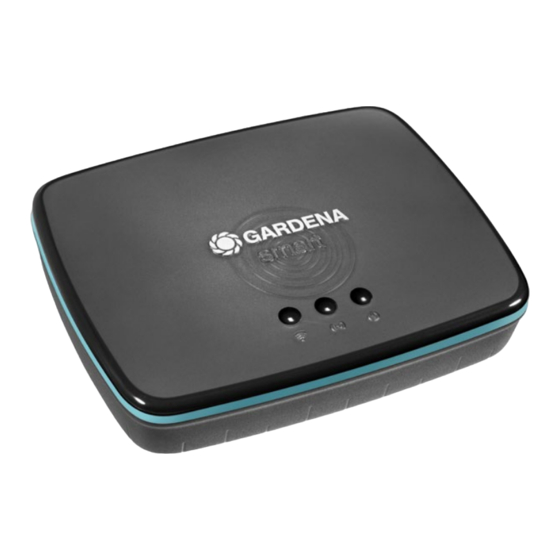

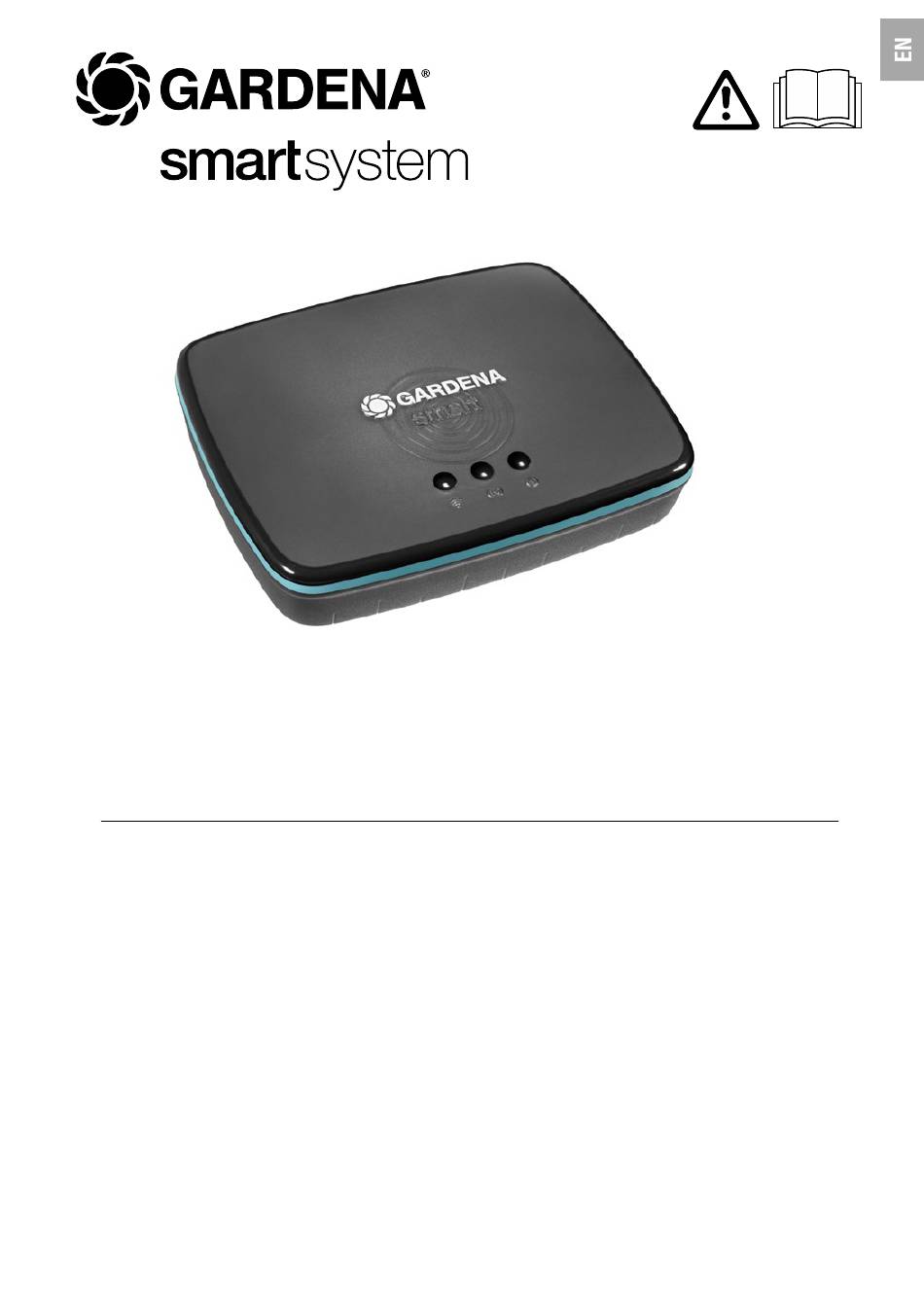

- Page 1 Art. 19005 Operator’s manual smart Gateway...
-
Page 2: Table Of Contents
GARDENA smart Gateway 1. SAFETY .......... - Page 3 Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Intended use: The GARDENA smart Gateway is intended for private use in domestic and hobby gardens for automatic control of smart system products by the GARDENA smart system App.
-
Page 4: Safety
1. SAFETY Important! Avoid exposure to moisture and dust, Read the operator’s manual as well as sunlight and other forms of carefully before use and keep heat exposure. for future reference. The wireless transmission can be disrupted as a result of external influ- ences such as electric motors or DANGER! defective electrical devices. -
Page 5: Function
2. FUNCTION LED-Display: Power-LED Connection-LED Internet-LED Internet LED: Green: Connected with router and server Yellow: Hotspot mode – not connected with router Red: Not connected Red flashing: Connected with router; not connected with server Connection LED: Green flashing: Receiving data Yellow flashing: Sending data Power LED: Green:... -
Page 6: Initial Operation
3. INITIAL OPERATION Contents: – Gateway unit – Power supply unit – Ethernet-cable To mount on the wall (optional): The two screws (not supplied) for attaching the Gateway have to be screwed into place A horizontally 75 mm / B vertically 50 mm apart and the screw head diameter must not exceed 8 mm. - Page 7 To commission the smart Gateways: An Internet connection is required for installation of the Gateway. The Gateway can be connected to the Internet via ethernet or Wi-Fi. 1. Connect the power supply unit to a mains socket. 2. Connect the power supply cable to the plug socket of the Gateway.
- Page 8 Once the Internet-LED and the Power LED illuminate green permanently, the Gateway is up to date. It can now be included in the App. 2. Download the GARDENA smart system app from the Apple App Store or the Google Play Store.
- Page 9 To connect to a Wi-Fi network: If the Gateway is neither connected to the router via a LAN cable nor integrated into another Wi-Fi network, the Gateway automatically provides a configuration network after approx. 1 to 2 minutes after startup. The configuration network is activated as long as the Internet LED permanently illuminates yellow.
- Page 10 Once the Internet LED and the Power LED illuminate green permanently, your Gateway is up to date. It can now be included in the App. 5. Download the GARDENA smart system app from the Apple App Store. 6. Follow the instructions in the App.
- Page 11 The Gateway ID can be read on the sticker on the underside of the Gateway. You will also need the password for your Wi-Fi network. 1. Connect to the GARDENA configuration network. To do this, go to the Wi-Fi settings on your smartphone, tablet, or computer.
- Page 12 Once the Internet LED and the Power LED illuminate green permanently, your Gateway is up to date. It can now be included in the App. 6. Download the GARDENA smart system App from the Google Play Store. 7. Follow the instructions in the App.
- Page 13 Note: Because the GARDENA configuration network does not have its own Internet access, your device may automatically leave the GARDENA configuration network or may displays an error message. In this case, you must allow a connection without Internet access to be maintained in the settings of your device.
-
Page 14: Operation
4. OPERATION To operate with the GARDENA smart system App: You can use the GARDENA smart system App to control all smart system products from anywhere at any time. You can download the free GARDENA smart system App from the Apple App Store or from the Google Play Store. - Page 15 Factory Reset: The smart Gateway will be reset to the factory settings. You may need to use the reset function if for example you want to link your Gateway to a new Wi-Fi network. 1. Disconnect the Gateway from the power supply. 2.
-
Page 16: Maintenance
5. MAINTENANCE To clean the Gateway: No caustic / abrasive cleaning agents should be used. v Clean Gateway with a damp cloth (do not use solvent). 6. STORAGE To put into storage: The product must be stored away from children. v Do not stow the product outdoors if not in use. -
Page 17: Troubleshooting
• 123 TCP / UDP (NTP) • 80 TCP (HTTP) • 443 TCP (HTTPS) NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. -
Page 18: Technical Data
Weight EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19005) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safetyregulations... -
Page 19: Service / Warranty
• Neither the purchaser nor a third party has attempted to open or repair the product. • Only Original GARDENA replacement parts and wear parts have been used for operation. • Presentation of the receipt... - Page 20 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author- ised by GARDENA were not used.
- Page 21 France # 8355 comuna Las Condes UAB Husqvarna Lietuva Autoput za Novi Sad bb © GARDENA © GARDENA http : // www.gardena.com / fr Ateities pl. 77C 11273 Belgrade Phone: (+ 56) 2 202 4417 Manufacturing GmbH Manufacturing GmbH Dalton @ maga.cl N°...
