Gardena 19000 Operator's Manual

Smart gateway
Hide thumbs Also See for 19000:

Advertisement

Table of Contents

See also: Operator's Manual
Art. 19000
EN
Operator's manual
smart Gateway

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 19000 and is the answer not in the manual?

Questions and answers

Related Manuals for Gardena 19000

Summary of Contents for Gardena 19000

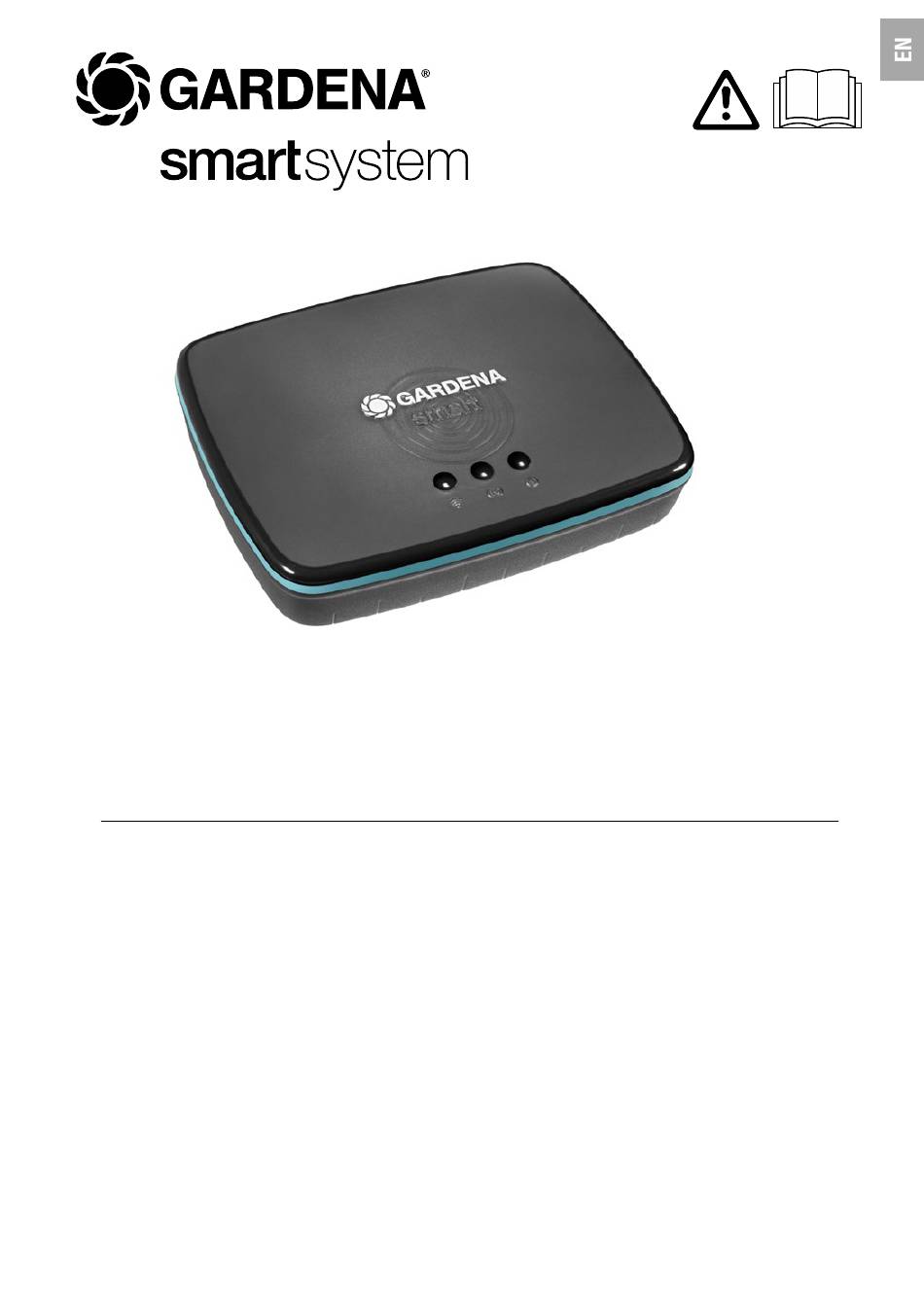

  • Page 1 Art. 19000 Operator’s manual smart Gateway...

  • Page 2: Table Of Contents

    GARDENA smart Gateway 1. SAFETY ..........
  • Page 3 Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Intended use: The GARDENA smart Gateway is intended for private use in domestic and hobby gardens for automatic control of smart system products by the GARDENA smart system App.

  • Page 4: Safety

    1. SAFETY Important! Avoid exposure to moisture and dust, Read the operator’s manual as well as sunlight and other forms of carefully before use and keep heat exposure. for future reference. The wireless transmission can be disrupted as a result of external influ- DANGER! ences such as electric motors or Risk of suffocation!

  • Page 5: Function

    2. FUNCTION LED-Display: Power-LED Connection-LED Internet-LED Internet­LED: Green: Connected with router and VPN Yellow: Hotspot mode – not connected with router Yellow flashing: Connected to mobile phone Red: Not connected Red flashing: Connected with router; not connected with VPN Connection­LED: Green flashing: Receiving data Yellow flashing: Sending data...

  • Page 6: Initial Operation

    3. INITIAL OPERATION Contents: – Gateway unit – Netzteil – Ethernet-cable To mount on the wall: The two screws (not supplied) for attaching the Gateway have to be screwed into place A horizontally 75 mm / B vertically 50 mm apart and the screw head diameter must not exceed 8 mm.
  • Page 7 Commissioning the smart Gateway: An Internet connection is required for installation of the Gateway. The Gateway can be connected to the Internet via LAN or Wi-Fi. 1. Connect the Gateway with the provided power supply unit. During the self-test, the Power LED lights up green for approx.
  • Page 8 LED may flash yellow. Once the Internet-LED and the Power-LED stay green, your Gateway is up to date. It can now be included it in the App. 2. Download the GARDENA smart system app from the Apple App Store or the Google Play Store.
  • Page 9 Connecting via Wi­Fi: The Gateway automatically provides a GARDENA hotspot network if it is not connected to the Internet. Once the Internet-LED turns and stays yellow, the hotspot network will be visible. The graphic below shows a typical network name.
  • Page 10 LED may flash yellow. Once the Internet-LED and the Power-LED stay green, your Gateway is up to date. It can now be included it in the App. 6. Download the GARDENA smart system app from the Apple App Store or the Google Play Store.
  • Page 11 Note: This hotspot network does not provide an Internet access. Some products will automatically ignore and disconnect from the GARDENA hotspot network. In this case you will have to disable that option on your product. Also, make sure JavaScript is activated and browser cookies are accepted, in order to display the page correctly.

  • Page 12: Operation

    4. OPERATION Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store.
  • Page 13 Factory Reset: The smart Gateway will be reset to the factory settings. 1. Disconnect the Gateway from the network. 2. Press and hold down the Reset key ; connect the Gateway to the network and wait until the Power-LED lights up yellow. 3.

  • Page 14: Maintenance

    5. MAINTENANCE To clean the Gateway: No caustic / abrasive cleaning agents should be used. v Clean Gateway with a damp cloth (do not use solvent). 6. STORAGE To put into storage: The product must be stored away from children. v Do not stow the product outdoors if not in use.

  • Page 15: Troubleshooting

    7. TROUBLESHOOTING NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

  • Page 16: Technical Data

    Weight EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19000) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safety­regulations...

  • Page 17: Service / Warranty

    If problems arise with this product, please contact our Service department. In the event of a warranty claim, please send the defective product together with a copy of the purchase receipt and a description of the defect, suffi- ciently stamped, to the GARDENA service address on the back page.
  • Page 18 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
  • Page 19 Autoput za Novi Sad bb # 8355 comuna Las Condes © GARDENA © GARDENA Phone: (+ 56) 2 202 4417 http : // www.gardena.com / fr Ateities pl. 77C 11273 Belgrade Manufacturing GmbH Manufacturing GmbH N° AZUR : 0 810 00 78 23...
