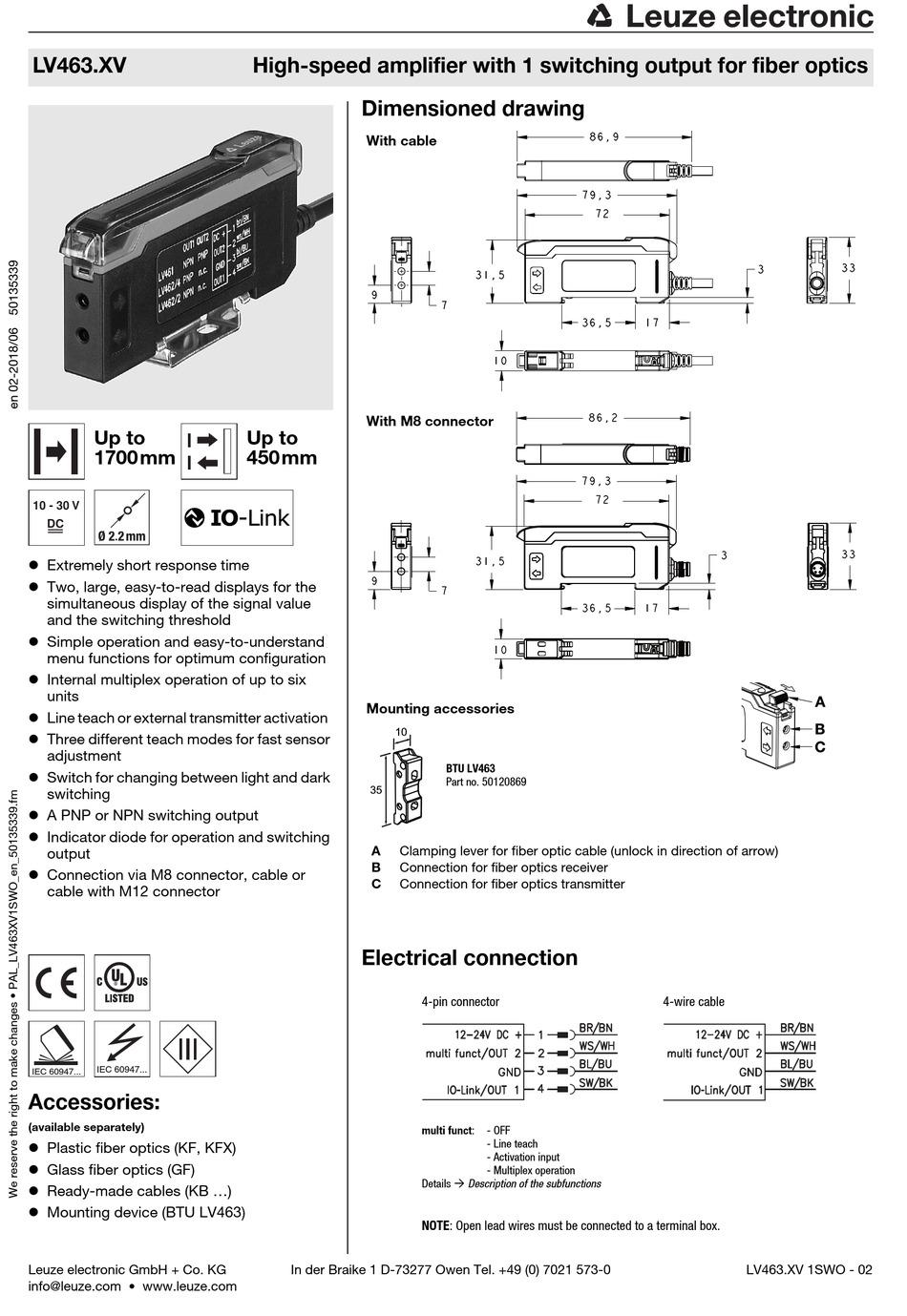

Leuze electronic LV463.XV Series Manual

LV463.XV
Up to
1700mm
10 - 30 V
DC
 Extremely short response time
 Two, large, easy-to-read displays for the
simultaneous display of the signal value
and the switching threshold
 Simple operation and easy-to-understand
menu functions for optimum configuration
 Internal multiplex operation of up to six
units
 Line teach or external transmitter activation
 Three different teach modes for fast sensor
adjustment
 Switch for changing between light and dark
switching
 A PNP or NPN switching output
 Indicator diode for operation and switching
output
 Connection via M8 connector, cable or
cable with M12 connector
IEC 60947...
IEC 60947...
Accessories:
(available separately)
 Plastic fiber optics (KF, KFX)
 Glass fiber optics (GF)
 Ready-made cables (KB ...)
 Mounting device (BTU LV463)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com
High-speed amplifier with 1 switching output for fiber optics
Dimensioned drawing
With cable
With M8 connector
Up to
450mm
Mounting accessories
10
35
A Clamping lever for fiber optic cable (unlock in direction of arrow)
B Connection for fiber optics receiver
C Connection for fiber optics transmitter
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
BTU LV463
Part no. 50120869
4-pin connector
multi funct: - OFF
- Line teach
- Activation input
- Multiplex operation
Details  Description of the subfunctions
NOTE: Open lead wires must be connected to a terminal box.
4-wire cable
LV463.XV 1SWO - 02
